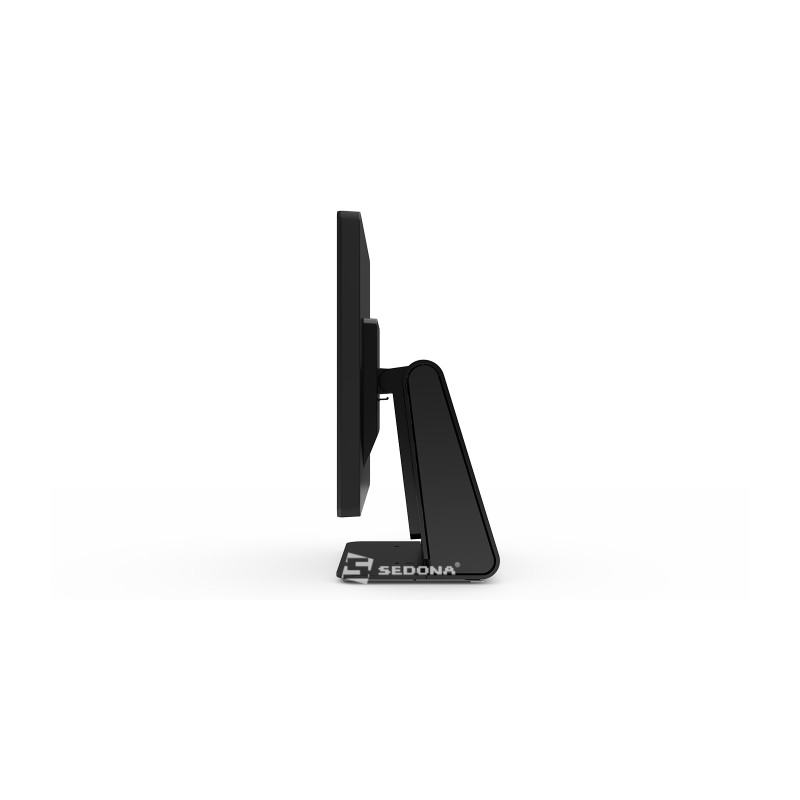

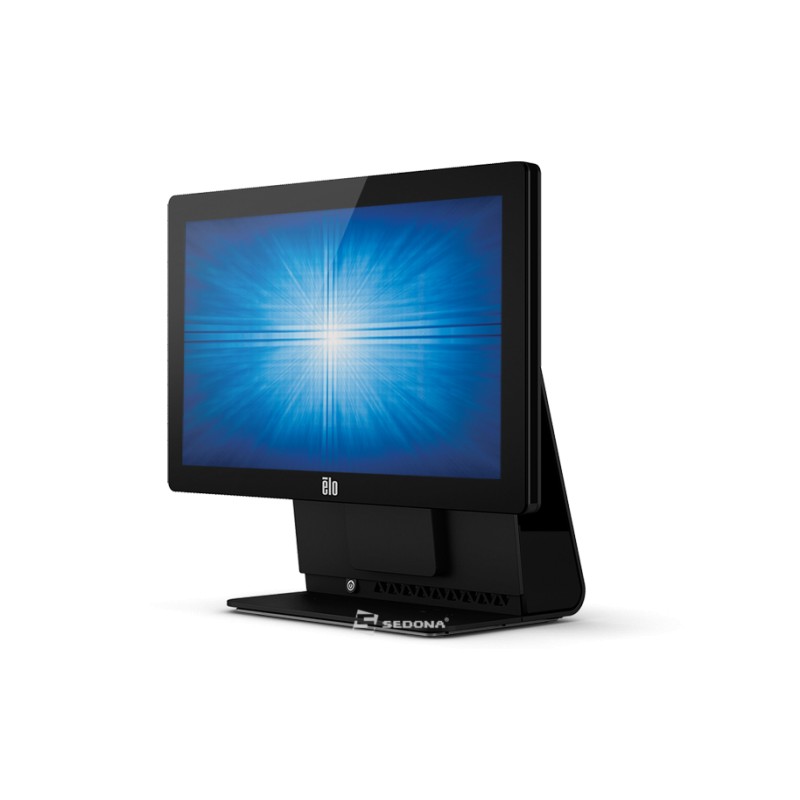

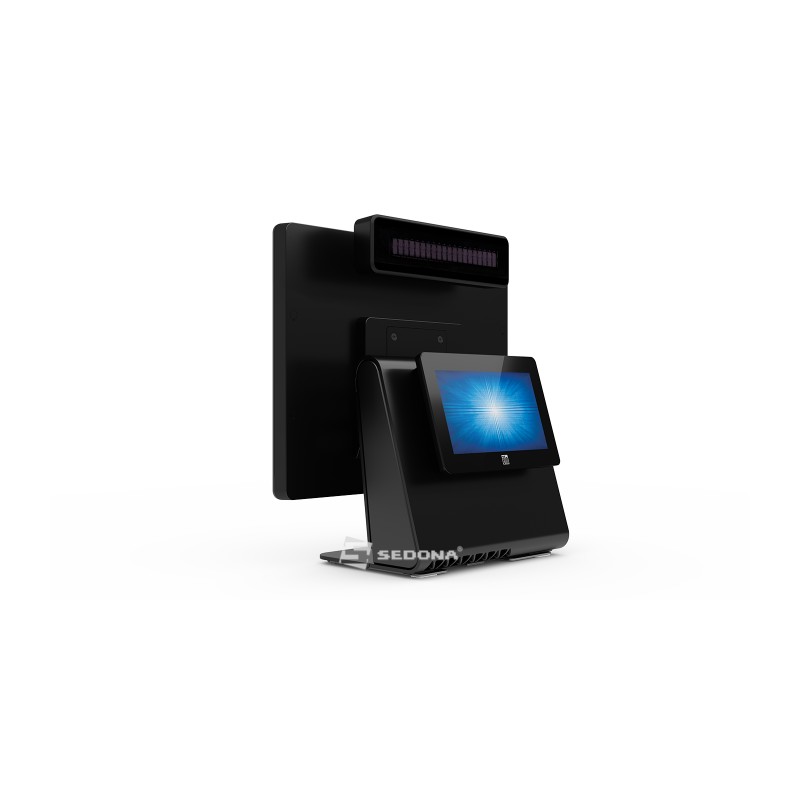

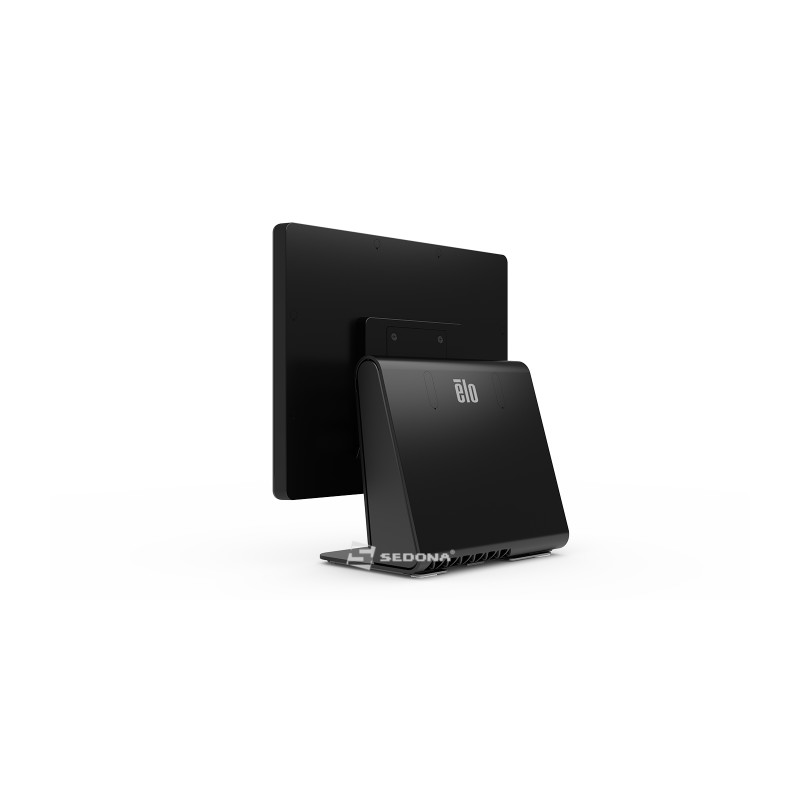

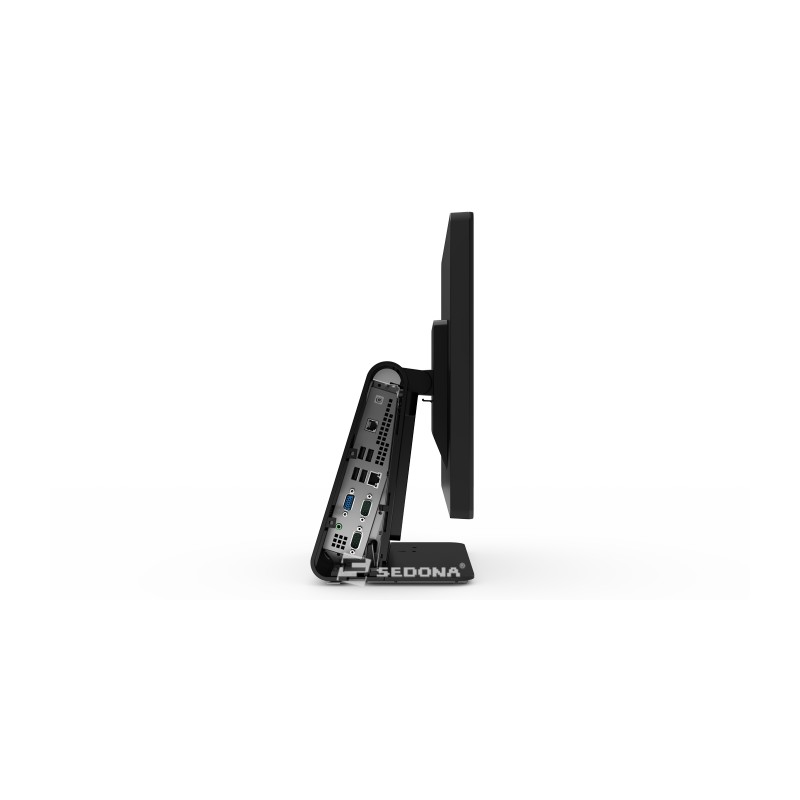

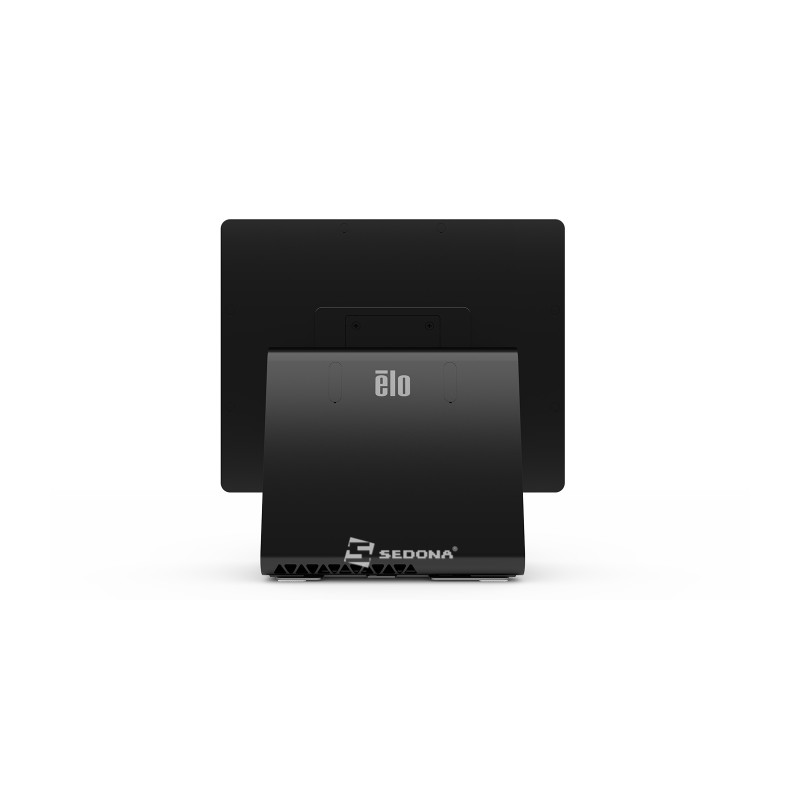

The Elo E-Series 15-inch (15E3) 4:3 touchscreen computer is a commercial-grade solution powered by Intel Celeron J1900 Quad-Core processor to provide top-notch performance in a compact form factor. With a rugged design and fan-less operation, the E-Series is ideally suited for use in any retail or hospitality environment.

Touch Technology & Capacity

5-Wire Resistive (AccuTouch®) - Single-Touch
PCAP (TouchPro™ Projected Capacitive) - 10 Touch

Touch Interface: USB

Processor: Intel Celeron J1900 Quad-Core Processor 2 GHz (up to 2.42 GHz) 2MB L2 Cache

Graphics: Intel HD Graphics

BIOS AMI

Memory (RAM): 4GB DDR3L SODIMM on 1 of 1 slot

Storage: 128GB 2.5” 7mm SATA SSD

Diagonal Size: 15'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio: 4:3

Active Area (mm): TouchPro PCAP: 309.1mm x 233.1mm; AccuTouch: 307.1mm x 231.1mm

Resolution:1024 x 768 @ 60Hz

Number of Colors: 262,000

Brightness (typical)

LCD panel: 350 nits
TouchPro PCAP: 315 nits
AccuTouch: 280 nits

Response Time-total (typical) :8 msec

Contrast Ratio 800:1

Viewing Angle: Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total

Connectivity:

·      USB Ports4 x USB 2.0

·      Serial Ports: 2 x Native DB9 RS-232 (standard)

·      Ethernet Port

·      1 x LAN RJ45 (Gigabit)

·      Cash Drawer Port: 1 x RJ12 (EPSON pinouts)

·      Video Out

·      VGA out

·      Audio Ports: 1 x 3.5mm line out

OS: NO

Power Consumption (Typical): 30W

Max Touchcomputer Dimensions With Stand:358mm x 357mm x 161mm

Max Touchcomputer Dimensions Without Stand: 358mm x 351mm x 156mm

Weight (with stand):5 kg

Shipping Weight (With stand): 7.2 kg

Operating Temperature: 0°C to 35°C

Storage Temperature: -20°C to 60°C

Humidity: Operating: 20% to 80% Storage: 5% to 95%

Color: Black

Warranty: 3-year
