Wouxun KG-UV9D Plus has all the standard features of KG-UV9D, plus cross-band repeat in broadband. It also has 6 additional menu items, most of them related to the broadband cross-band repeat configuration.

While the Plus looks almost identical to the 9D, upon closer inspection there are noticeable differences. The buttons on the UV9D keyboard are somewhat square, but the buttons on the 9D Plus are rounded. The speaker grille on the Plus is wider, and the buttons above are shorter and wider. The PTT button looks and feels different, with more pronounced play on the edges. The UV9D Plus chassis is also a bit thicker, measuring about a millimeter or more than the regular 9D.

However, both devices use the same battery, belt clip, desktop charger, case and other accessories, and use the same Kenwood K1 accessory connector, which means if you already have a 9D, add a 9D Plus and you won't feel the difference.

Experience the multi-band excitement with the Wouxun KG-UV9D PLUS! This portable dual-mode multi-module combines dual-band transmission, 7-band reception, and multiple feature options you won't find in a typical dual-band radio! The Wouxun KG-UV9D transmits on 4 W UHF and 5 W VHF with multiple power settings. Features an impressive 999 programmable memory channels with QT / DQT encoding and decoding, DTMF encoding / decoding and narrowband / wideband selection of 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz.

Dual Band Transmission:

144-146 MHz VHF (NBFM transmission)

430-440 MHz UHF (NBFM transmission)

7 band reception:
76-108MHz (FM Radio)
108-136MHz (AM RX)
136-180MHz (FM RX)
230-250MHz (FM RX)
350-400MHz (FM RX)
400-512MHz (FM RX)
700-985MHz (FM RX)

Functions:
Wouxun KG-UV9D PLUS works on several levels to maximize the experience! It has a real dual reception, so that you can simultaneously receive two signals on the same band or on other different bands. You can even transmit on one band while receiving on the other at the same time!

But the multifunctional operation does not end there. The Wouxun KG-UV9D PLUS has multiple scanning capabilities as well. Priority scan, channel group scan, these are just data. CTCSS / DCS scanning is a plus. Do you want a scanning feature that is very interesting? With a dual reception, Wouxun KG-UV9D PLUS can scan two bands at the same time. That means it should be multifunctional!

Of course, we cannot forget the multi-display. Originally introduced with the popular KG-UV8D, the large color screen is also a key feature of the Wouxun KG-UV9D PLUS and with some notable improvements. Of course, there is still plenty of space to display all the information necessary for the operation of a multifunctional radio on both bands at the same time. The display is also adjustable, with five brightness levels. Customize settings for viewing comfort while conserving battery power as needed. Wouxun KG-UV9D PLUS have maximum control!

Speaking of control, check out the lock mode. You can block only the keyboard, block the keyboard and encoders, block the keyboard and PTT or block them all. Multiple lock options let you decide how your radio can be accessed, keeping you in control.

Wouxun KG-UV9D PLUS is also loaded with other useful features/functions to be truly multifunctional! Three programmable keys, sub-frequency transmission settings, channel name editing and display, caller ID display, FM 76-108Mhz radio, SOS function, remote alarm, reverse frequency, VOX (Voice Operated Transmit) for hands-free operation free and a flashlight with high lighting are part of the package. And yes, just like the Wouxun 8D, the Wouxun KG-UV9D PLUS model has a timer!

The Wouxun KG-UV9D PLUS device comes with a 7.4V 2000mAh (14.8Wh) Li-Ion battery, belt clip, high gain antenna, stubby antenna, wrist strap, desktop charger, AC cable, user manual and a 1 year Wouxun warranty.

Wouxun KG-UV9D PLUS Features:

999 Memory Channels
Dual Band Transmit
144-146 MHz VHF (NBFM transmission)
430-440 MHz UHF (NBFM transmission)
7-Band Receiver
Crossband repeater
4/5 W (UHF/VHF) TX output power
Li-Ion Battery Pack
Rechargeable Battery Included
Battery Charger
FM Radio
SOS Feature
Memory Channel
Simultaneous Scanning on Twin Bands
Priority Scan
Dual Watch
Dual Receive
Busy Channel Lockout
Duplex Work Mode
Reverse Frequency Function
CTCSS/DCS Tones
CTCSS/DCS Tone Scan
Large Color Backlit LCD Display w/5 Level Brightness
Channel Name Edit and Display
Battery Meter
Low Battery Alert
Power Saver
Timeout Timer
VOX
Multiple Lock Modes (Keypad, Encoders/PTT/All
English Voice Prom

Drop-In Charge Capable

Audio Accessory Connector
Cloning Capable
PC Programmable (Requires Optional Cable)
LED Flashlight
Stop watch
DTMF Encode/Decode
Reset
One Year Manufacturer Warranty

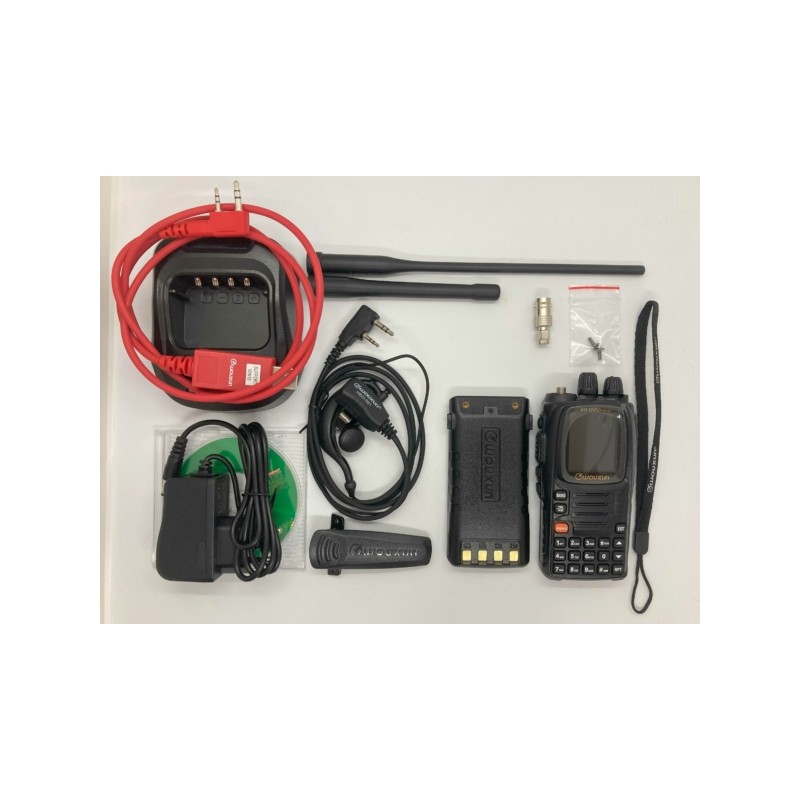

Content with Wouxun KG-UV9D PLUS:

Wouxun KG-UV9D Two Way Radio
Li-Ion Battery Pack
Multi-Band High Gain Antenna
Dual Band Stubby Antenna
Yawn
PCO-001 programming cable
Antenna adapter
Belt clip
Wrist strap
Charging dock
AC Adapter
Operational manual

Wouxun KG-UV9D PLUS Specifications:

Dimensions: 124.5mm × 61.49mm × 33.88mm
Weight: 490g
Antenna connector type: SMA Female (Standard)
Amateur radio stations can only transmit in the amateur radio bands with the factory settings. Frequency extension is for a fee.
