The new Yaesu FT5DE is a complete portable C4FM transceiver with superior operability and new and sophisticated functions.

Even in a compact body (W2.44" x D1.34" x H3.94"), the FT5DE offers a stable RF output power of 5W and achieves an audio power of 1W that has been tuned for quality sound .True Dual Band operations (V+V, U+U, U+V) are available with two independent receivers.Individual large LED indicators for band A and band B show communication status and modes instantly (C4FM or Analog) of each band.The new FT5DE supports digital C4FM simultaneously (C4FM/C4FM standby).

With rubber protection on the corner of the main body, Yaesu FT5DE has a robust and shock-resistant construction. The degree of water resistance is IPX7. The comfortable size and shape of the fully flat rear body provides an excellent grip for the radio operator.

A high-resolution display highlights the frequency of the operational band. The color of the operating band frequency can be selected from white, blue or red. Three (3) keys on the touch panel and seven (7) operating keys under the display offer intuitive operability.

The new TOUCH & GO function is convenient to immediately start communications on a frequently used frequency. By pressing and holding the "PMG" key, the frequency on the current display is recorded in the Primary Memory Group. After recording, pressing the "PMG" key will display the reception status of the recorded frequencies in the form of bars on a graph (activity monitor). By simply touching the displayed bar, the user can instantly recall the respective frequency. (TOUCH & GO operation)

The Band Scope function monitors in real time up to 79 displayed channels that are centered around the current VFO frequency. The center frequency can be adjusted using the adjustment button or by touching and moving the frequency of a displayed channel bar.

The already popular features of C4FM digital communications such as automatic mode selector (AMS), Digital Group Identification (DG-ID) operation and intelligent navigation are also available in the new Yaesu FT5DE transceiver.

Yaesu FT5DE also supports the WiRES-X Portable Digital Node function. A portable digital node can be easily set up with the new FT5DE, a laptop, PC connected to the Internet and the optional SCU-39 cable kit.

The new Quick Detach Holster (SHB-26) is included in the FT5DE package as a supplied accessory, which allows attaching and detaching the transceiver with one touch while wearing the holster on your belt.

Other features of the Yaesu FT5DE digital C4FM dual band station:

Wireless hands-free operation using the optional Bluetooth® headset (SSM-BT10)
VOX function
Automatic Memory Grouping (MAG)
VFO Band Jump function
wide range RX coverage with continuous reception from 0.5MHz-999.99MHz (A-band) & 108MHz-580MHz (B-band)
Built-in GPS receiver of high sensitivity with 66 channels, 1200/9600bps
APRS data modem
Standard 2200mAh High-Capacity Li-ion (SBR-14LI) battery set
Voice recording function
Simultaneous reception of AM/FM broadcasts while monitoring two frequency channels
Micro SD card slot
Intuitive and smooth operation ensured by the Touch Panel Display
C4FM/C4FM Simultaneous monitoring
Robust construction, water resistance, IPX7
Broadband reception
The band includes 79 channels
Recording function
Snapshot Feature (Transmission Reception Images)
Memories: 1000
Accepted bands: 2m 70cm
Connector: SMA socket

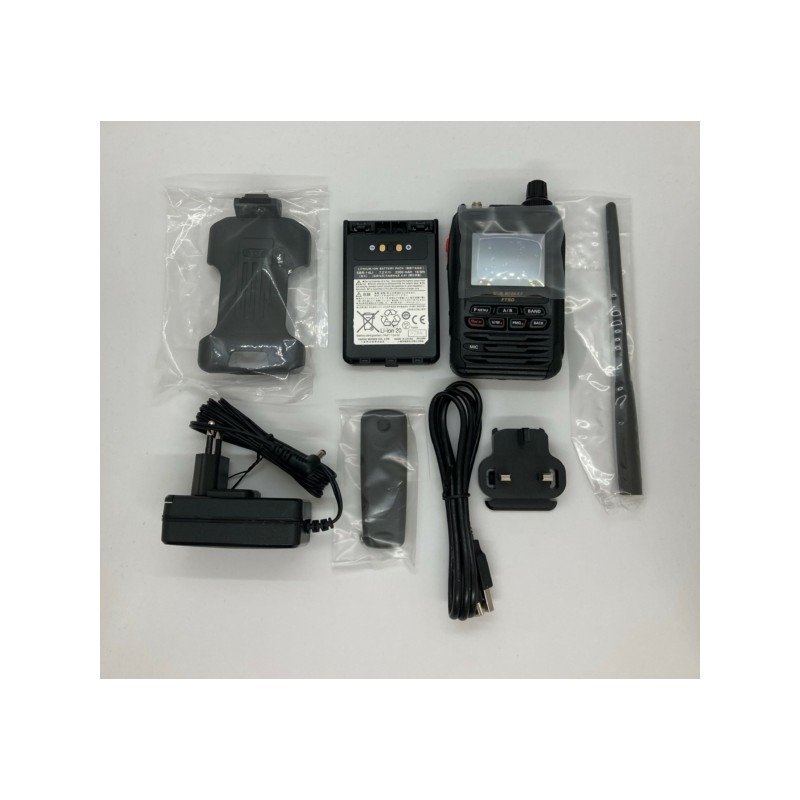

The box of the Yaesu FT5DE digital C4FM dual band portable station contains:

1pc Yaesu FT-5DE
1 pc Dual band antenna
1 pc SBR-14LI 2200mAh LiIon battery
1 pc SAD-25 Charger
1 pc SHB-13 Belt clip
1pc SHB-26 Quick Release Holster
1pc USB cable
1 pc user manual

The factory default setting for amateur radio stations does not cover transmission outside the amateur bands.
