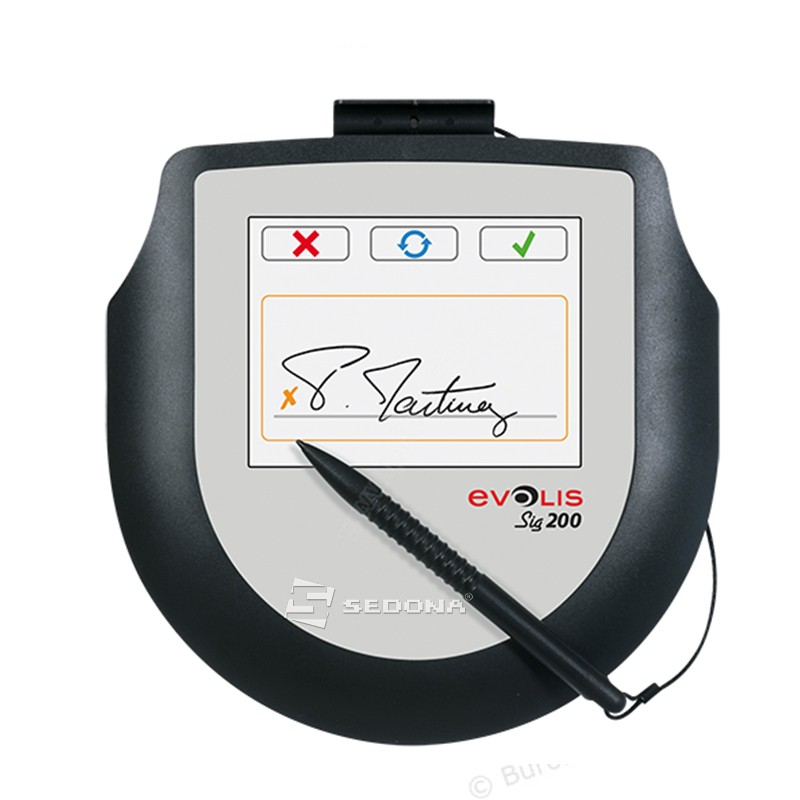

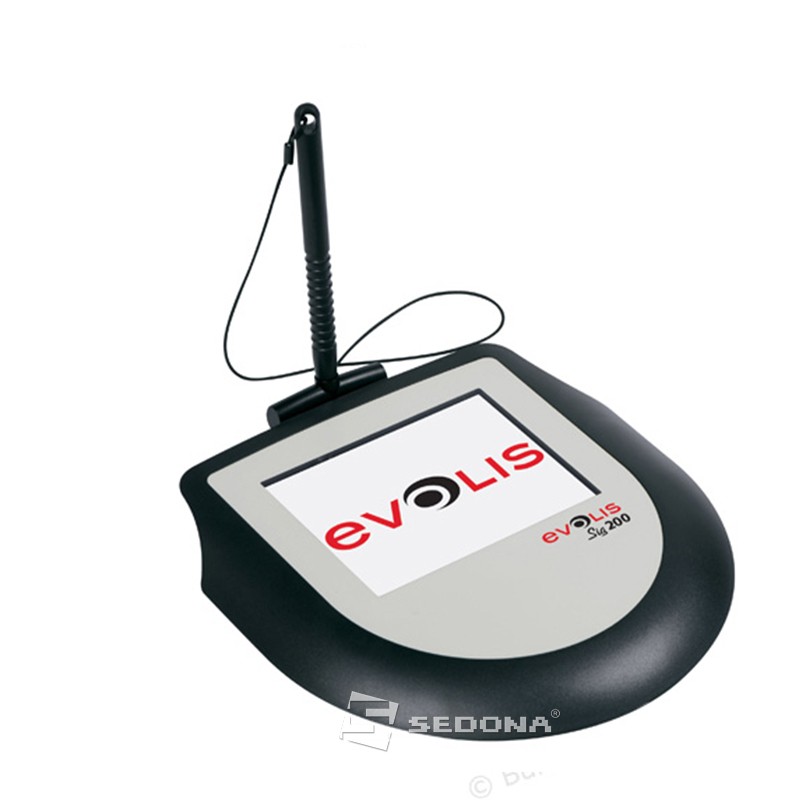

Sig200 signature pads can be used with a computer and an Evolis card printer to include a signature in an ID card design and improve card security.

Display

Diagonal: 5’’ (12,7 cm)

Display: Color

Resolution: 640 x 480 pixels

Pixel size: 0.0529 x 0.1587 mm

2 LED status indicators

Touch sensitive screen

• Active signing area: 95 x 47 mm (Sig100) / 100 x 75 mm (Sig200)
• Linearity: +/- 1,5 % in x, y and z directions
• 1024 pressure levels

Digitization

External sampling rate: 500 samples per second, 4 axes (x, y, time and pressure)
Internal sampling rate: 6000 samples per second
Resolution: 1040 dpi not interpolated

Interfaces

Full-speed (12 Mbps) USB 2.0 HID (Human Interface Device) compatible with earlier versions
Plug and Play: no special drivers required

Security

AES encryption of data transfer between the pad and the computer
RSA signature and RSA encryption in the pad
Unique internal serial number

Software

Compatible with:

• Windows™ XP 32/64, W7 32/64, W8 32/64, Server 2003, 2008
• Linux

Free SDK available upon request:

• Screen configuration and customization (logos, images, buttons)
• Definition of signature area
• Signature capture in various formats
• RSA-signing functionality in the pad
• Documentation available on demand

Free Twain driver available upon request

Optional signoSign/2 software for creating and signing secure PDF documents

Memory (SIG200)

Internal memory for slideshows: up to 10 pictures

Certifications and statement of compliance

• CE, FCC
• RoHS
• DIN EN 60950-1, DIN EN 61000-6-1, DIN EN 61000-6-3

Power

Via USB cable, no external power supply

Operating environment

• Operating temperature range: -10° / 60° C (14° / 140° F)
• Storage temperature range: -25° / 70° C (-13° / 158° F)
• Humidity: 90% non condensing
• Atmospheric pressure: > 0.7 bar

Packaging content

• Signature pad
• Captive USB cable (1.5 m)
• Stylus (standard)
• Vertical stylus holder (Sig 200)

Size and weight

Dimensions (H x W x D): 15 x 191 x 180 mm (0.59’ x 7.52’’ x 7.08’’)

Weight: 356 g (0.79 lbs)

Warranty: 2 years
