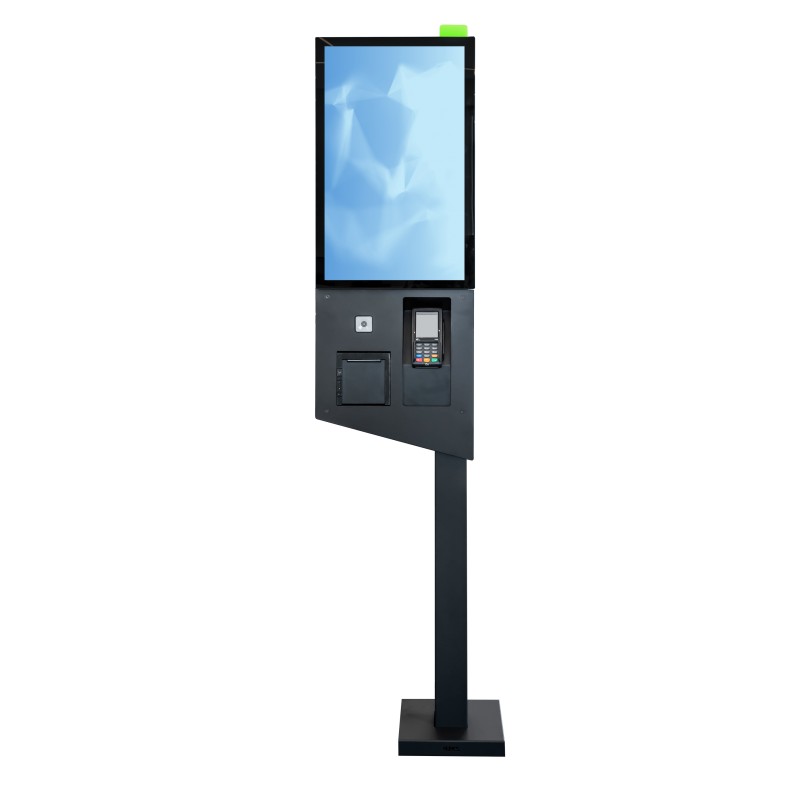

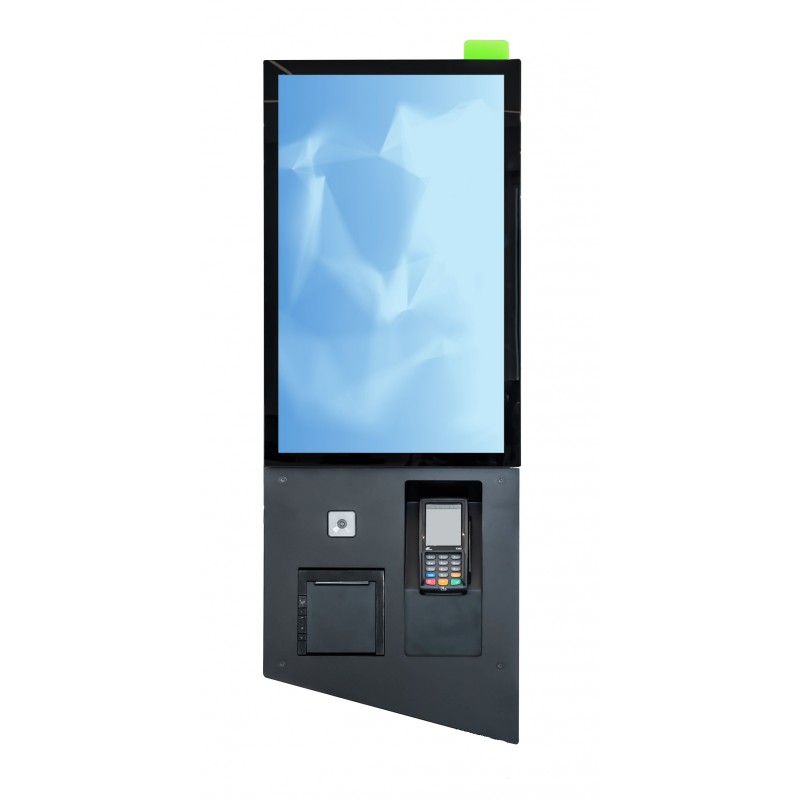

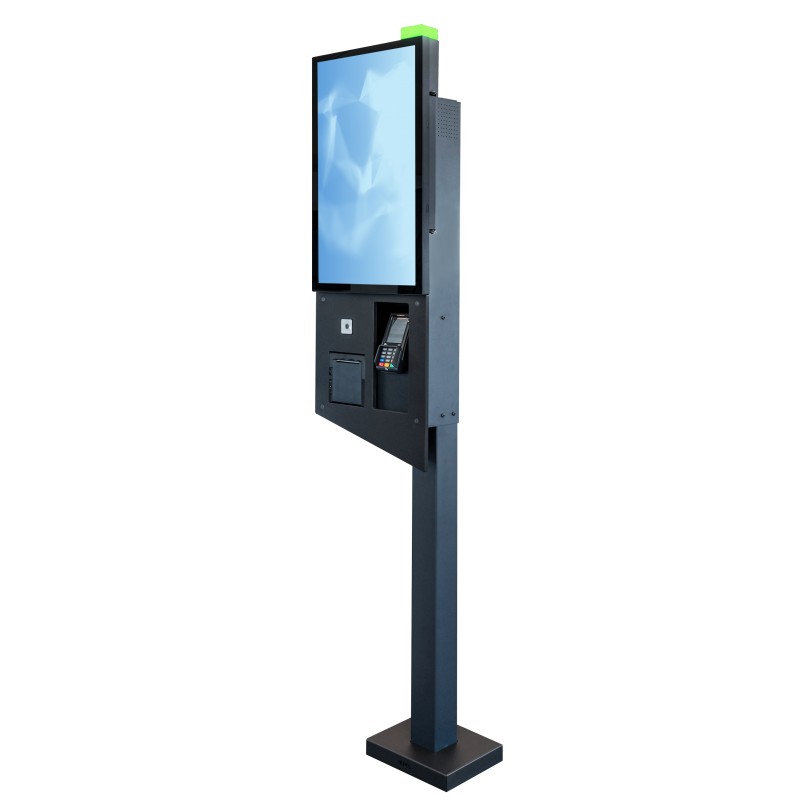

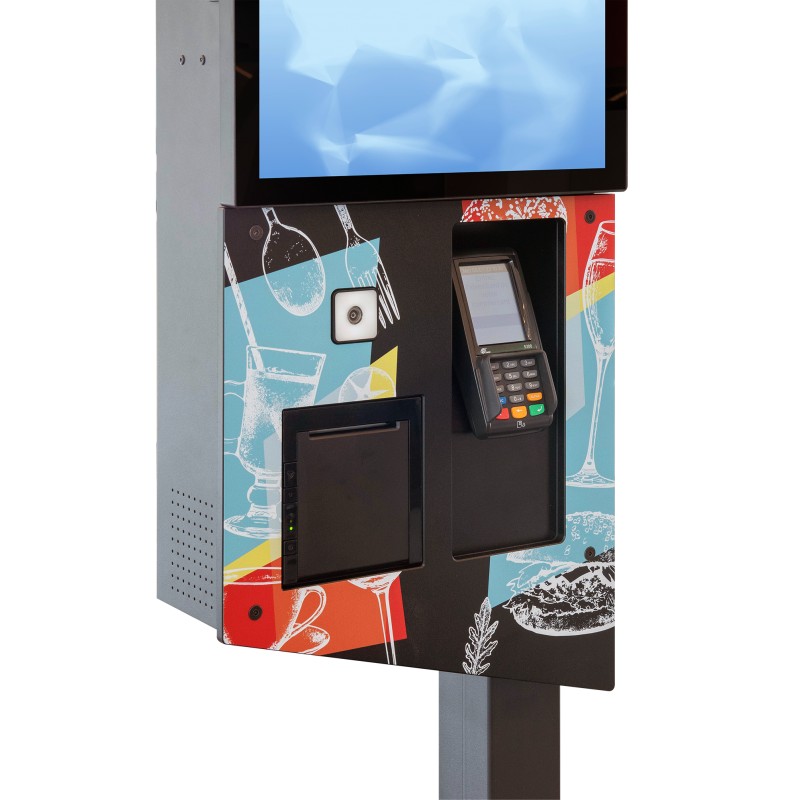

KWARTZ is a multifunctional interactive kiosk developed by AURES for the fast food industry. Available as a wall-mounted or freestanding model, its design is particularly adapted to the food service sector (e.g. takeaway, fast food, etc.).

KWARTZ integrates a 27” YUNO touch system available in portrait mode, a thermal printer and a Honeywell 2D barcode reader. It comes with Windows 10, a Celeron 3965 processor and in wall-mounted mode. The payment terminal stand and the system stand are optional.

Processor: Celeron 3965U (default variant)/ i3 -7100U
Memory: DDR4 SODIMM 8 Go
Operating system: Windows 10
SSD: 2.5'' 128 GB (2 slots)
LCD screen: 27'' TFT Full HD (1920 x 1080)
Touch screen: Flat and borderless PCAP panel. Touch 10 points
Scanner: Honeywell HF 521 USB
Thermal printer: ODP 444 or EPSON TMM 30
Serial: 4 ports (+ optional 5/12 V power supply for COM3 / COM4)
USB: 4 x USB 2.0 + 1 USB 3.0 (for Celeron) or 4 x USB 2.0 + 2 USB 3.0 (i5 & i3)
LAN: 10/100/1000 Base-T
Ethernet: Ethernet NETGEAR 1GB switch
EMC: CE EMC Directive 2014/30 / EU (class B)
Safety: CE BT Directive 2014/35 / EU
Operating temperature: 5 - 35 ° C
Front panel: splash and dust resistant (IP54)
Colors: black
Dimensions: (W x D x H cm): 38.5 x 16.2 x 111.9 mm (wall mounting)
Weight: 28 kg (wall mounting)

OPTIONAL:
- support for Ingenico Lane 5000 Payment Terminal (possibility of other payment terminal models)
- support with foot for the system
