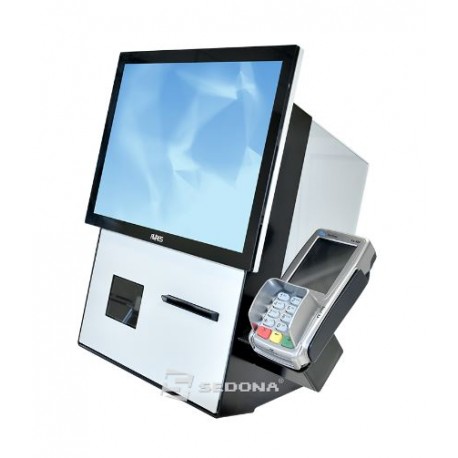

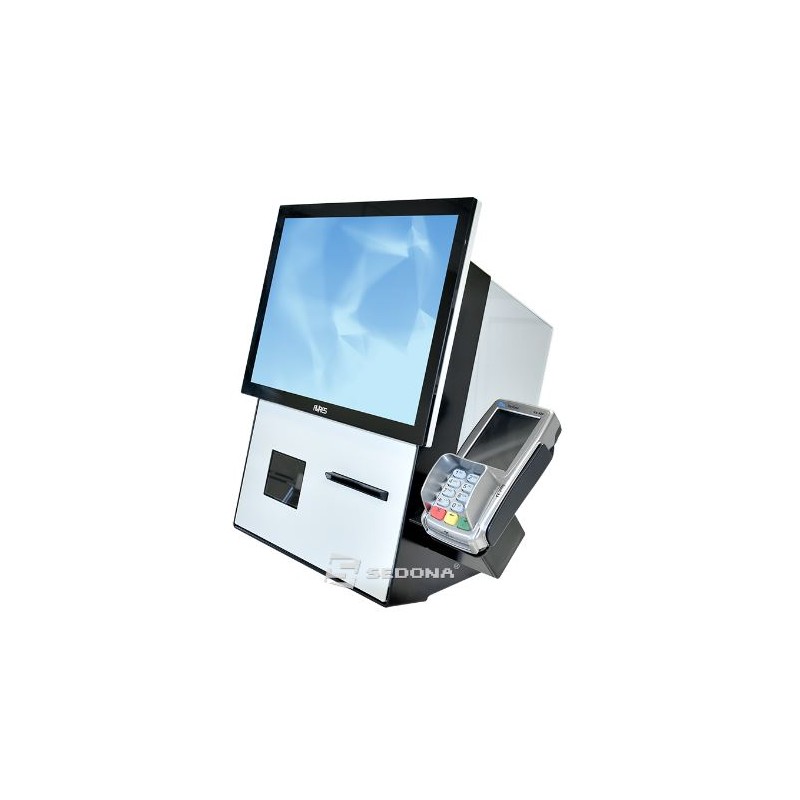

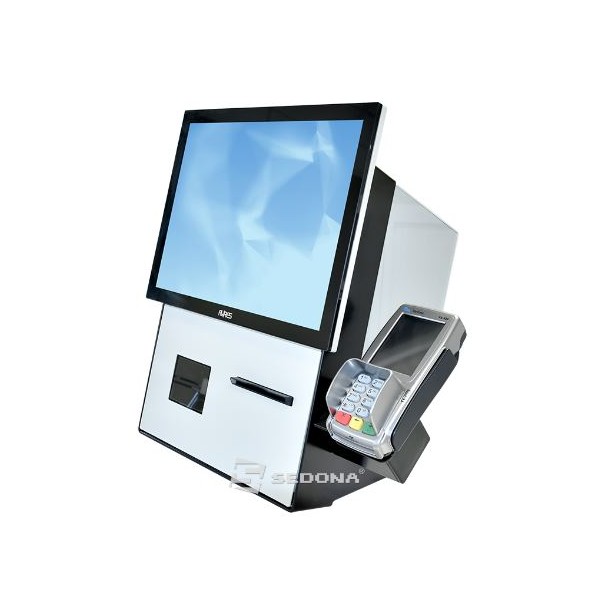

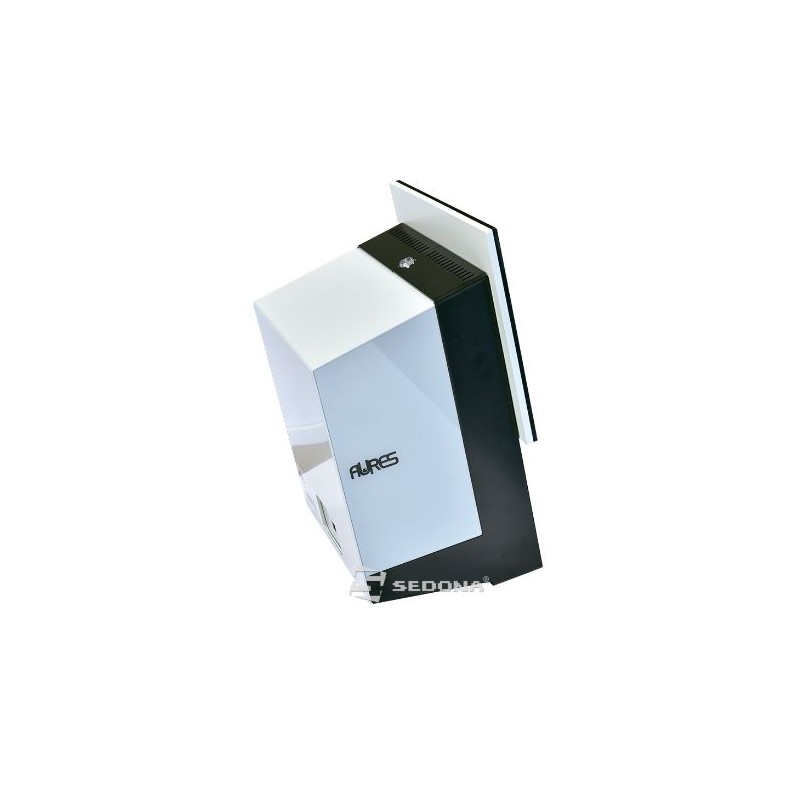

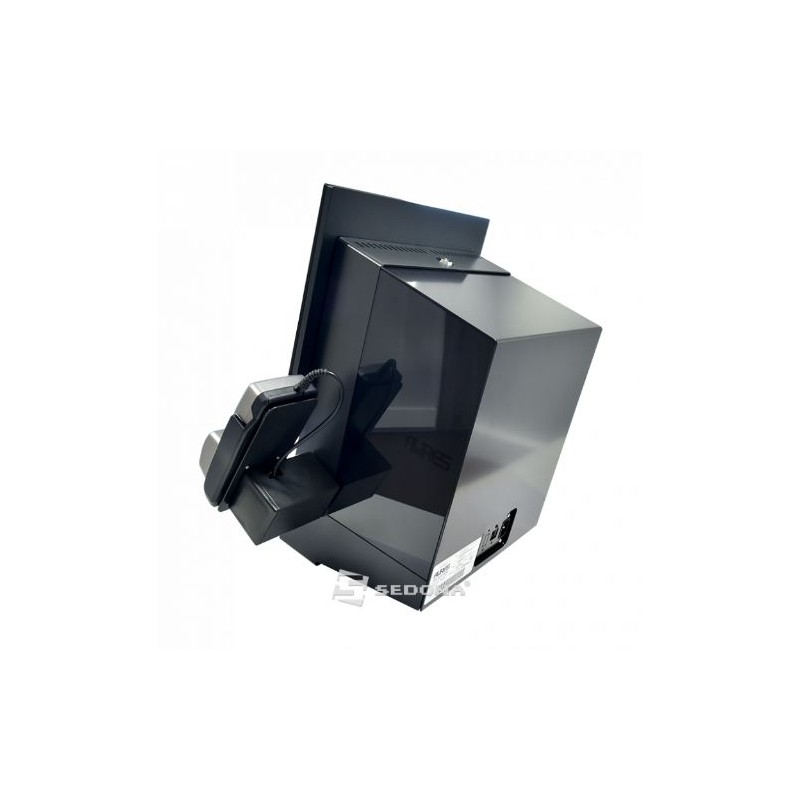

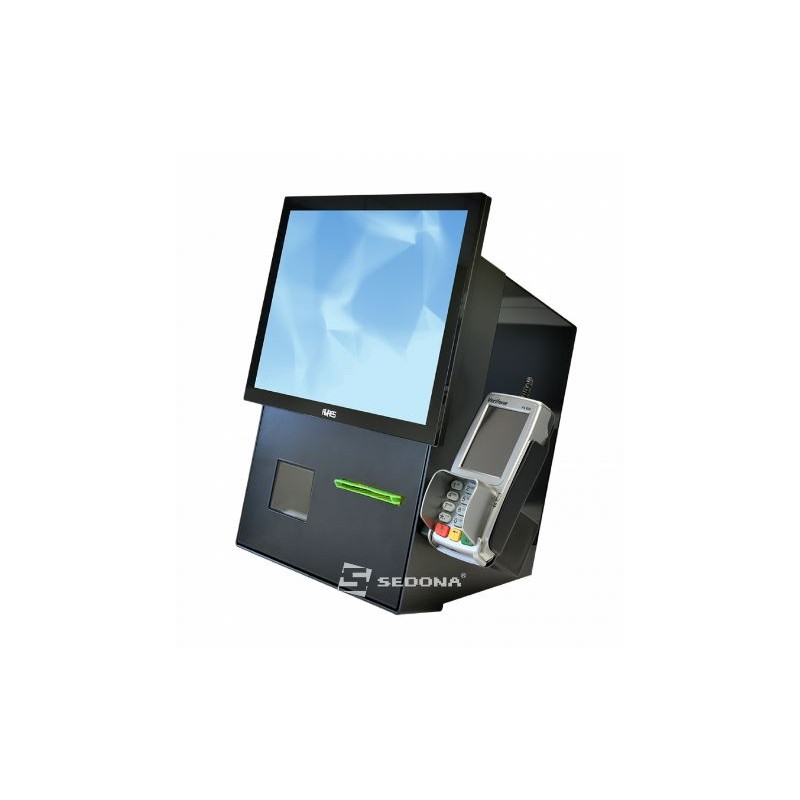

JAZZSCO is the KIOSK version (self-check-out) of the JAZZ concept; based on the same technologies, components and sub-systems as the POS terminal of the same family, this kiosk displays clean lines and an exclusive compact AURES design. JAZZSCO integrates a powerful system with a 15” touch screen, 140 mm ticket printer and a Honeywell 2D barcode scanner.

Processor: Intel Bay Trail Celeron J1900 (default) / Intel Skylake i3-6100U / Intel Kaby Lake i5-7300U

RAM Memory: 4 GB DDR3L SODIMM (up to 8GB for J1900 and up to 16GB for i3 and i5)

Graphic memory: Intel HD Graphics Core

Operating system: Windows 10 included

SSD: 2 slots M.2 SSD , 1 x 128GB in standard

LCD: 15” TFT 1024x768

Touch panel: Slim and edgeless, projective capacitive technology (multitouch)

Brightness: 450 cd/m2

Serial: 2 x ports (1 x 5V power supply)

USB: 6 x USB 3.0 ports

2 x USB-C (2 on the side)

(one for the motherboard and the processor + one available)

LAN: 10/100/1000 Base-T

Audio: Integrated loud speaker

Power supply: External -/+19V 65W

PRINTER VKP80-III

Roll holder: Ø 140 x 80 x 2 mm (external)

Capacity: 250 m

SCANNER HONEYWELL CM5680 - USB

2D: imager module very compact, high performance

Buzzer: yes

EMC: CE Directive CEM 2014/30/EU (Class B)

Security: CE Directive BT 2014/35/EU (+CB Report)

Operating temperature: 5 - 35° C

Front panel: Splashproof & Dust Resistant

Colour: White or black (black in standard, white optional)

Dimensions (L x D x H): 34 x 28 x 42.2 cm

Weight: 23 kg approximately

OPTIONALS:

• Stand for Payment terminal Ingenico LANE 5000/Verifone P400
