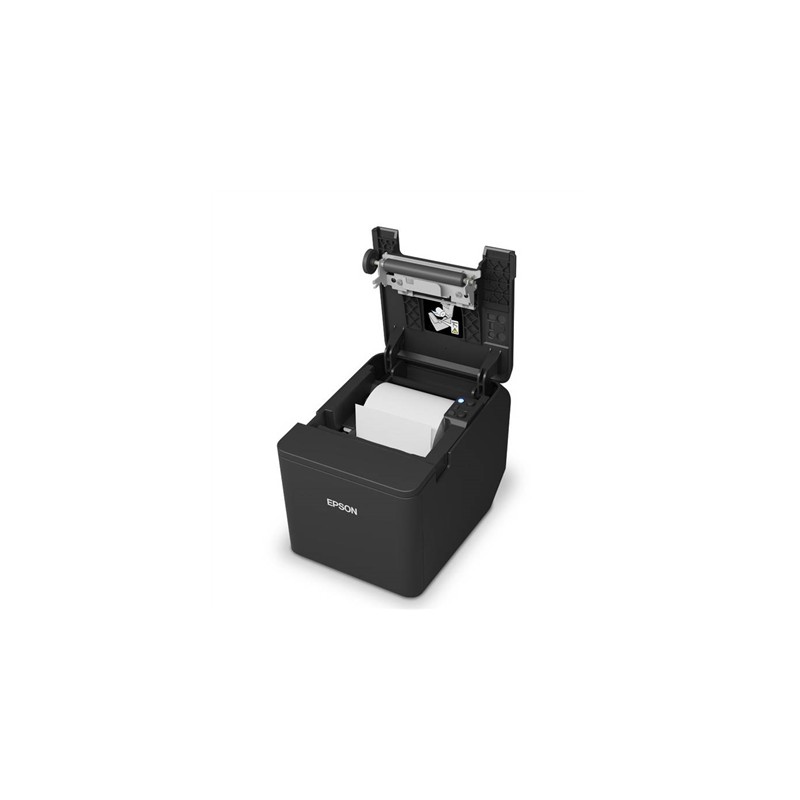

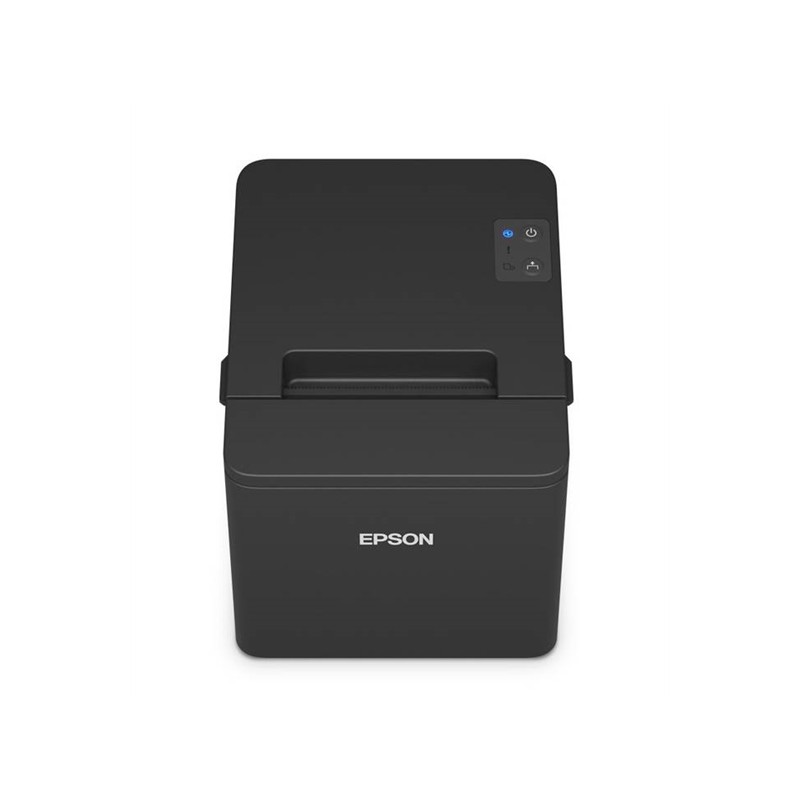

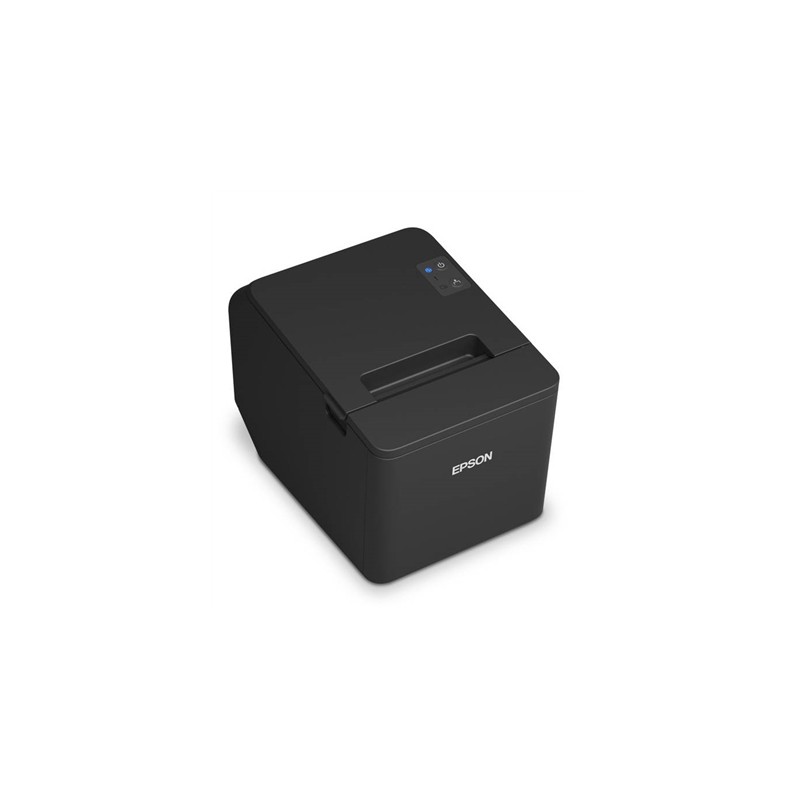

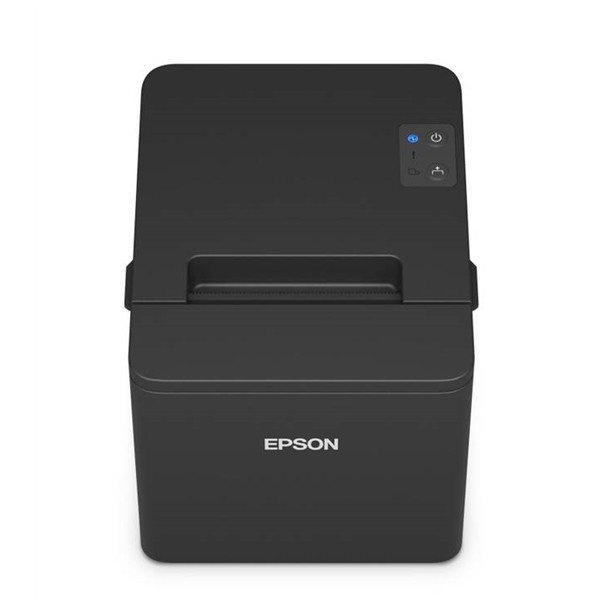

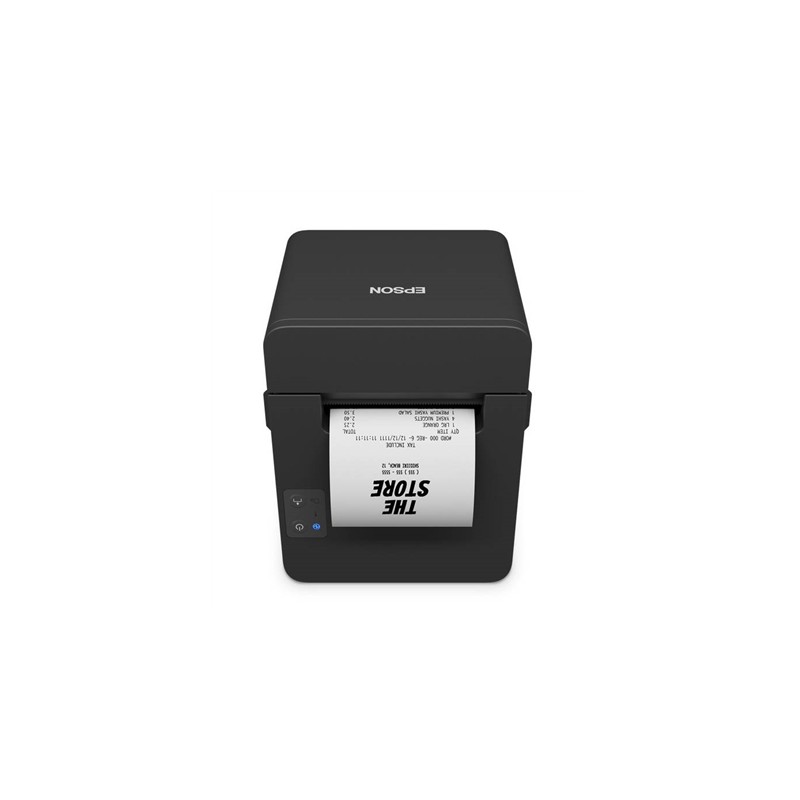

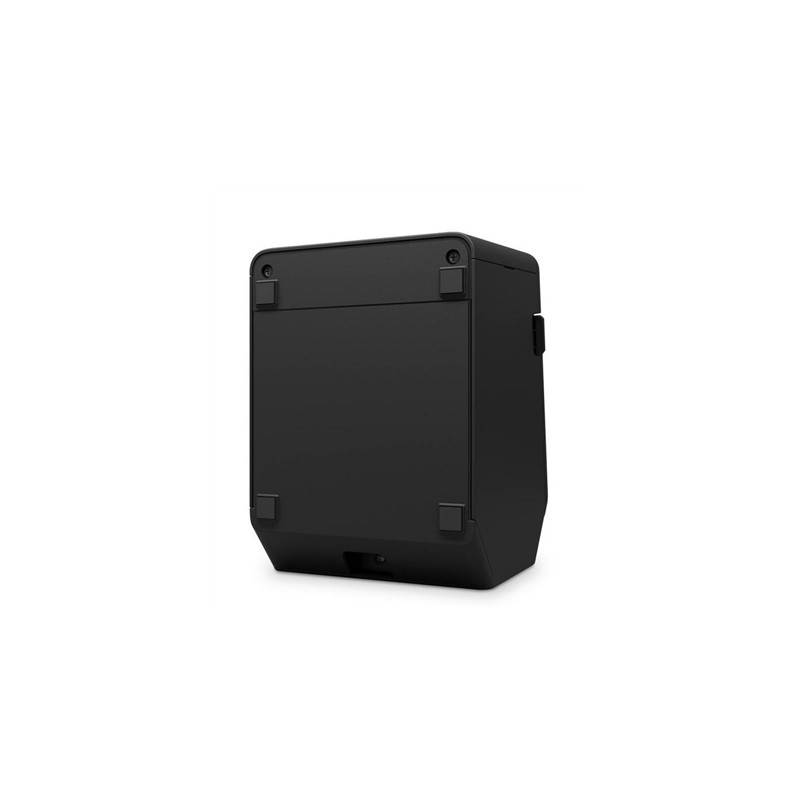

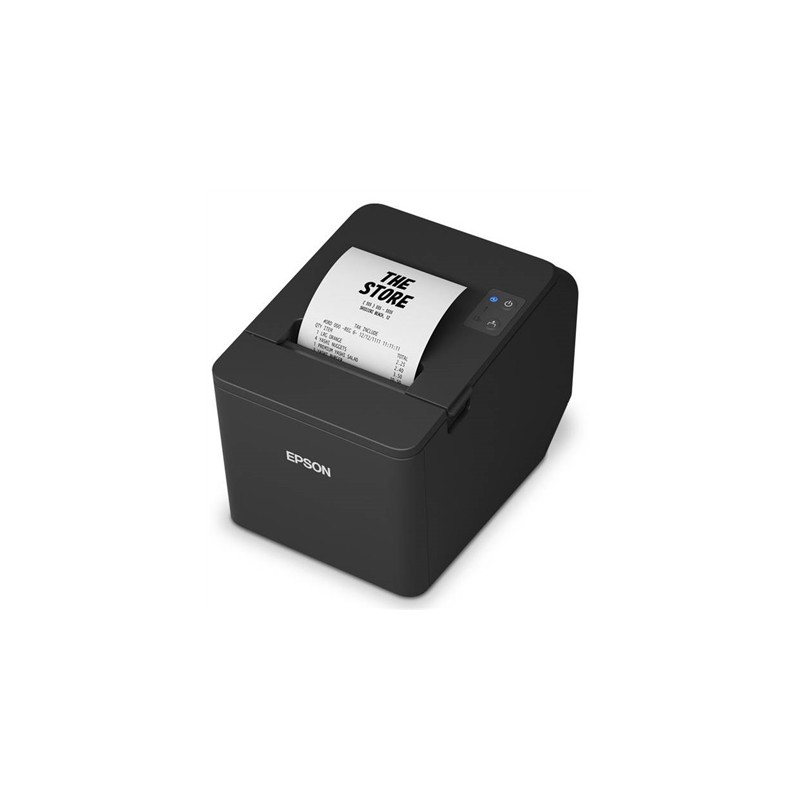

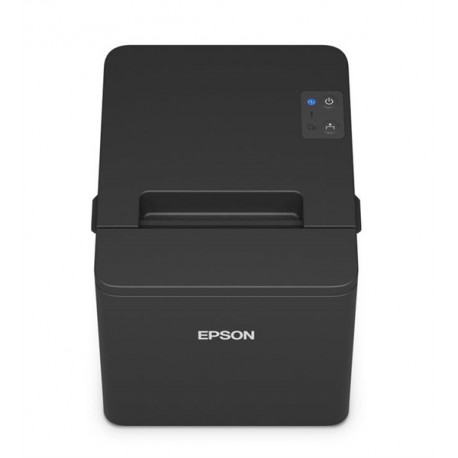

The Epson TM-T20IV is a reliable and affordable thermal receipt printer, ideal for modern POS and mPOS systems. As the successor to the popular TM-T20III, it delivers high performance, enhanced connectivity, and efficient paper usage in a sleek, compact design.

With a printing speed of up to 250 mm/sec. and an automatic paper reduction feature, it ensures cost-effective operation and reduced paper consumption.

Print Method: Direct thermal
Interfaces: Dual Interface version: USB Type-B + RS232 (D-Sub 25-pins)

Print Speed: 250 mm/sec
Print Resolution: 203 DPI
Character Sets: 95 alphanumeric, 18 international, 128 x 43 graphic
Fonts: 9 x 17 and 12 x 24 dots/character
Column Capacity:

• 80 mm paper: up to 64 columns

• 58 mm paper: up to 46 columns

Paper Dimensions:

• 80 mm: 79.5 ± 0.5 mm width, max. roll diameter 83 mm

• 58 mm: 57.5 ± 0.5 mm width, max. roll diameter 83 mm
  Paper Thickness: 53 – 75 µm

Supported Barcodes: UPC-A/E, EAN-13/8 (JAN), CODE39, CODE93, CODE128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar, Composite Symbologies

Data Buffer Memory: Up to 128 KB
Auto Cutter Lifespan: Up to 2 million cuts
Reliability:

• MTBF: 360,000 hours

• MCBF: 60 million lines

Compatible Operating Systems: Windows, iOS, Android, Linux, MacOS
Epson ePOS Technology: Supports direct printing from mobile devices and web-based applications

Dimensions: 140 x 199 x 146 mm
Weight: 1.7 kg
Color: Epson Black
Additional Features:

• Drivers for APD, OPOS, JavaPOS, Linux CUPS, MacOS

• Monitoring and configuration tools via Epson Net Config

• Low standby power consumption (~0.96 W)
