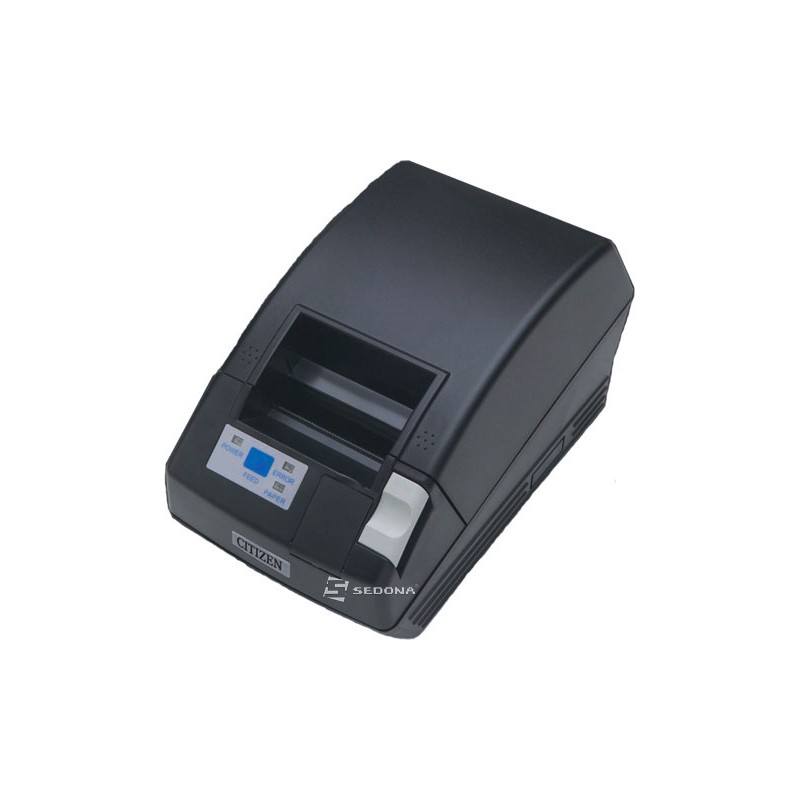

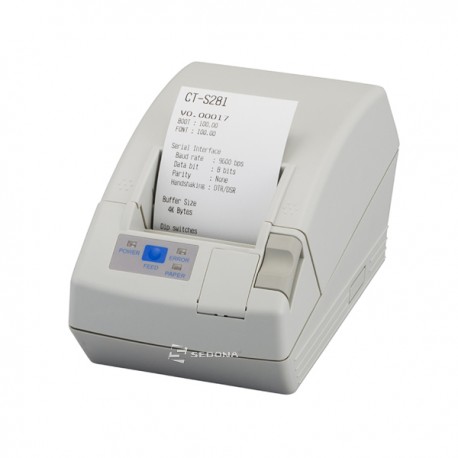

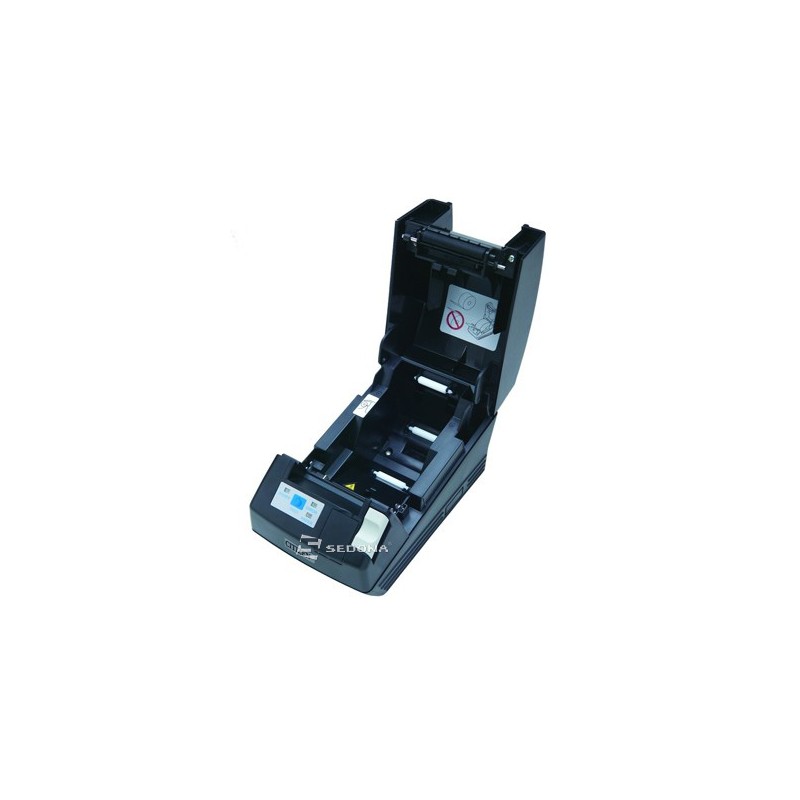

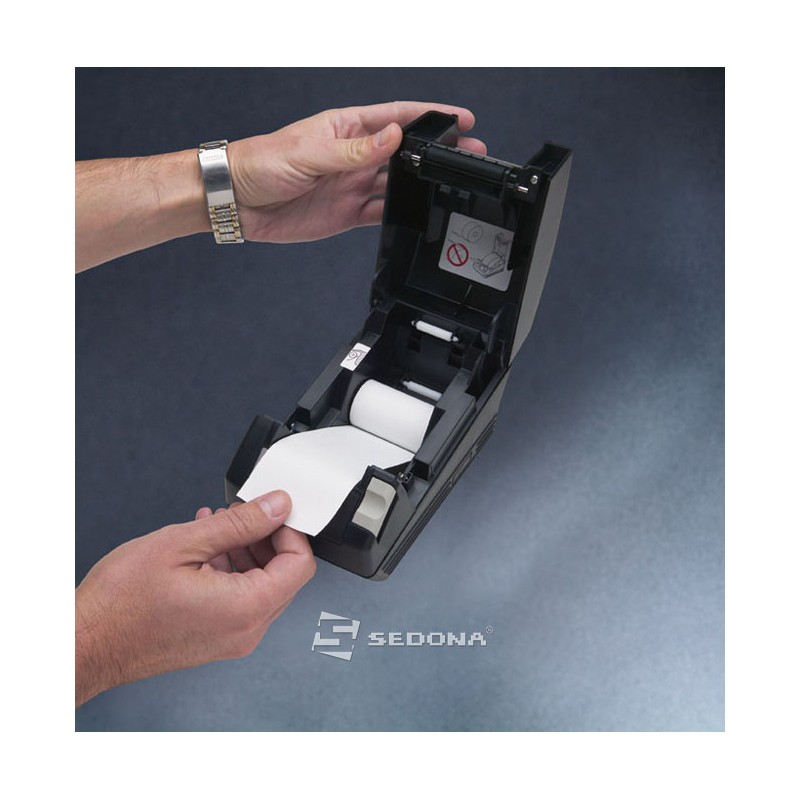

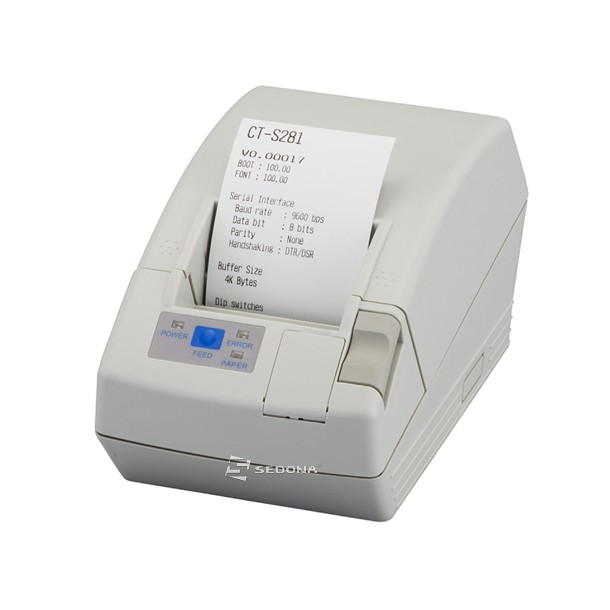

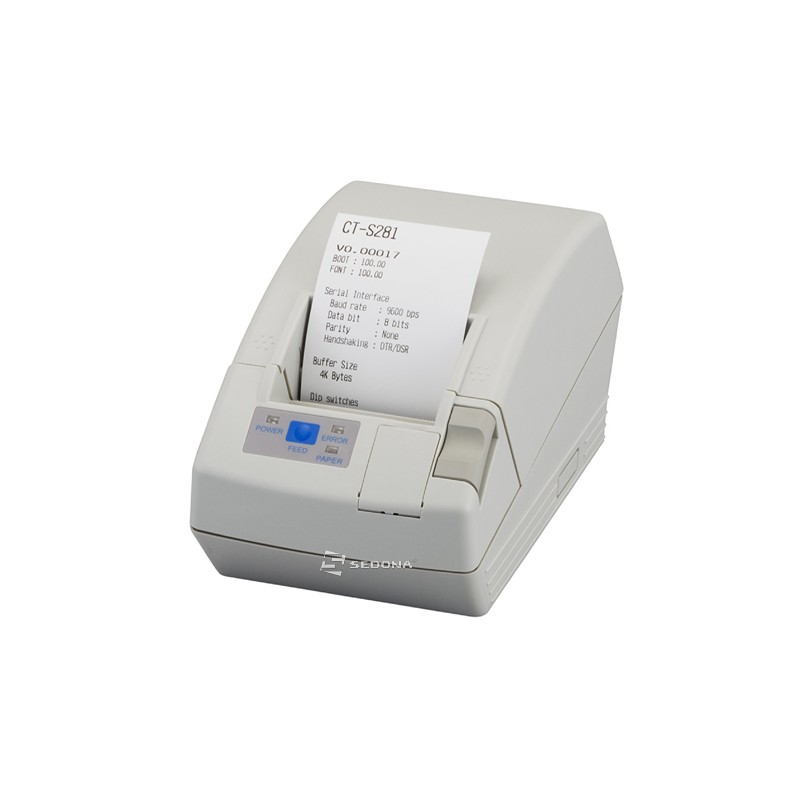

The CT-S281 is a lightweight and easy to use printer. Ideal for printing receipts, 2D and QR bar codes, this robust unit is simple to use, and features an integrated automatic cutter, capable of full or partial cuts. Other features include fast drop-in paper loading, flash memory for storing logos and a long life thermal print head, rated for at least 50km.

Printing Method: Line thermal dot print method

Print Width: 48mm/384 dots

Dot Density: 8 (horizontal) X 8 (vertical) dots/mm (203 dpi)

Print Speed: 80mm/sec.

Number of Columns: Font A: 32 columns; 12 x 24 dots horizontal and vertical

Font B: 42 columns; 9 x 24 dots

Font C: 48 columns; 8 x 16 dots

Character Size: Font A: 1.50 x 3.00mm, Font B: 1.13 x 3.00mm, Font C: 1.00 x 2.00mm

Character type: Alphanumeric, International, PC437, 850, 852, 857, 858, 860, 863, 864, 865,

866, WPC1252, Katakana, Thai code 18

User-defined Logo/Characters User-defined characters and logos can be registered in flash memory.

Barcode Types: UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR,

CODE 93, PDF417, QRCODE

Line Feed Pitch: 4.23 mm (1/16 inch) User selectable

Paper Roll Thermal paper roll: 58mm x 83mm OD

Paper thickness: 0.06 - 0.1mm

Auto paper cutter Method: Guillotine, full or partial cut

Interface USB

Input Buffer: 4k bytes/45 bytes

Supply Voltage: DC 8.5V±5%

Power Consumption Standby: Approx. 2W, Printing: Approx. 18W (Approx. 26W max.)

AC Adapter Specifications Rated input: AC 100-240V, 50/60Hz

Rated output: DC 8.5V, 3A

Weight Approx. 630g

Outside Dimensions (W x D x H): 106 x 180 x 105mm

Environment Operation Temperature: 5-40 C°, Humidity 10-85 RH% (no condensation)

Storage Temperature: -20 to 60 C°, Humidity 10-90 RH% (no condensation)

Reliability Pulse Resistance: 1 x 108 pulses (printing rate 12.5%)

Wear Resistance: 50km (normal temperature/humidity with recommended paper used)

Auto Cutter: 1 million cuts

Safety Standards: UL, C-UL, FCC Class B, TUV, GS, CE marking

Warranty: 2 years
