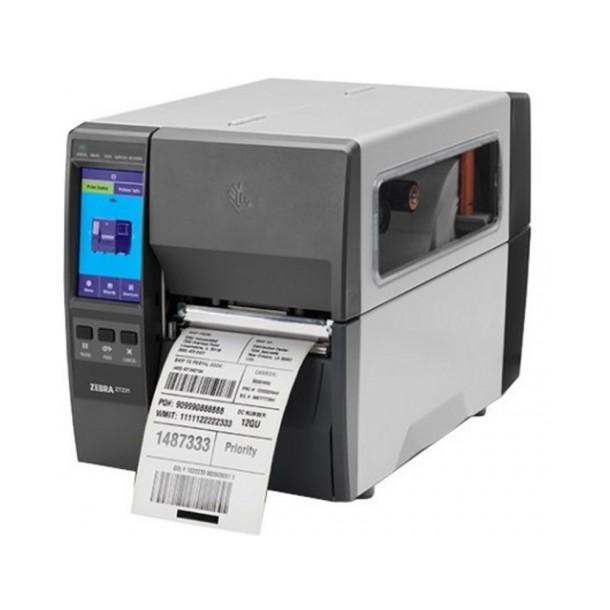

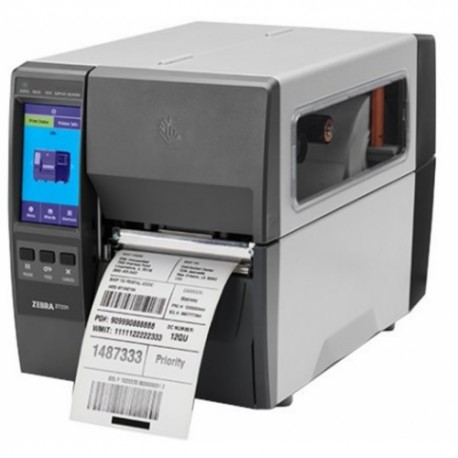

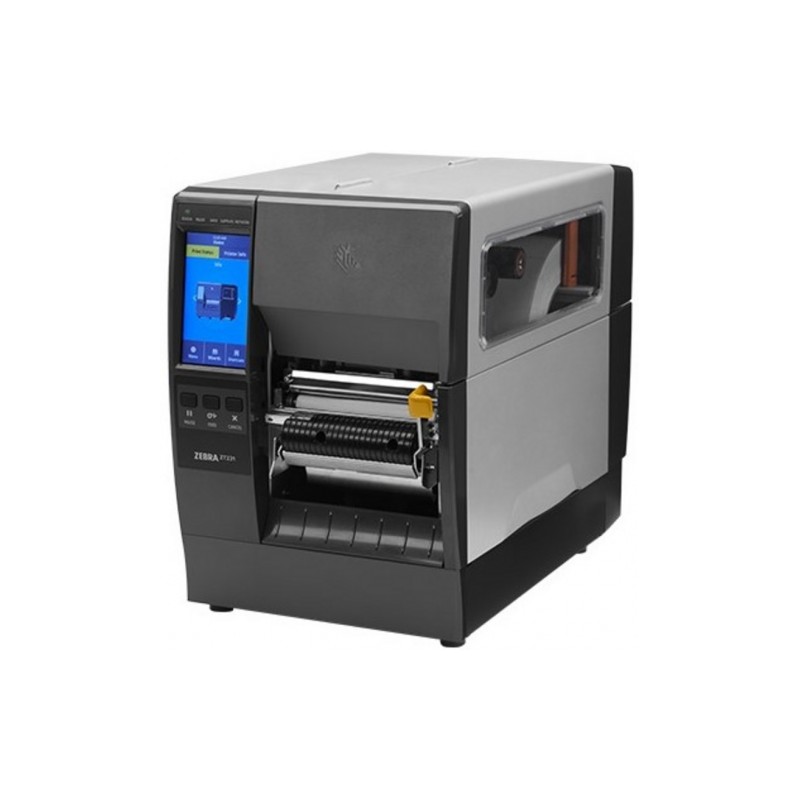

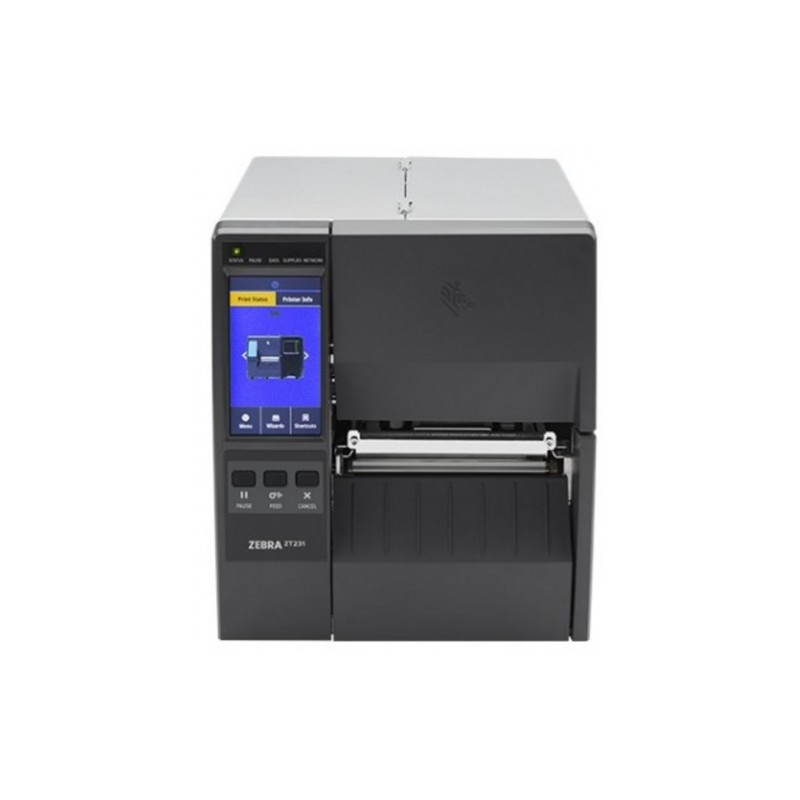

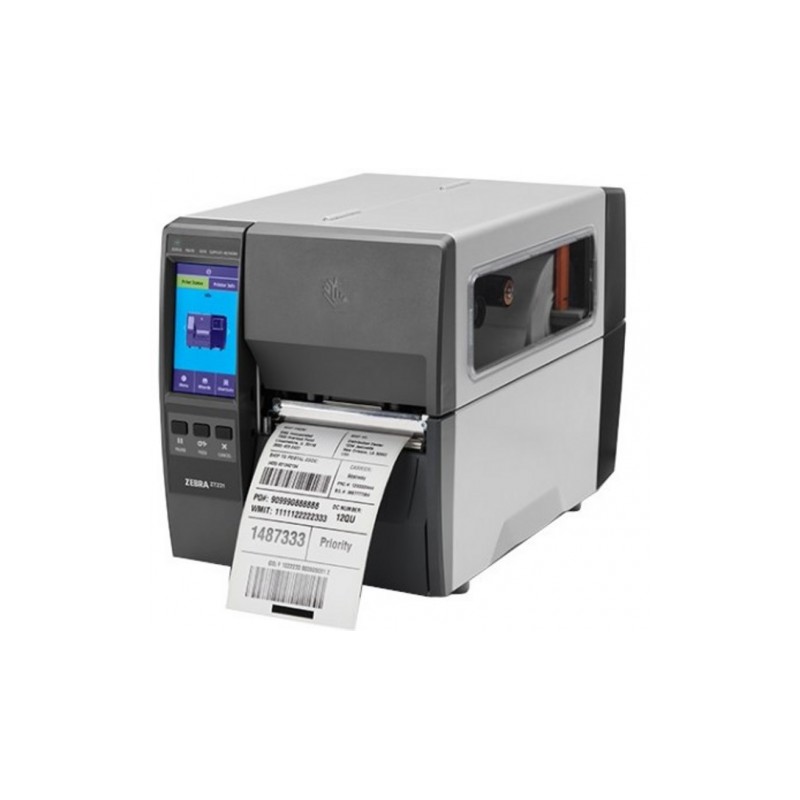

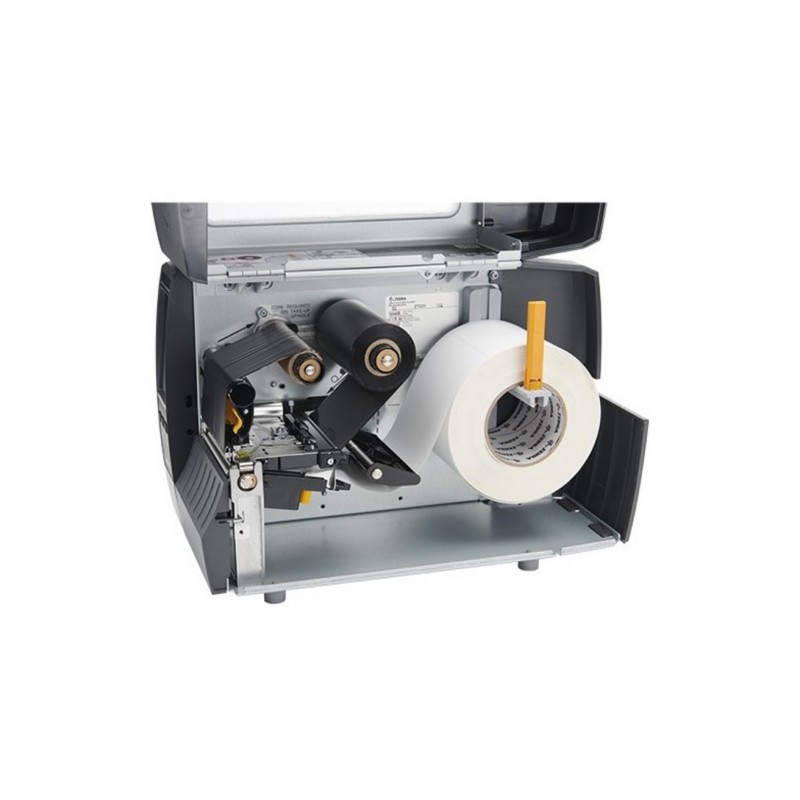

The Zebra ZT231 is an industrial label printer equipped with a thin film printhead with E3 Element Energy Equalizer for superior print quality. The printing method is thermal transfer.

PN: ZT23142-T0E000FZ
Printing method: thermal transfer (with ribbon)
Interface: USB 2.0, USB Host, RS-232, Ethernet
Print speed: 305 mm/s. Print resolution: 203 DPI
Memory: 256 MB SDRAM. 256 MB Flash
Display: LCD
Printable area: 104 mm
Consumable characteristics: Width: min. 19.4 mm - max. 114 mm
Thickness: min. 0.076 mm - max. 0.25 mm
The maximum diameter of the label roll: - 203 mm on a 76 mm tube, - 152 mm on a 25 mm tube
Supported barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code, Aztec, Codablock, PDF417, Code 49 , Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14
Operating temperature: 0°C - 40°C. Humidity: 20-85% without condensation
Power source: Energy Star certified, 100-240 VAC 50-60 Hz
Programming languages: ZPL, ZPLII, EPL and EPLII
Dimensions: 432 x 241 x 279 mm. Weight: 9.1 kg. Black colour
