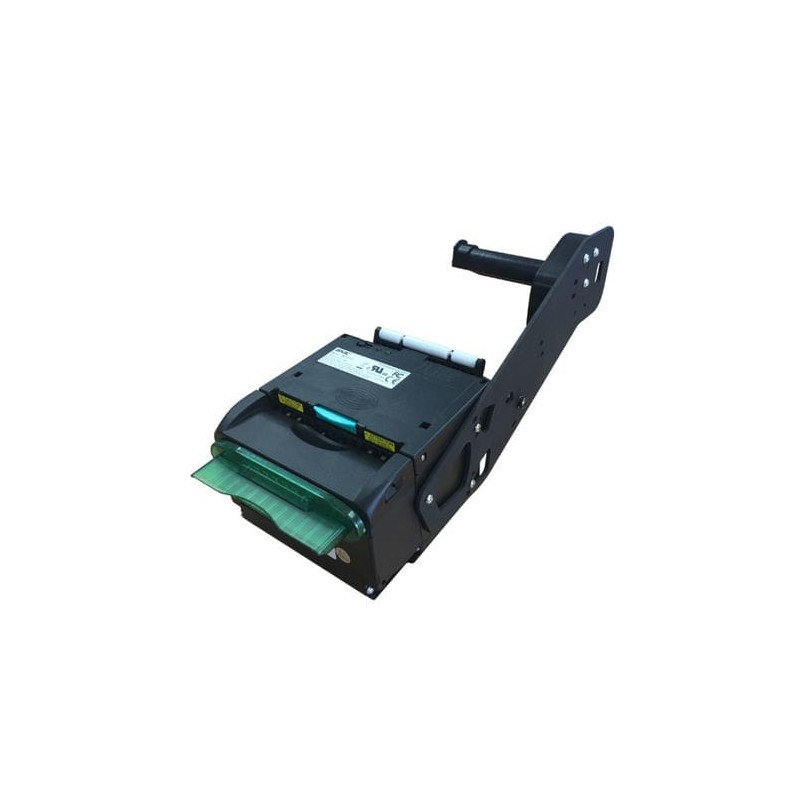

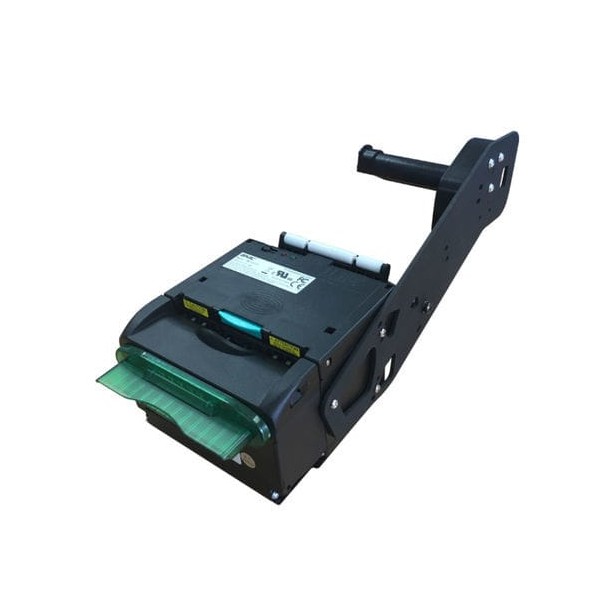

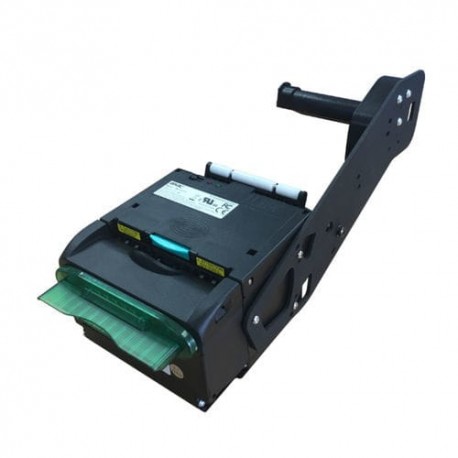

BK-C310 80mm Kiosk thermal printer

BK-C310 is a high-performance 80mm thermal printer for kiosks, featuring an auto-cutter module and a presenter.

Features:

Print method: Direct thermal

Resolution: 203x203 DPI

Print width: Max. 80mm

Print speed: Standard: 150mm/s
Max. 230mm/s

Memory: FLASH 4M, SDRAM 2M

Interface: USB2.0/serial

One-dimensional barcode: UPC-A, UPC-E, JAN8 (EAN8), JAN13 (EAN13), CODE 39, CODE 93, CODE 128, ITF, CODABAR

Fonts: Font A (12x24), Font B (9x17), Kanji Font (24x24)

Paper type: Continuous paper; Marked paper

Paper thickness: 0.05 ~ 0.1 mm

Paper roll OD: Max. 300mm

Paper roll width: 48 ~ 82.5mm, continuously adjustable

Paper cut: Full cut

Paper out mode: Retract/hold paper/Spit out paper/close

Paper out speed: Max.: 600mm/s

Paper retraction speed: Max.: 600mm/s

Input: AC 220V±5%, 50/60Hz

Output: 24V, 2.5A

Print head lifetime: 150km

Cutter lifetime: 1,000,000 cuts (full cut, paper thickness: 0.065mm)

MTBF: 360,000 hours

MCBF: 7,000,000 lines

Operating conditions: 0-45°C, 20-90 % RH (40°C);

Storage conditions: -40°C -60°C, 15%-98% RH (40°C)

Dimensions: 116 (W) x 146.8 (L) x 76.7 (H) mm (without paper holder)

Weight: 0.8 kg
