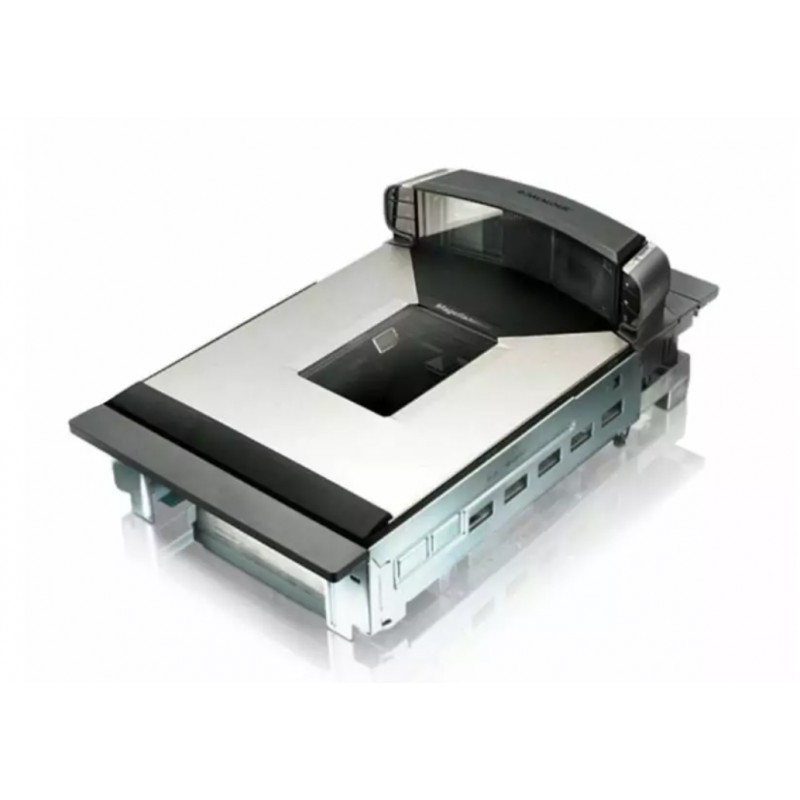

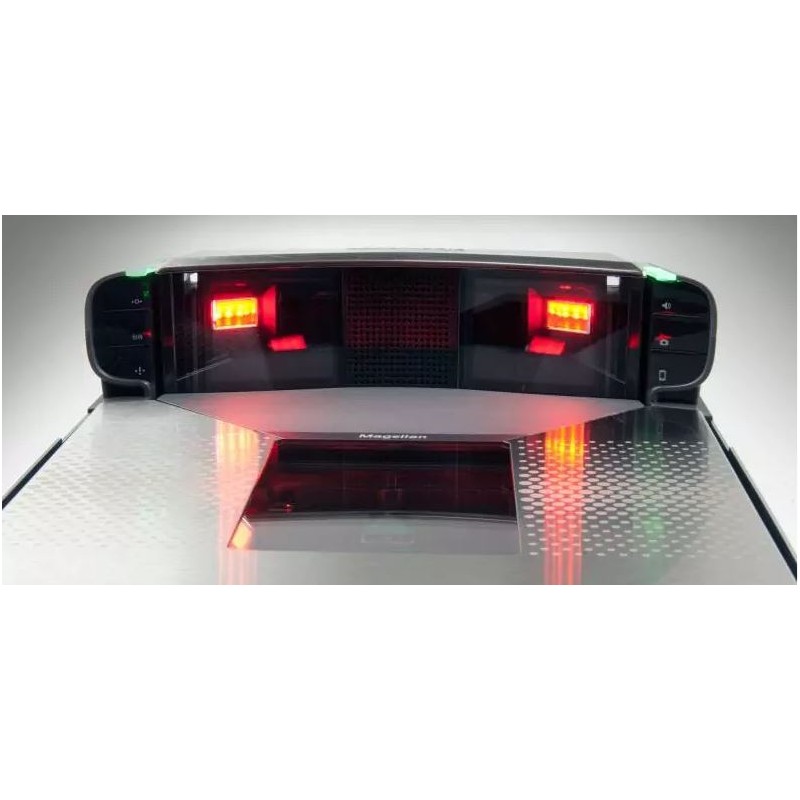

It has optional ability to read Digimarc codes. Datalogic Magellan 9800i reads 1D and 2D barcodes from labels, packaging, boarding passes or from the screens of mobile devices. It is an omnidirectional table scanner, with compact and ergonomic design and USB interface.

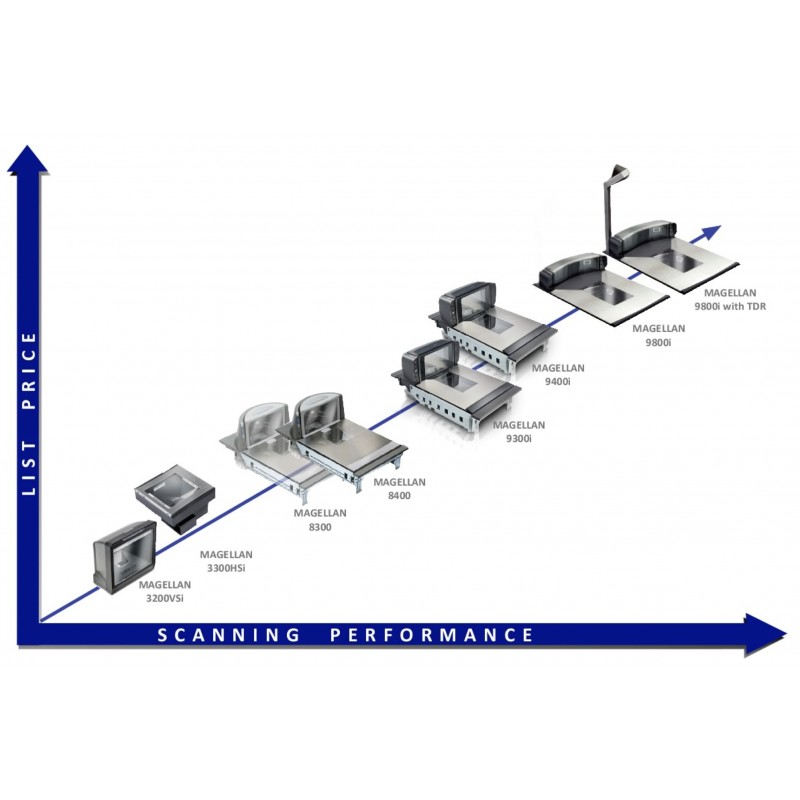

The Magellan 9800i model has a smaller vertical reader, raised 68mm above the platen, compared to the Magellan 9300i/9400i models which are raised 130mm above the platen, maintaining the same reading performance.

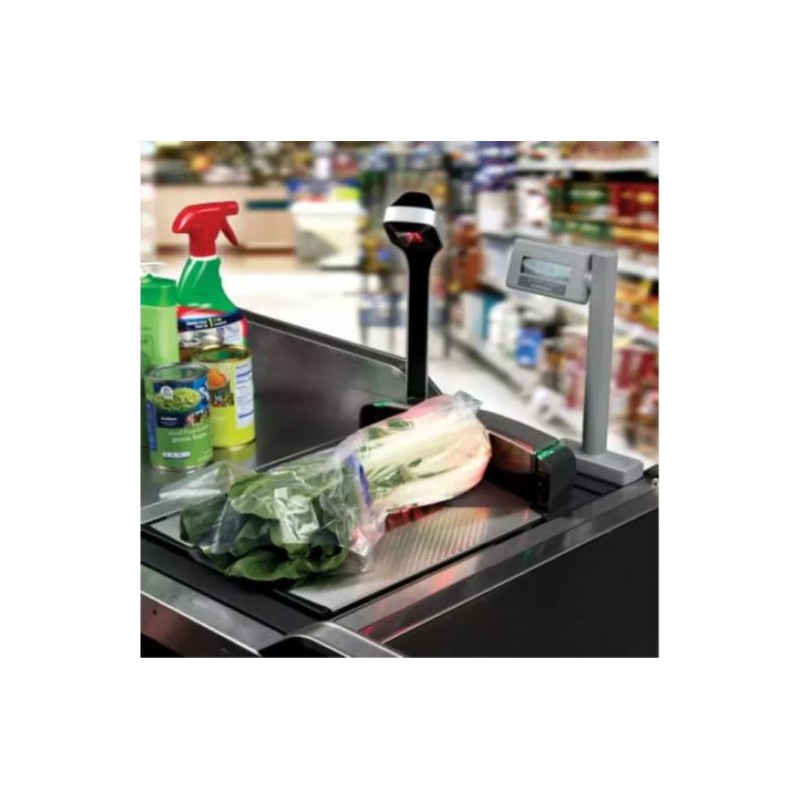

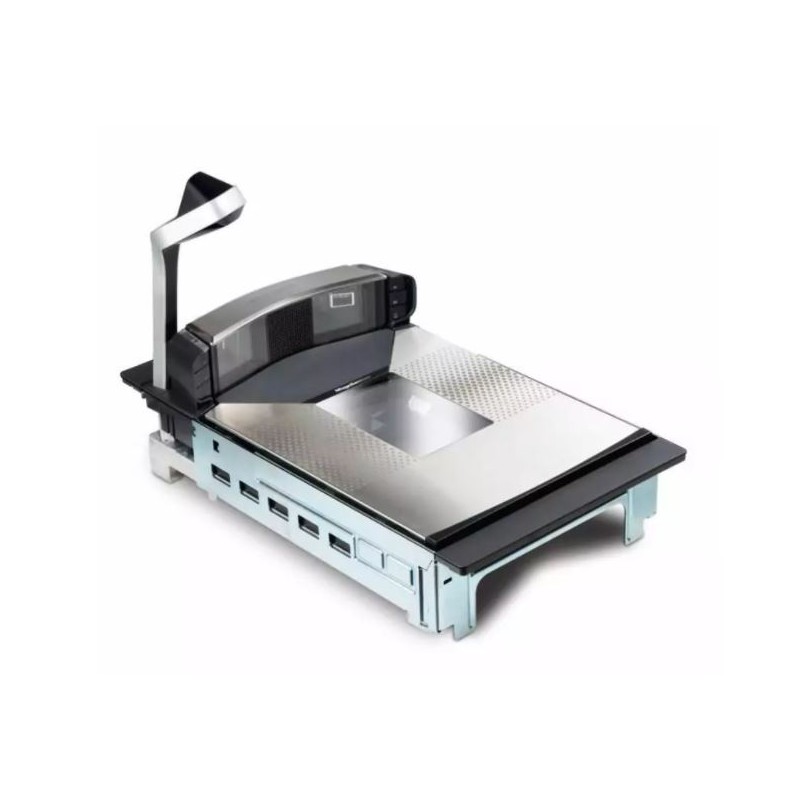

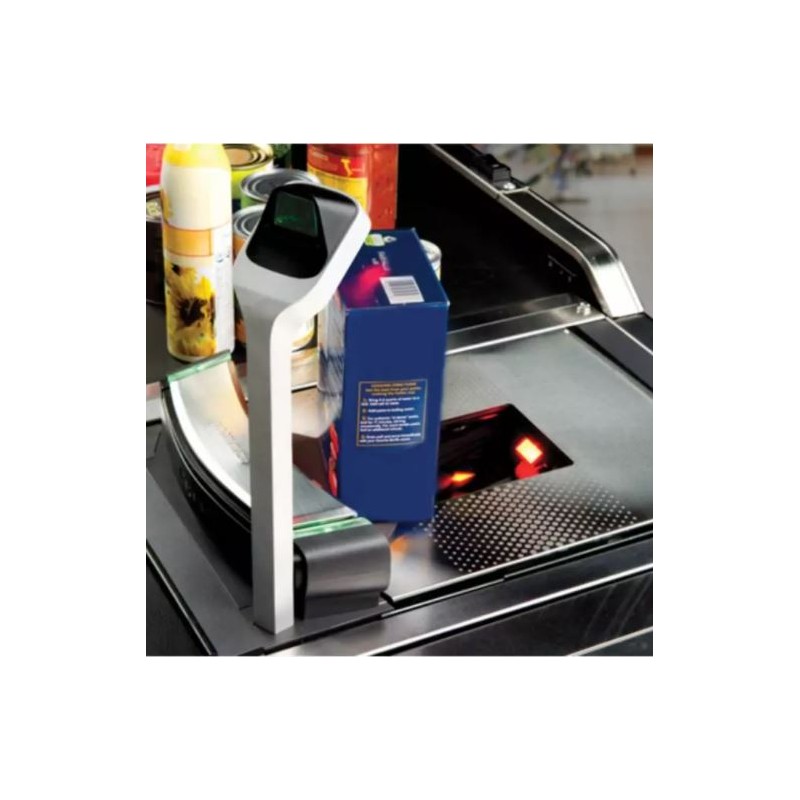

The Magellan 9800i model can be optionally equipped with a third scanner mounted on an arm, called TDR, which maximizes scanning speed by adding new angles for reading barcodes.

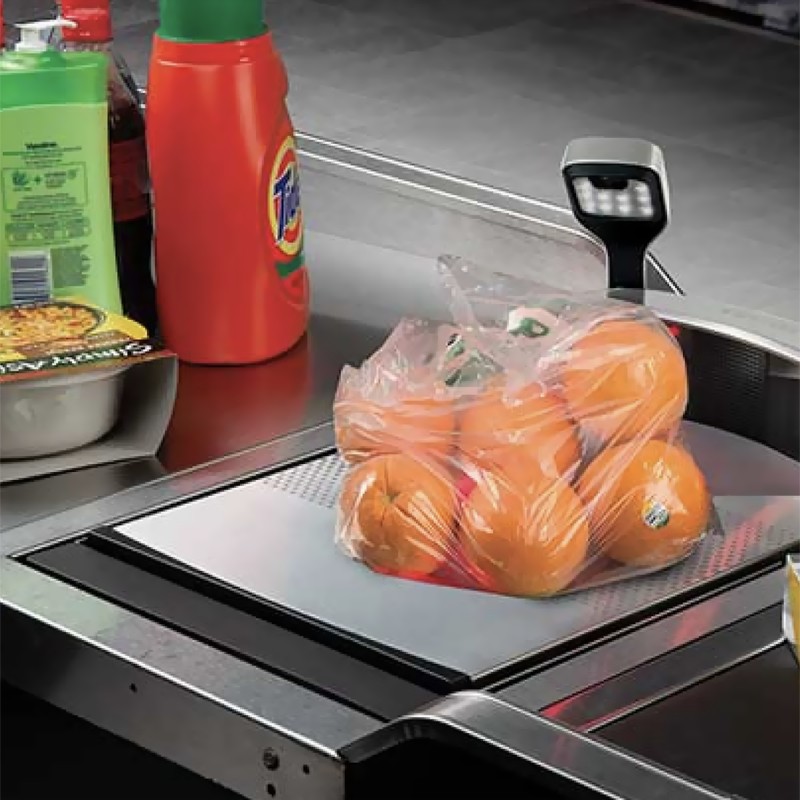

It is delivered in the Medium Platter version with Dibal weighing cell

It is available in 3 sizes: Short, Medium, Long. The Medium and Long variants can be equipped with a weighing cell; the Short version cannot have a scale.

Short version: length 35.2 cm / width 29.2 cm / depth under the counter 10.6 cm / height above the counter 6.8 cm

Medium variant: length 39.9 cm / width 29.2 cm / depth under the counter 10.6 cm / height above the counter 6.8 cm

Long variant: length 50.7 cm / width 29.2 cm / depth under the counter 10.6 cm / height above the counter 6.8 cm

Medium Platter

Scan type: 2D

Shape: recessed

Connectivity: wired

Scanning technology: imager

Connection interface: USB

1D barcodes: Autodiscriminates all standard 1D codes including GS1 Databar ™ linear codes .;

Stacked Codes: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional;

2D: Aztec Code; Data Matrix; QR Code, Micro QR Code;

Dibal KS-400 M is a kit consisting of a weighing cell, support frame compatible with the Datalogic Magellan 9400i scanner and two LCD displays mounted on the support.

Modular and modern design

Two graphic LCD displays that can display the price in a secondary currency

Serial interface (RS232)

Country setting function, automatic zeroing function

Number of verification divisions – 3000

Compatible with Datalogic Magellan 8300/8400/9300i/9400i

Power supply – by scanner

Multiple communication protocols – you can add new communication protocols by downloading them from a PC

Dibal KS-400 M has a maximum weighing capacity of 6/15 kg, precision of 2/5 g, has two LCD displays and comes with two communication cables.

Operating temperature: 10 ° C - at 40 ° C

Power supply: AC Input: 100-250 VAC, 50-60 Hz

Others: Sapphire Glass;

audio signaling (beeper) adjustable in tone and volume;

LED reading signal successful.

Dimensions: 39.9 x 29.2 x 6.8 + 10.6 cm

Weight: 8 kg

Color: gray
