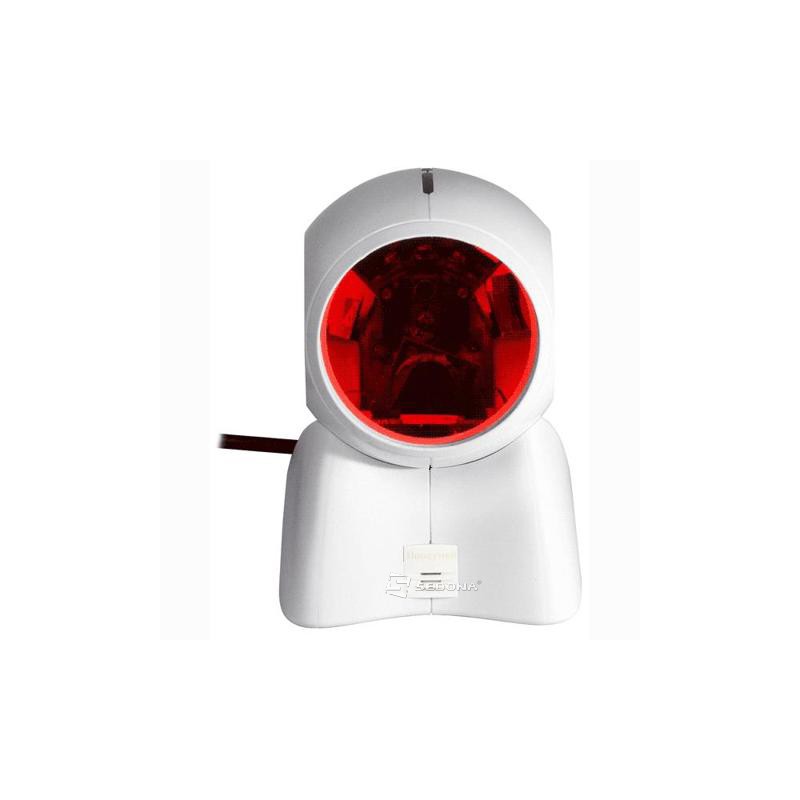

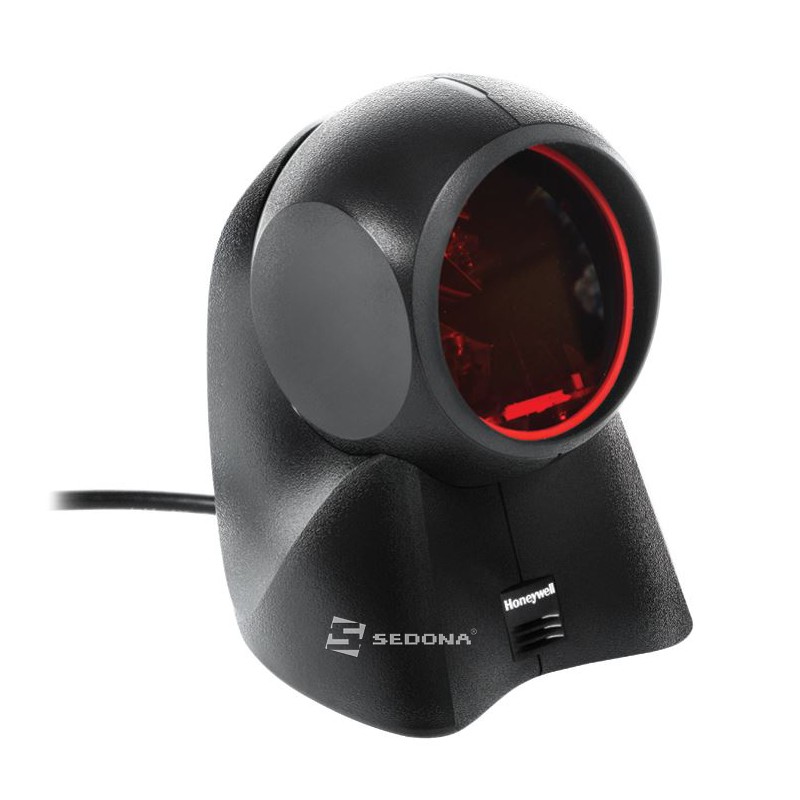

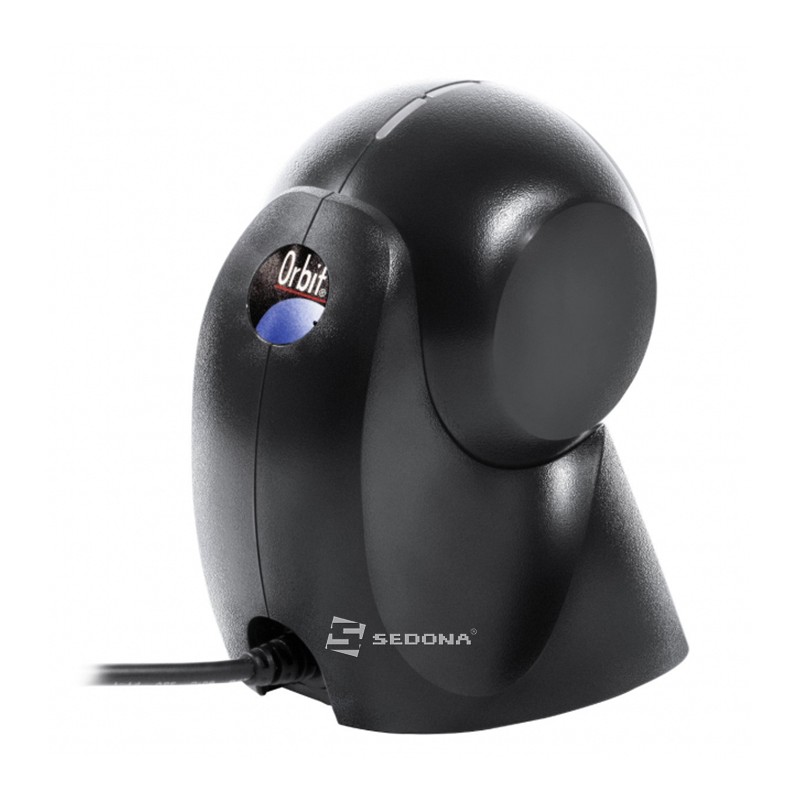

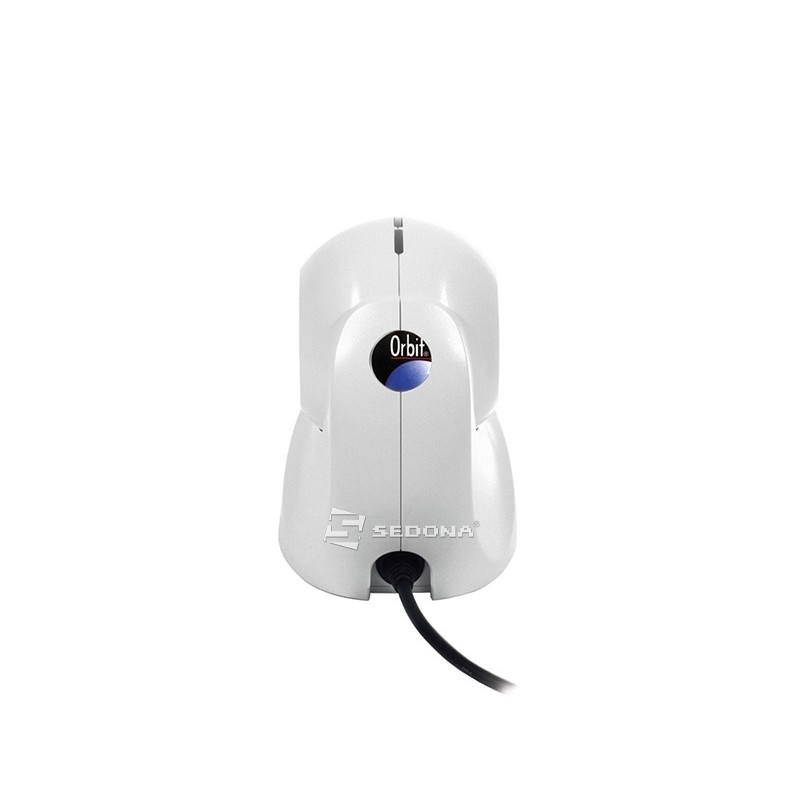

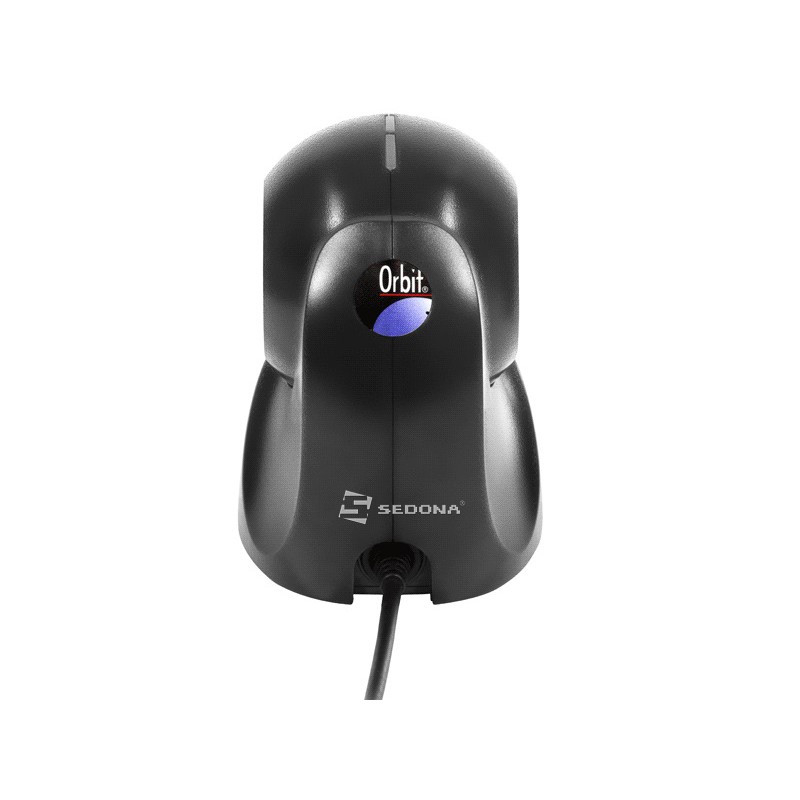

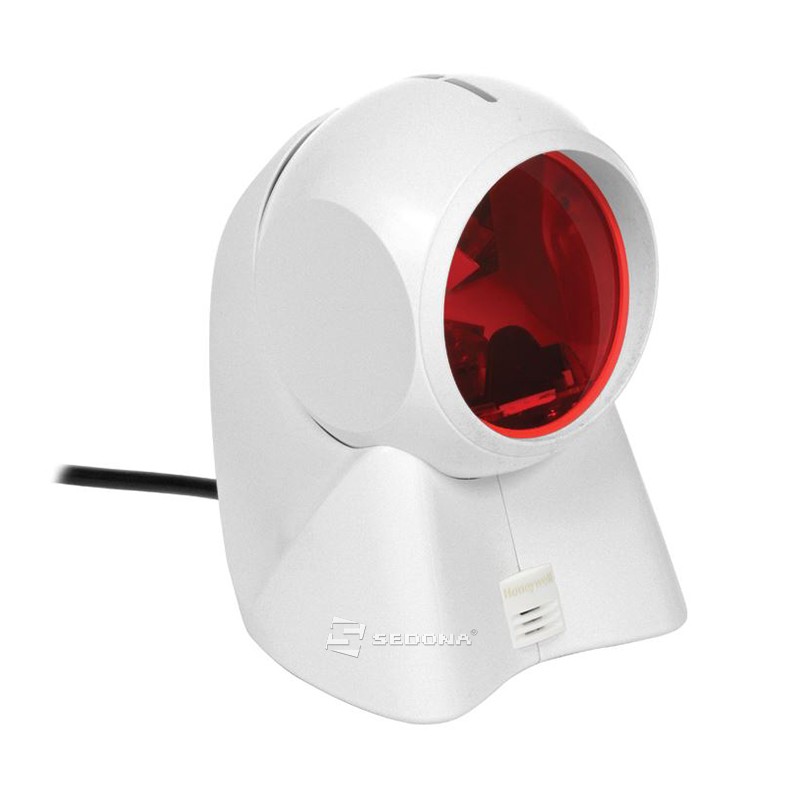

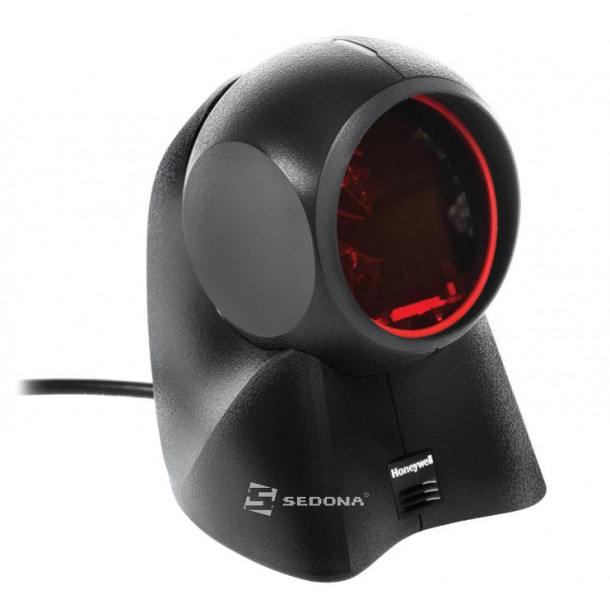

The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for printed 1D and digital 1D, 2D and PDF barcodes reading.

Host System Interfaces: USB

Optional: Multi-interface (RS232, KBW, USB, IBM)

Scan Pattern: Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array)

Scan Speed
Omnidirectional: 1120 scan lines per second
FPS: 30

Scan Angle (Imager)
Horizontal: 40.0°
Vertical: 30.5°

Symbol Contrast: 35% minimum reflectance difference

Pitch, Skew
Laser: 60°, 60°
Imager: 60°, 70°

Decode Capability
Laser: Reads standard 1D, GS1 DataBar symbologies
Imager: Reads standard 1D, PDF and 2D symbologies

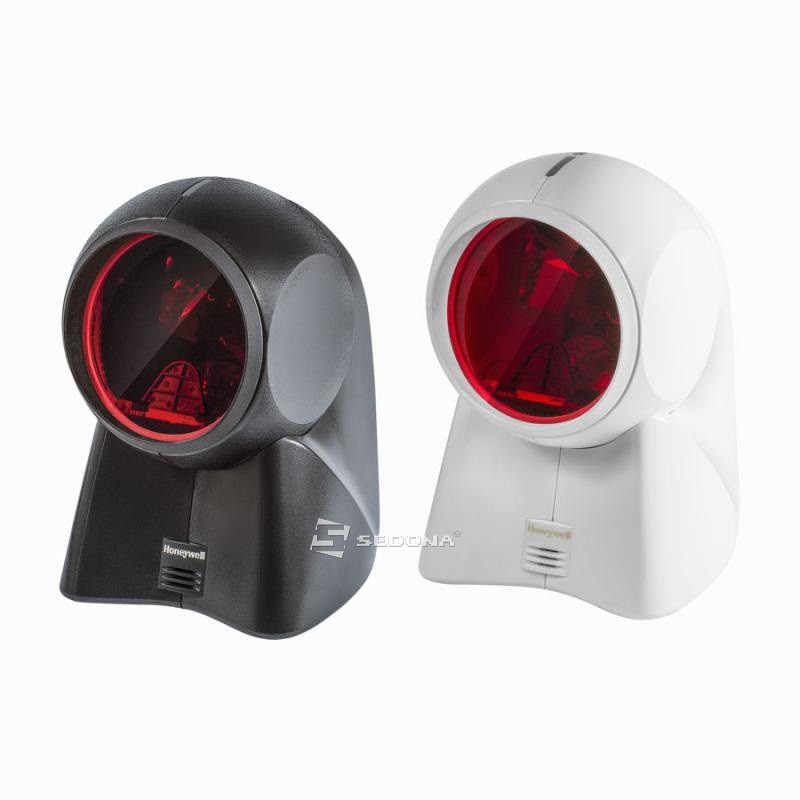

Colors: black hw7190bu - 7190g-2USBX-0, white hw7190u - 7190g-0USBX-0

Dimensions (L x W x H): 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)

Weight: 410 g (14.5 oz)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 5% to 95% relative humidity, non-condensing

Drop : Designed to withstand 1.2 m (4 ft) drops

Warranty: Three-year factory warranty
