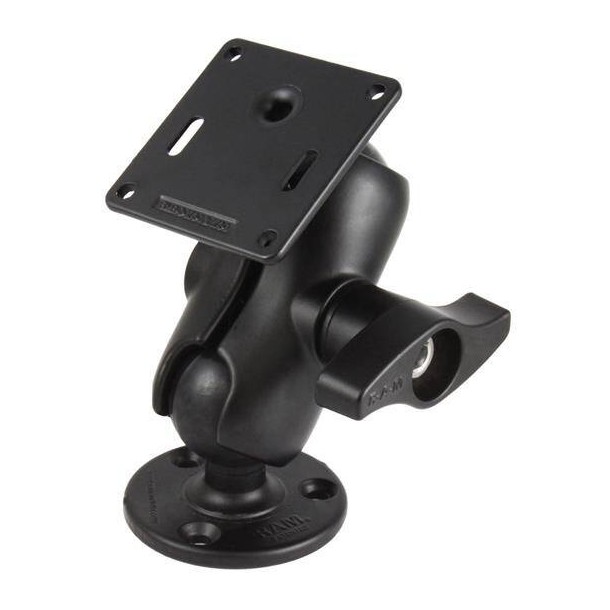

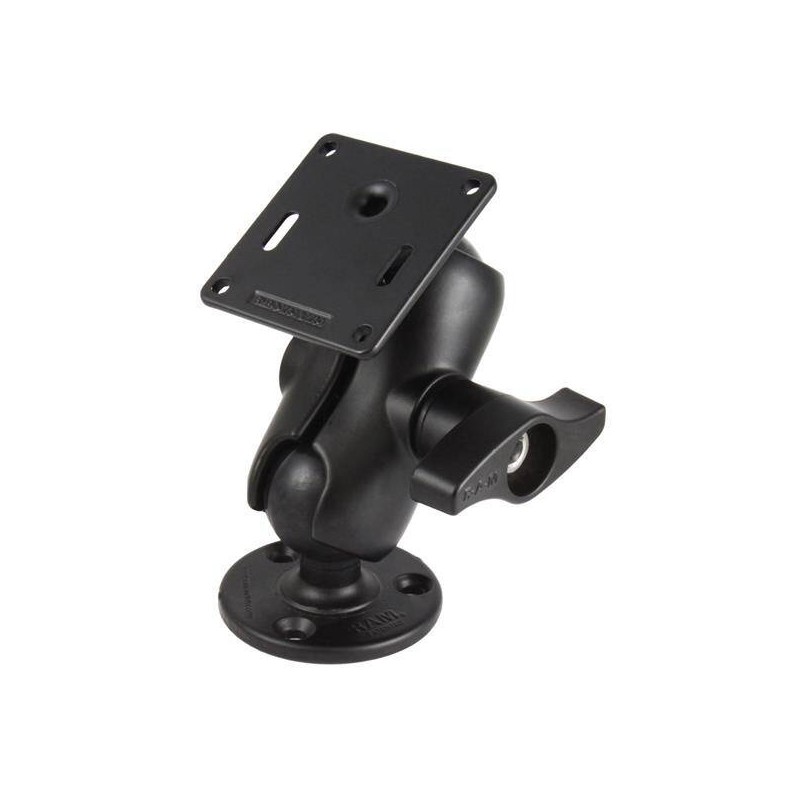

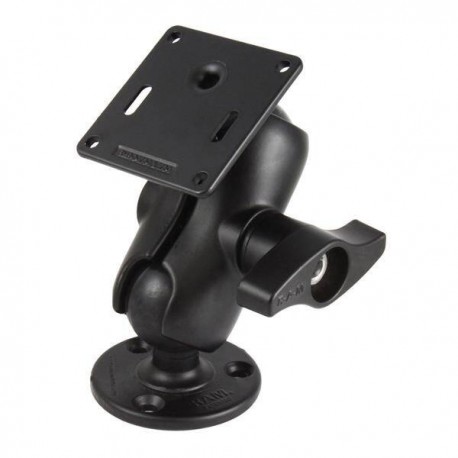

The mount consists of a 3.68" diameter round base, a SHORT length double socket arm with lock nut, and a 3.625" square plate with VESA hole pattern. The VESA plate features a 75mm X 75mm hole pattern. The 3.68" diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. A patented 2.25" diameter rubber ball and socket system is designed into the mount with adjustment points at both ends of the arm. The ball and socket technology allows for near infinite adjustment and perfect viewing angles.

Product Weight: 1860 g
Product Dimensions: Overall Height: 7.875"
Length from Socket to Socket: 3.6"
Hole Pattern: See Drawings
75 x 75 VESA
3 Holes 120 Degree (Large)
Weight Capacity: Standard Use: 2721.55 grams|Heavy Duty: 2267.96 grams
Materials: Marine Aluminum
Packaging Type: Poly Bag
Mount Type: Drill Down
Ball and Socket Size: D Size 2.25" (Contains 2721.55 grams)
Socket Arm Length: Short Arm
Device or Accessory Type: Monitor
Component Parts
RAM-D-201U-C-MI1
RAM-D-202U
RAM-D-2461U
Length from Socket to Socket: 3.6"
Ball Size: D Size (2.25")
