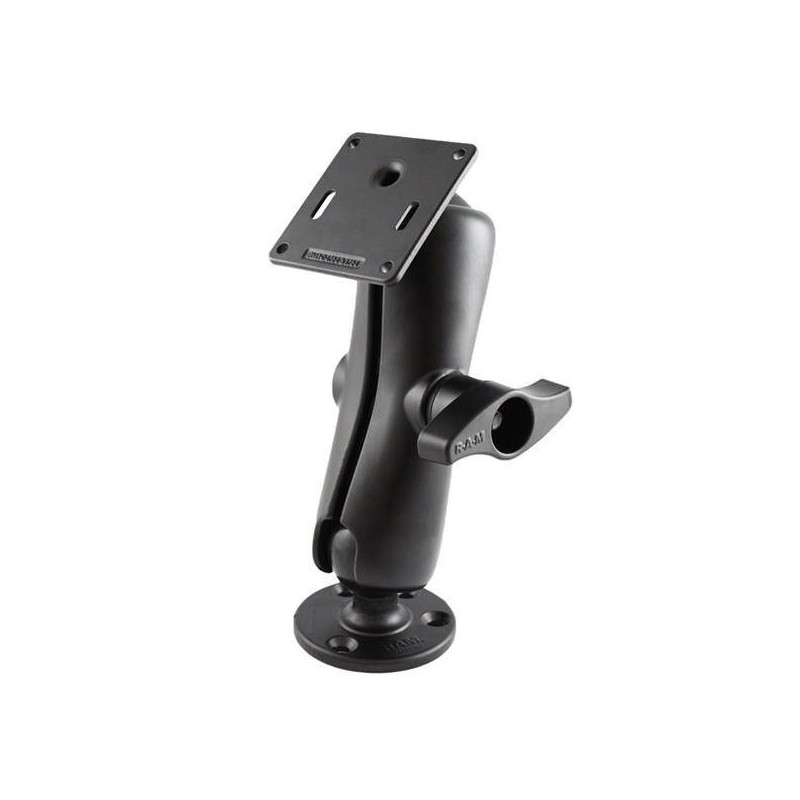

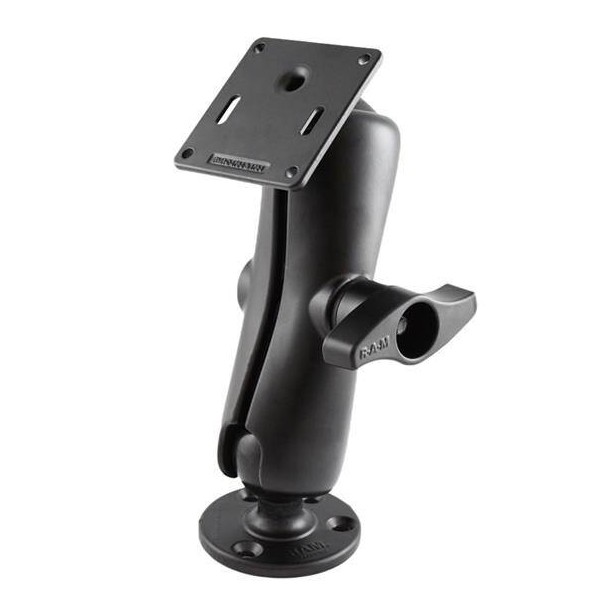

The mount consists of a 3.68" diameter round base, a STANDARD length dual socket arm, and a 3.625" square plate with VESA hole pattern. The VESA plate features a 75mm X 75mm hole pattern. The 3.68" diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. A patented 2.25" diameter rubber ball and socket system is designed into the mount, with adjustment points at both ends of the arm. The ball and socket technology allows for near infinite adjustment and perfect viewing angles.

Product Weight: 1774 g

Product Dimensions: Overall Height: 11.125"

Length from Socket to Socket: 6.88"

Hole Pattern: See Drawings

3 Holes 120 Degree (Large)

75 x 75 VESA

Weight Capacity: Standard Use: 2721.55 grams|Heavy Duty: 2267.96 grams

Materials: Marine Aluminum

Packaging Type: Poly Bag

Mount Type: Drill Down

Ball and Socket Size: D Size 2.25" (Contains 2721.55 grams)

Socket Arm Length: Medium Arm

Device or Accessory Type: Monitor

Component Parts

RAM-D-201U

RAM-D-202U

RAM-D-2461U

Length from Socket to Socket: 6.88"

Ball Size: D Size (2.25")
