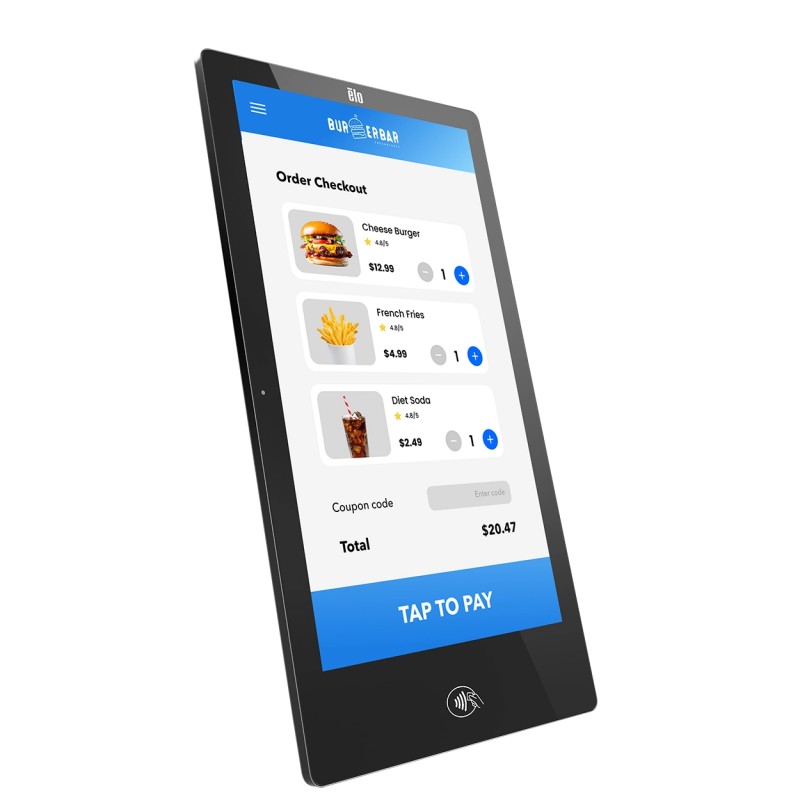

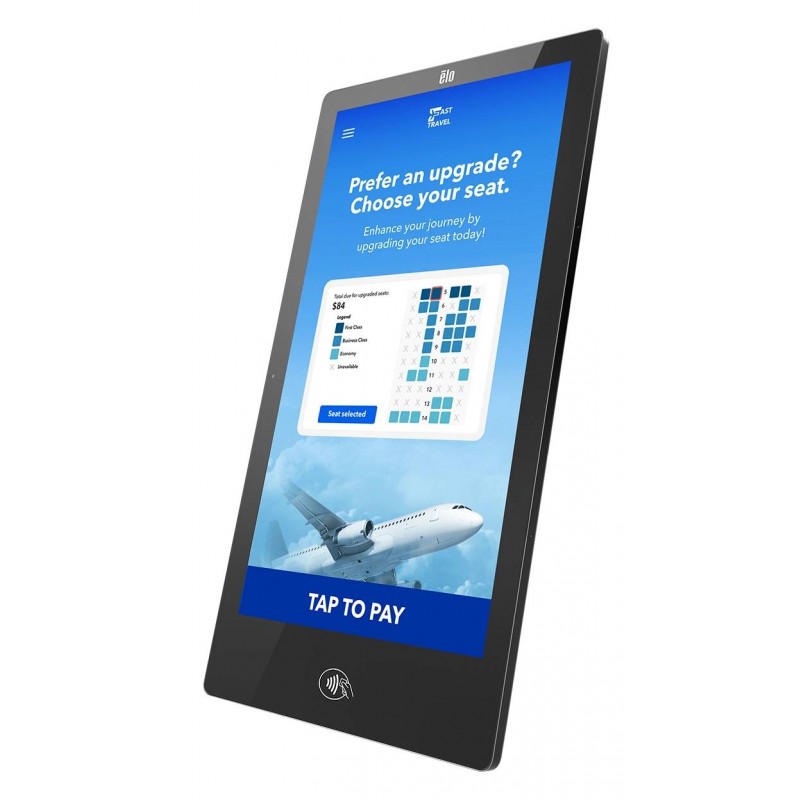

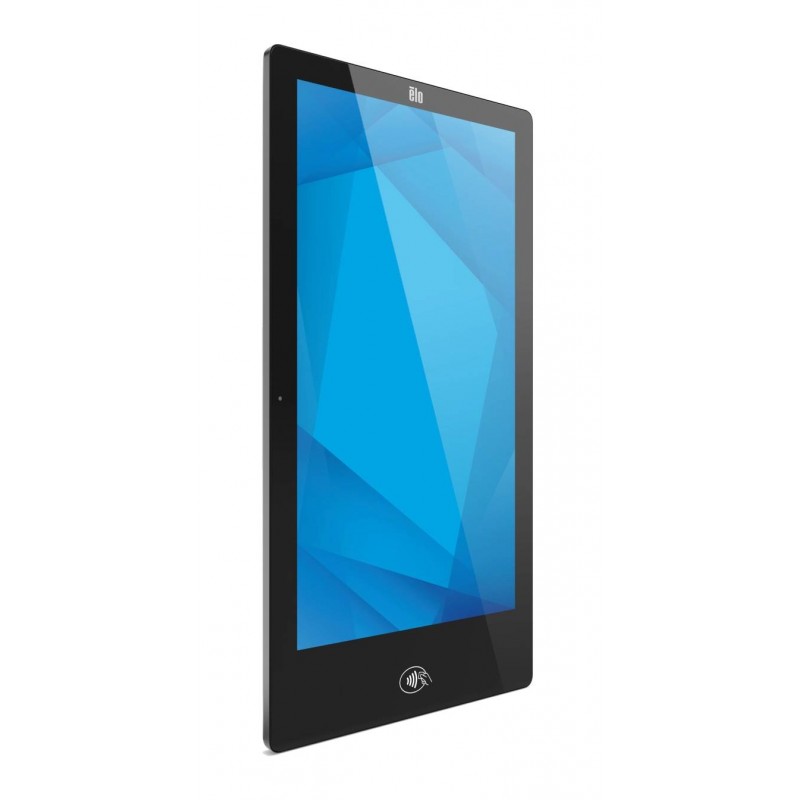

Elo Pay 22" is a tap-to-pay POS system based on Elo I-Series 4 with an integrated payment solution. It offers versatile and easy-to-use functions for self-service, ticketing, customer processing and more. It is equipped with a 21.5" PCAP touchscreen with 10-point touch and a resolution of 1920 x 1080 pixels. NFC technology is integrated for contactless payments. An Android 12 operating system and a Qualcomm SD660 processor ensure easy operation and fast data processing.

Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor: Qualcomm Snapdragon SDA660

Memory (RAM): 4GB. Storage: 64GB

OS: Android 12 with Google Play Services

Diagonal Size: 21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio: 16:9

Active Area: 18.74" x 10.54" / 476 mm x 268 mm

Resolution: 1920 x 1080 @ 60Hz

Number of Colors: 8-bit (16.7 million)

Brightness (typical): TouchPro PCAP: 215 nits

Response Time-total (typical): 14 ms

Contrast Ratio: 1000:1

Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

I/O Ports: 1x USB 3.0 support (900mA), Type C USB output*, Micro SD slot, GPIO, Ethernet 1x LAN, Gigabit), DC in

NFC, Wireless, Bluetooth 5.0

Dimensions: 585.6 mm x 324.7 mm x 29.7 mm

Weight: 4.1 kg
