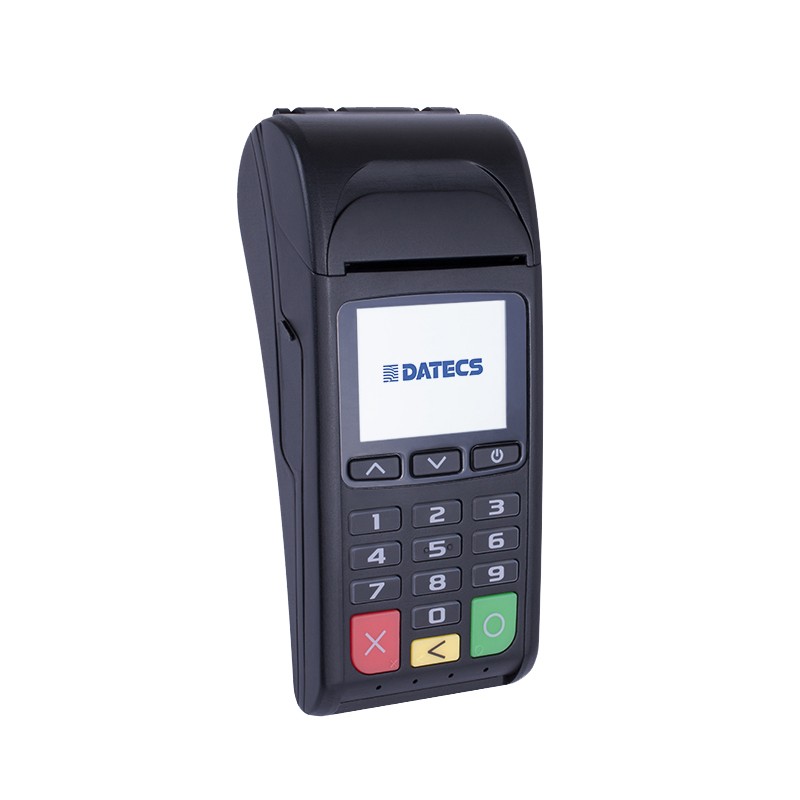

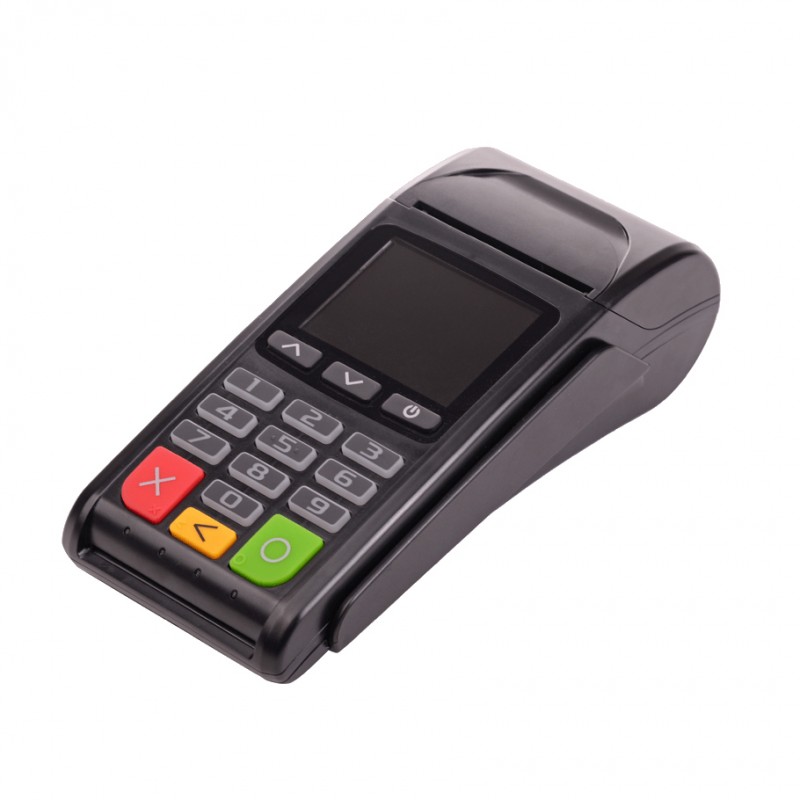

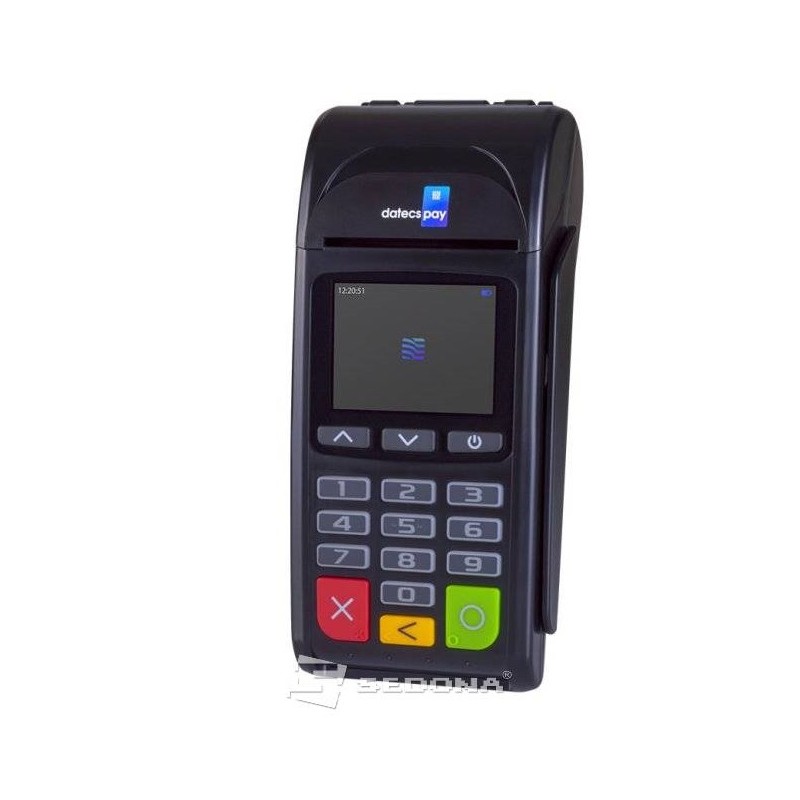

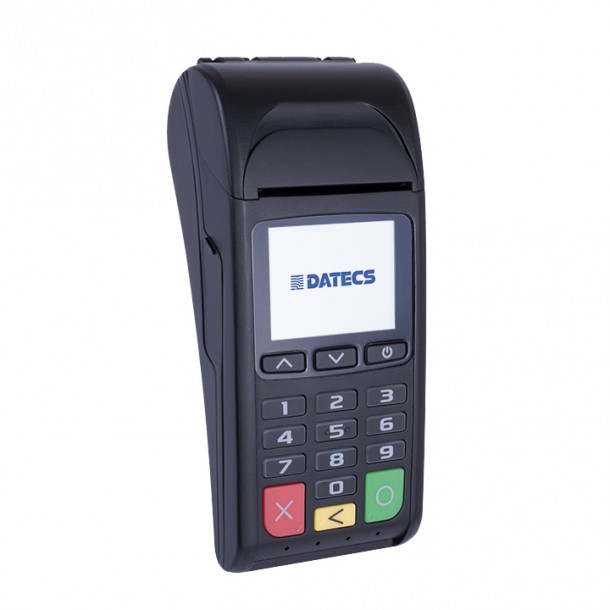

BluePad-5000 is our desktop mobile payment terminal. It accepts all forms of payment: Magnetic stripe, EMV Chip&PIN and Contactless cards and includes a printer to seamlessly print your receipt. The BluePad-5000 meets the latest EMV and PCI PTS 4.x specifications for encrypting PIN-entry devices.

To use the device, it is necessary to have a DatecsPay account.

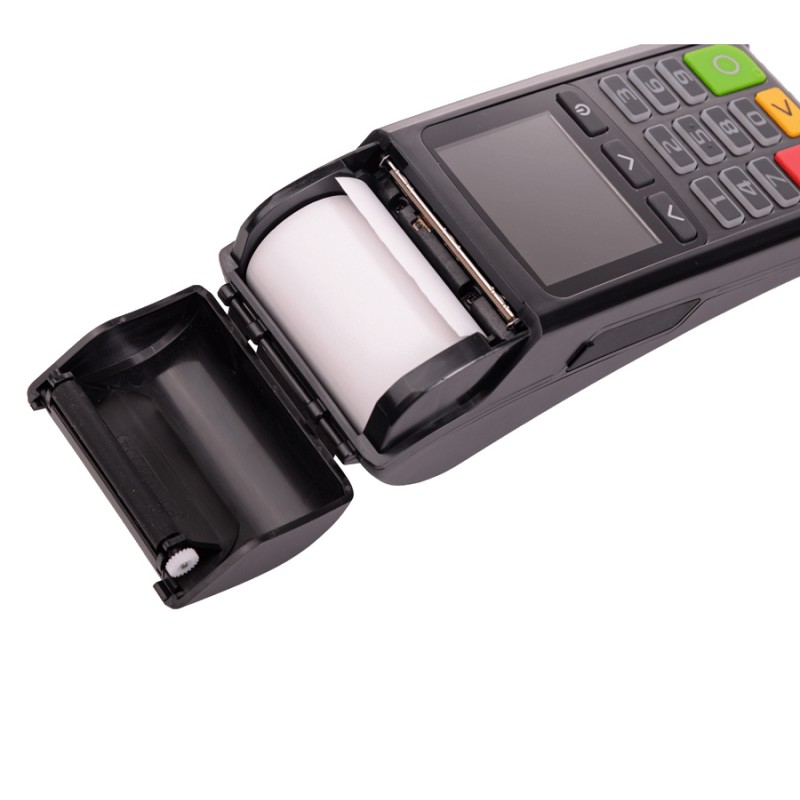

Printing mechanism: Direct thermal
Print width: 48mm (384dots)
Print resolution: 203x203dpi (8x8dpmm)
Print speed: 100 mm per second
Paper type: Thermal paper
Paper width: 58mm
Maximum roll diameter: 40mm
Display: 320x240px TFT Color LCD
Buttons: On/Off button, 10 numeric buttons, 5 function buttons, Backlight
Magnetic Card Reader: Triple track bi-directional
Smart Card Reader: Landingtype
Contactless reader: ISO/IEC14443 Type A, ISO/IEC14443 Type B, ISO/IEC15693, JISX6319-4-FeliCa, ISO/IEC18000-3-NFC
Contactless payments: VISA pay Wave, MasterCard Contactless, American Express ExpressPay, Discover D-Pas, UnionPay QuickPass, JCBJ/Speedy
Connectors: USB Microport, SIM card slot (optional), SAM card slot (optional)
Wired Communication: USB (device)
Bluetooth (optional): BT version 3.0 power class 2
Wireless (optional): Wi-Fi IEEE802.11b/g/n
Modem: 2G communication (optional), 3G communication (optional)
Operating system compatibility: OS, Android, Windows
LED indications: Contactless payment status
Audio specifications: Electromagnetic buzzer
Power supply: DC 9V through power adapter
Battery: Li-Ion rechargeable battery 7.4V, 1100mAh
Reliability: 500,000 chip card cycles, 1,000,000 magnetic card swipes, 1,000,000 button clicks
Certificates: CE, FCC, PCI PTS 5.x, EMV Level 1, EMV Level 2, EMV Level 1 Contactless, Apple Mfi
Dimensions: WxDxH 76x172x49mm
Weight: 320g
Operating temperature: -10°C to 40°C/5 to 90% RH
Storage temperature: -15°C to 50°C/5 to 90% RH
Box contents: BluePad-5000v2 equipment, Power adapter 9V, 1A, 90cm USB Type-A to Microcable

NOTE: This terminal can only be purchased together with these services:

Maintenance package (to cover services related to GPRS mode and banking mode)

In the Compatible Accessories section, you can find these services, with benefits and prices.

FEES FOR COLLECTION BY CARD:

 Percentage of total sales per terminal transacted in the previous month:

 1.75% / Corporate business cards, debit, credit or prepaid cards (including gift) regardless of the total sales in the previous month.

 1.3% / <2500 LEI

 1.2% / <7500 LEI

 1.1% / <15000 LEI

 1% / < 25000 LEI

 0.9% / >= 25000 LEI
