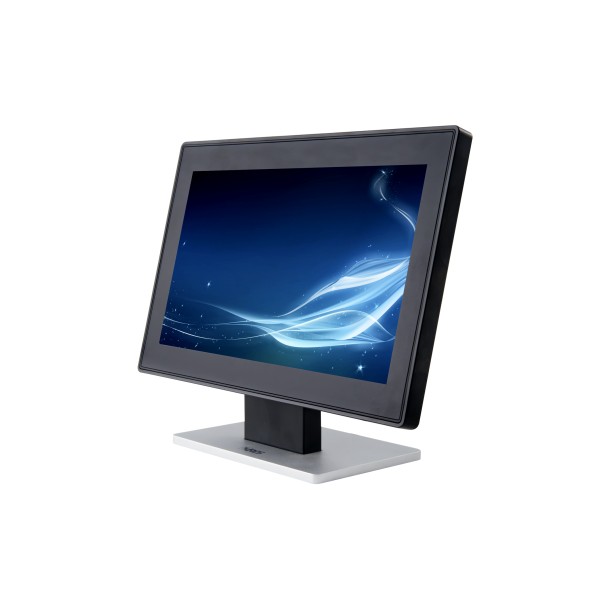

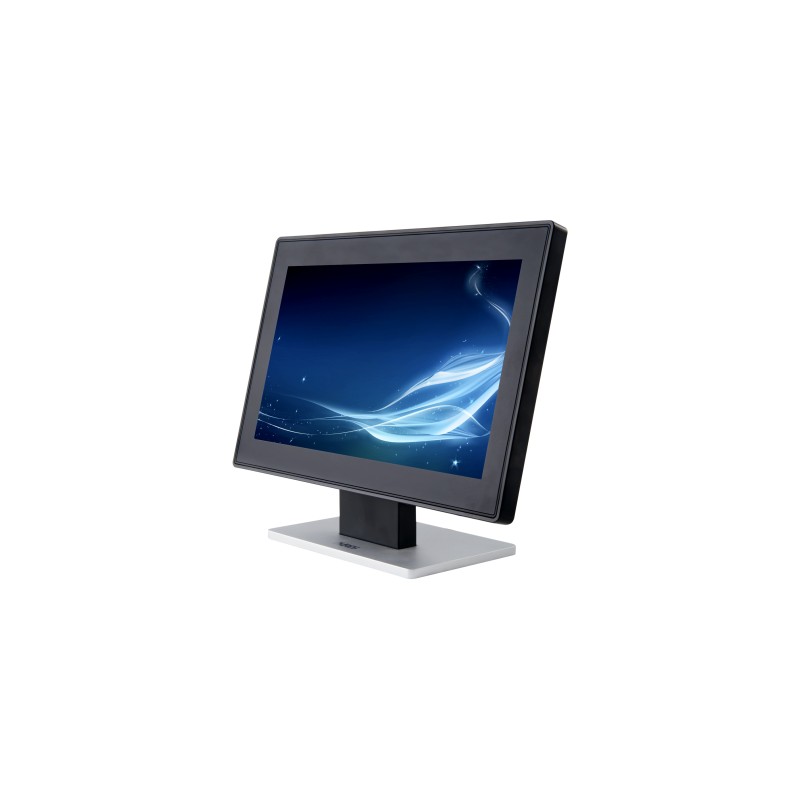

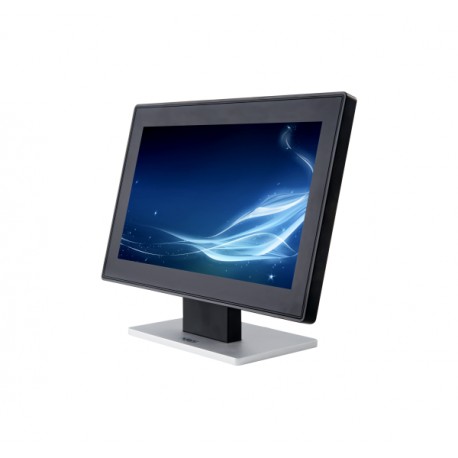

LCD Panel 10,1’’ – touch

Main chip Display link DL – 4110 (N)
Touch screen 10.1’’ 16:9 touch panel (PCAP Technology)
Resolution 1024 x 600
Brightness 350 cd/m2
Viewing angle (left, right, top, bottom) 80° / 80° / 80° / 80°
Tilt angle 0 - 80°
1 single USB cable 180 cm (power, video, touch screen)
EMC & Safety CE, FCC Class A, LVD
Operating temperature 0 ~ 40°C
Storage temperature -20 ~ 70°C
Humidity level (while operating) 20% to 85% RH – condensation-free
Humidity level (storage) 20% to 85% RH – condensation-free
Dimensions 260 (L) x 200 (H) x 155 (D) (in mm)
Weight 2.1 kg (net)
Options VESA Brackets 75 x 75 mm
Stand-alone version (external device, connected to any EPOS)
Dual screen version (integrated to the YUNO system)
Pole version (thanks to the VESA fixings)
