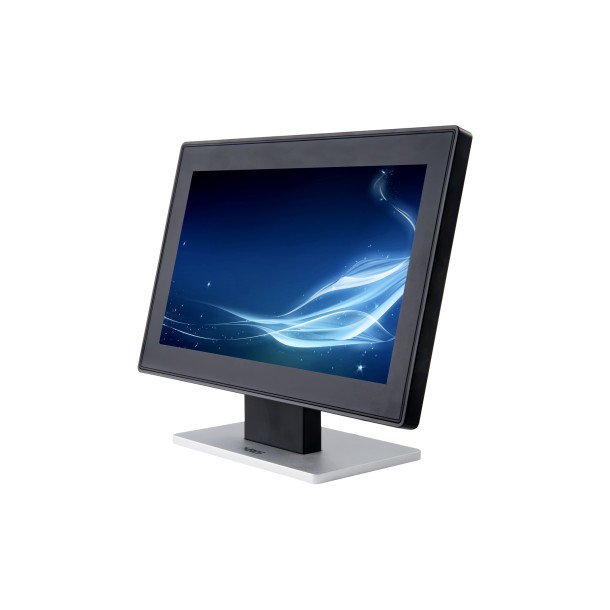

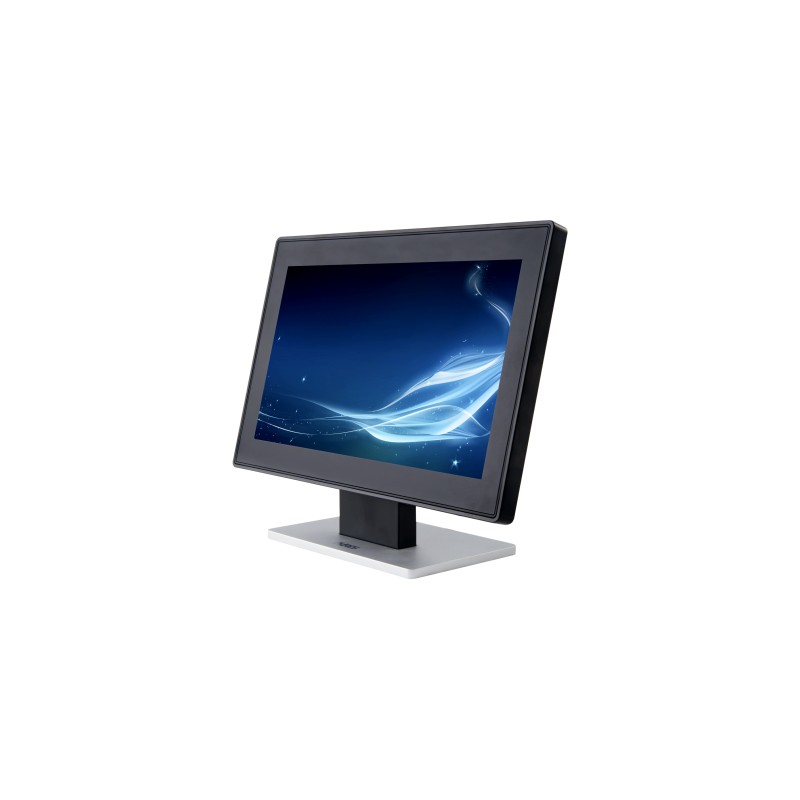

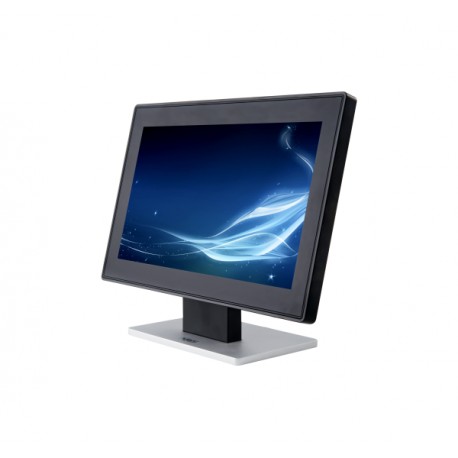

LCD Panel 10,1’’ – non touch

Brightness 250 cd/m2
Resolution 1024 x 600 (fixed)
Viewing angle (left, right, top, bottom) 70° / 70° / 50° / 70°
1 USB cable (power and data) for the standalone version
EMC & Safety CE, FCC Class A, LVD
Operating temperature 0 ~ 40°C
Storage temperature -20 ~ 60°C
Humidity level (while operating) 20% to 80% RH – condensation-free
Humidity level (storage) 20% to 85% RH – condensation-free
Dimensions (H x W x D) standalone version: 190 x 265 x 95mm (7.5’’ x 10,4’’ x 3.7’’)
Sango-integrated version: 172 x 263 x 14 mm (6.8’’ x 10,3’’x 0.5’’)
Weight standalone version: approximately 1.06 kg (2.3lbs)
Fixings for the standalone version only
75 x 75 VESA standard
