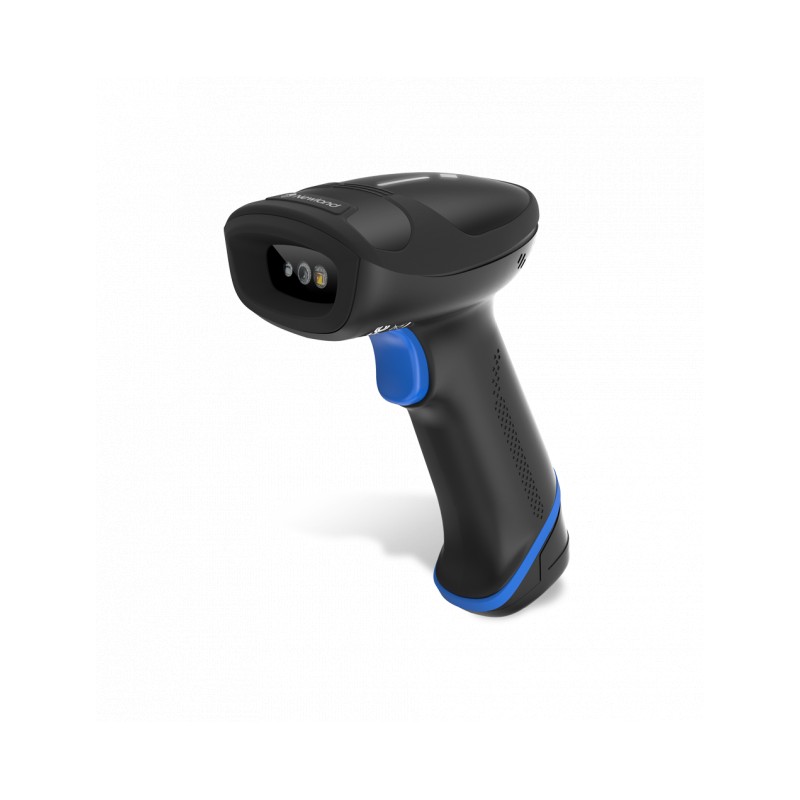

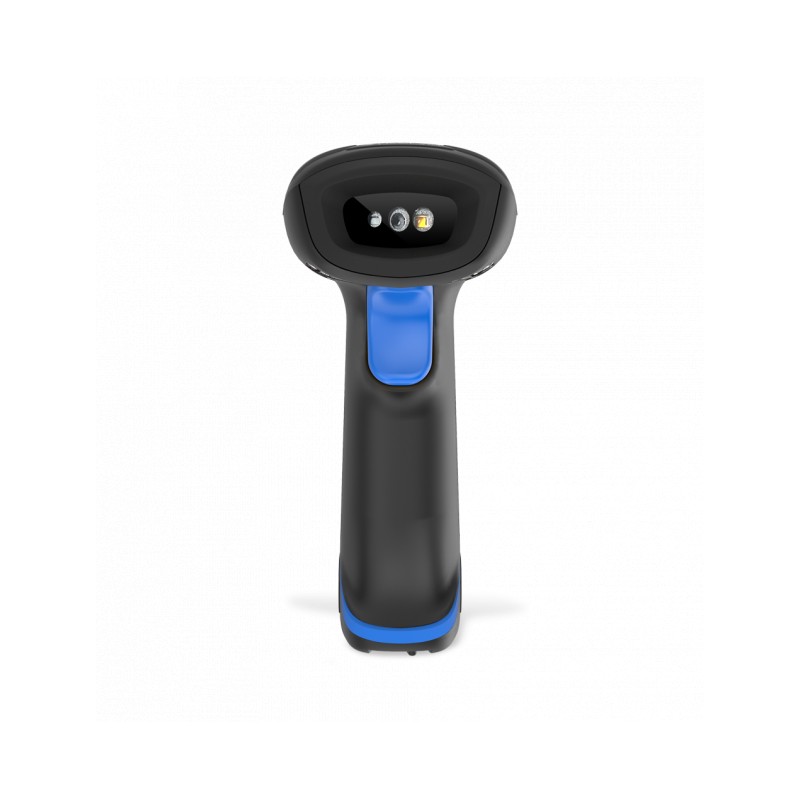

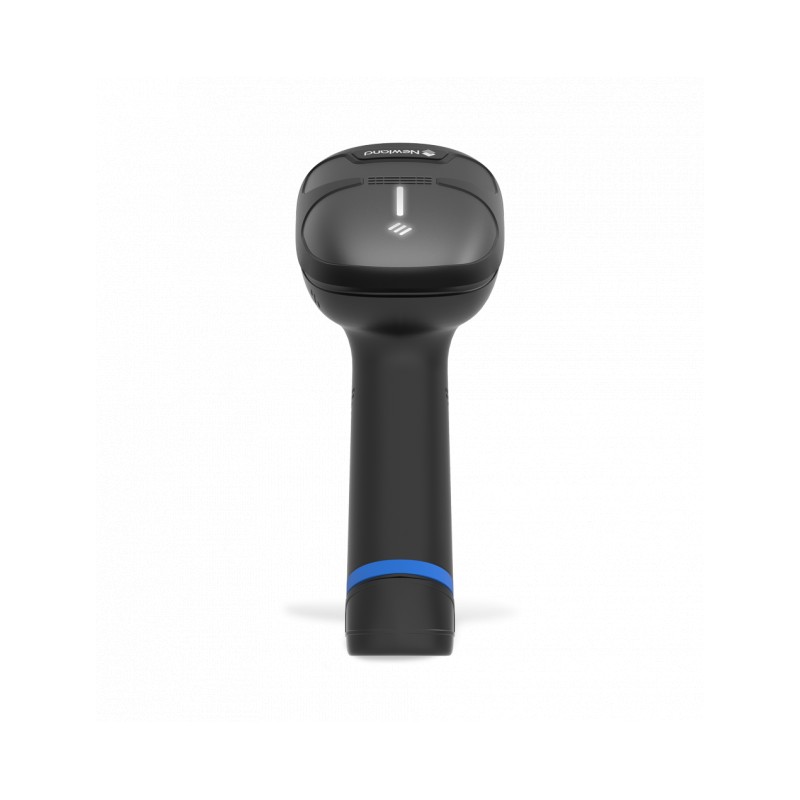

The HR33 Marlin series scanners from Newland have an elegant design that combines aesthetic appearance with functionality. It is dust and water resistant with an IP52 protection factor and withstands multiple drops from a height of up to 1.5 meters. The scanners also benefit from improved decoding functions and Acuscan technology - for faster scanning, even of OCR codes.

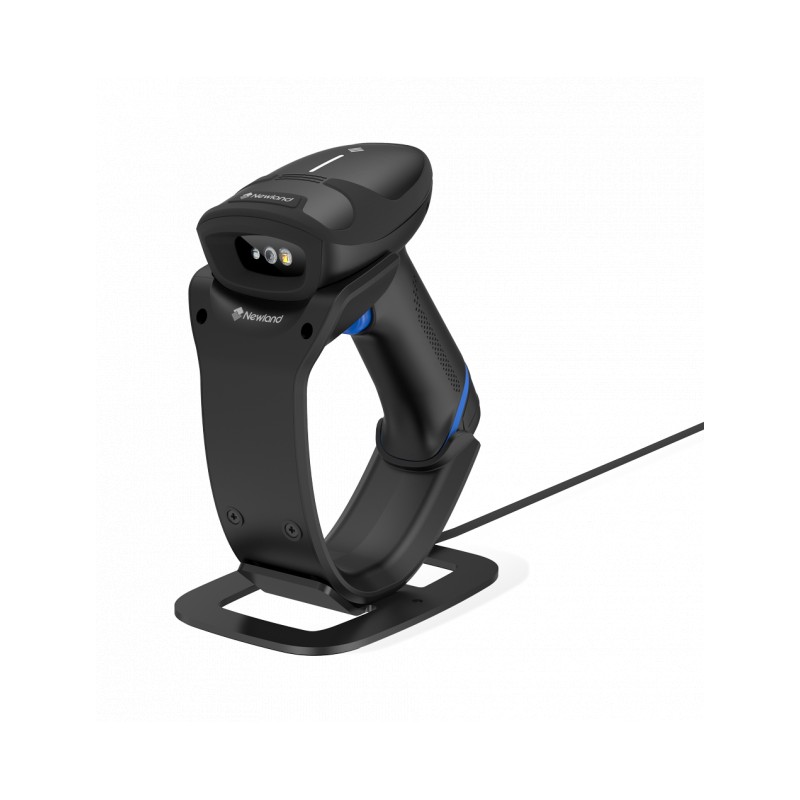

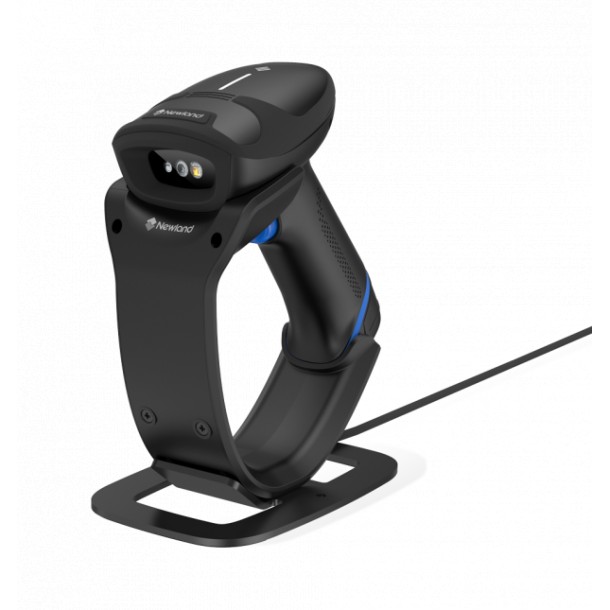

Bluetooth interface. Charging stand included.

1D: Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN -8 , ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49 and Code 16K.

2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One

OCR: OCR for passports, Chinese ID cards, OCR for Chinese travel permits

Image sensor: 1280x800 CMOS

Interface: Bluetooth

Battery type: 2600 mAh lithium-ion battery

Estimated battery life: ≥15 hours of continuous operation (scan once every 6 seconds)

Estimated charging time: ≤6 hours (with power adapter)

Input voltage: 5V DC ± 5%

Radio technology: Bluetooth 5.0

Wireless distance (max.)≥100 m (in open space)

Communication modes: Synchronous, asynchronous and batch modes

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage temperature: -40°C to 70°C (-40°F to 158°F)

Charging temperature: 0°C to 45°C (32°F to 113°F)

Humidity: 5% ~ 95% (non-condensing)

It withstands falls from a height of up to 1.5 meters

IP rating: IP52

Dimensions (mm): Scanner: 117.5 x 87.5 x 144 mm

Dimensions (mm): Charging station: 140 x 90 x 144.5 mm

Weight: Charging station: 340.5 g – Scanner: 210 g
