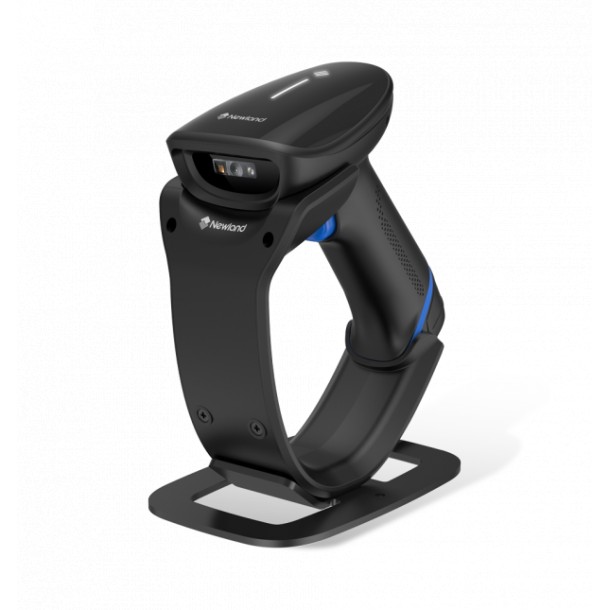

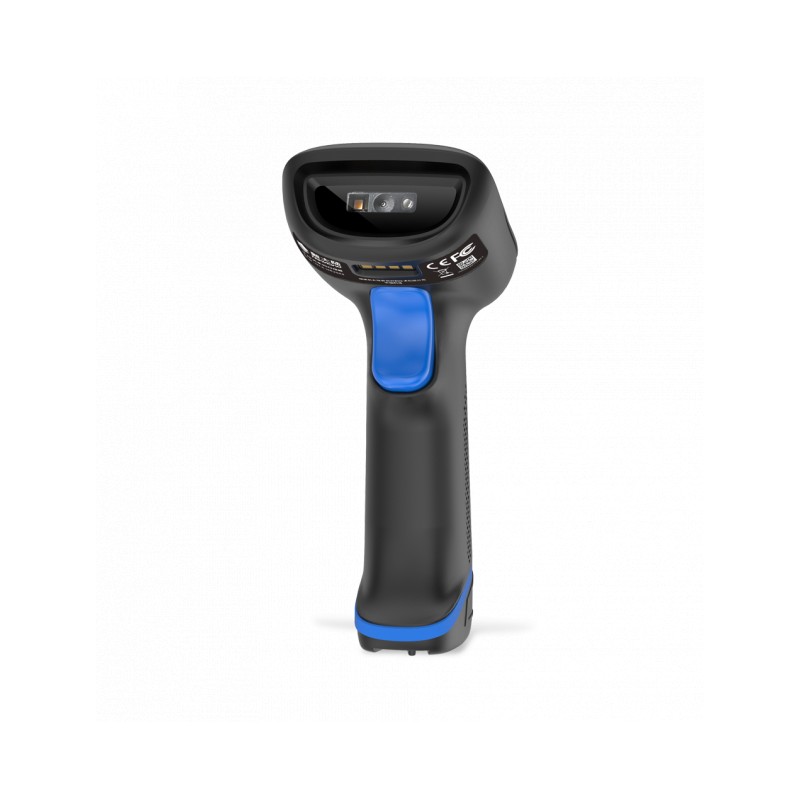

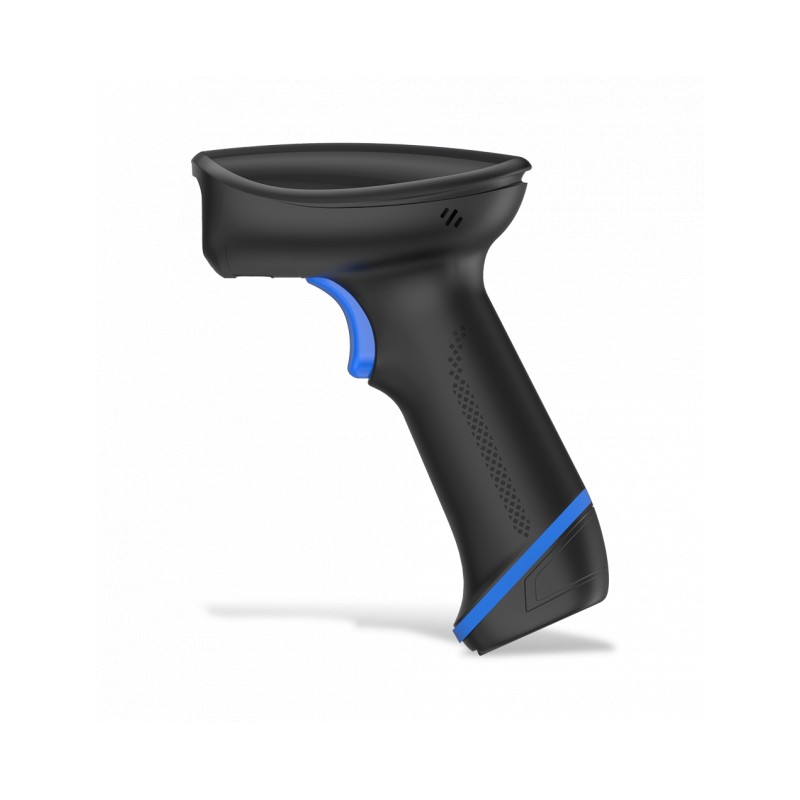

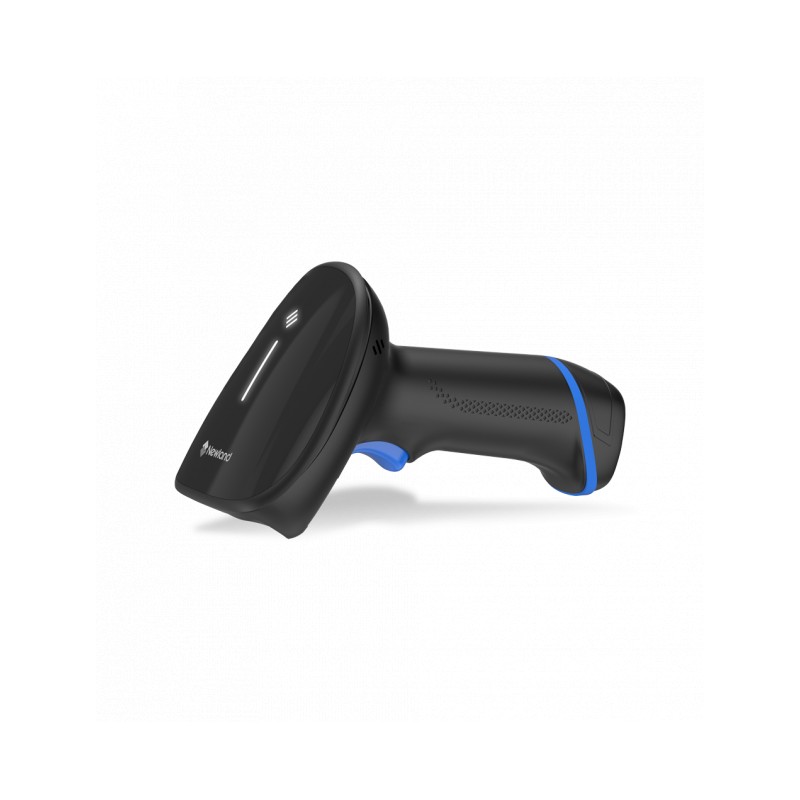

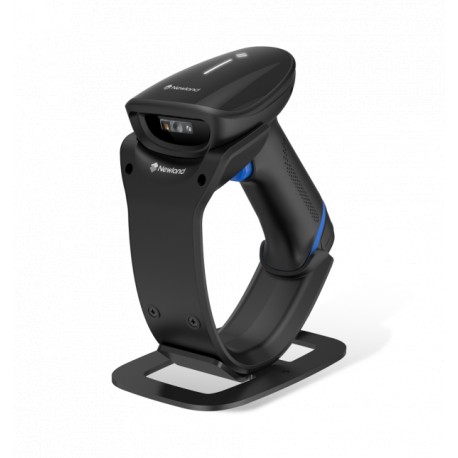

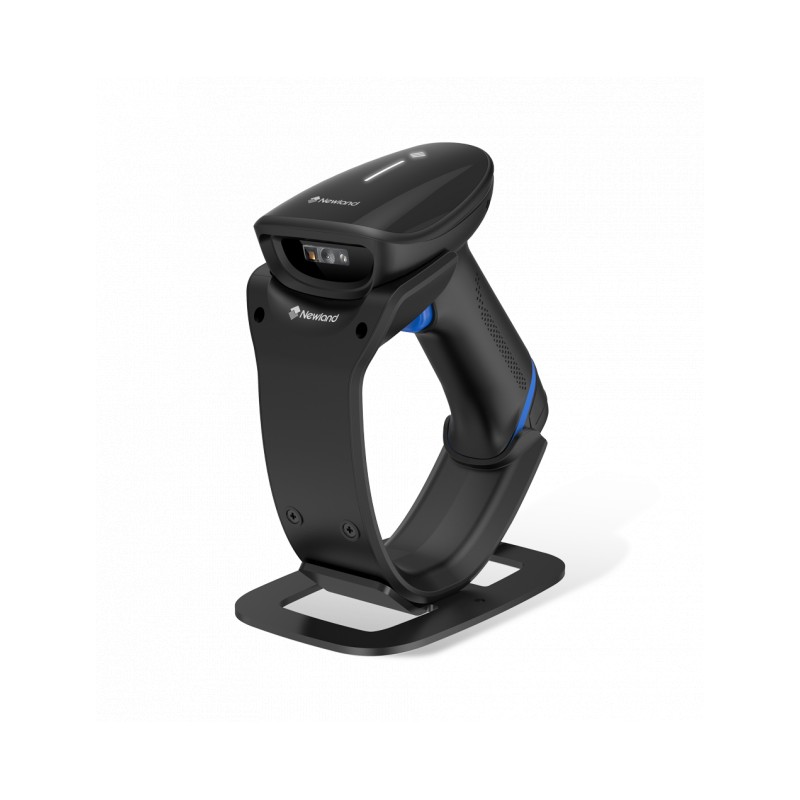

Newland's HR23 Dorada series consists of scanners equipped with Newland key decoding technology and a 640x480 CMOS imager. Easily capture all common 1D and 2D barcodes, even those with high density, damaged, blurred or distorted. This makes them ideal for applications in fast-moving industries such as retail.

Bluetooth interface. Includes charging stand.

1D: Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN- 8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey and GS1Databar(RSS)

2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417 and Micro QR

Reader: 640x480 CMOS

Interfaces: Bluetooth

Battery type: 2600 mAh lithium-ion battery

Estimated battery life: ≥16 hours of continuous operation (scan once every 6 seconds)

Estimated charging time: ≤6 hours

Input voltage: 5V DC ± 5%

Radio technology: Bluetooth 5.0

Wireless distance (max.)≥100 m (in open space)

Communication modes: Synchronous, asynchronous and batch modes

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -40 to 70°C (-40°F to 158°F)

Charging temperature: 0°C to 45°C (32°F to 113°F)

Humidity: 5% ~ 95% (non-condensing)

Dimensions (mm): Charging station: 140 x 90 x 144.5 mm

Dimensions (mm): Scanner: 117.5 x 67.5 x 144 mm

Weight: Charging base: 340.5 g

Weight: Scanner: 209 g
