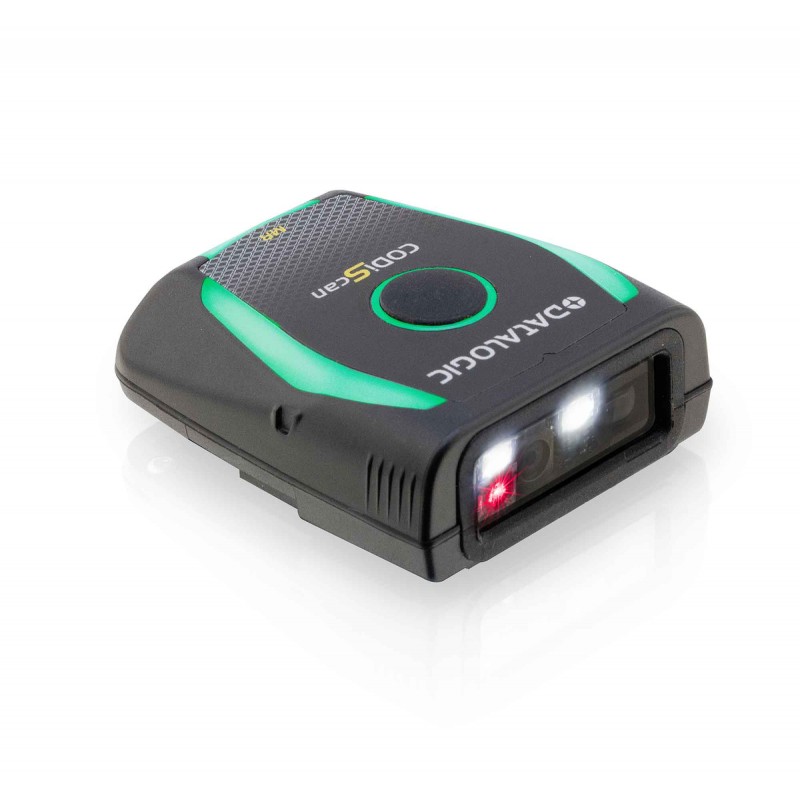

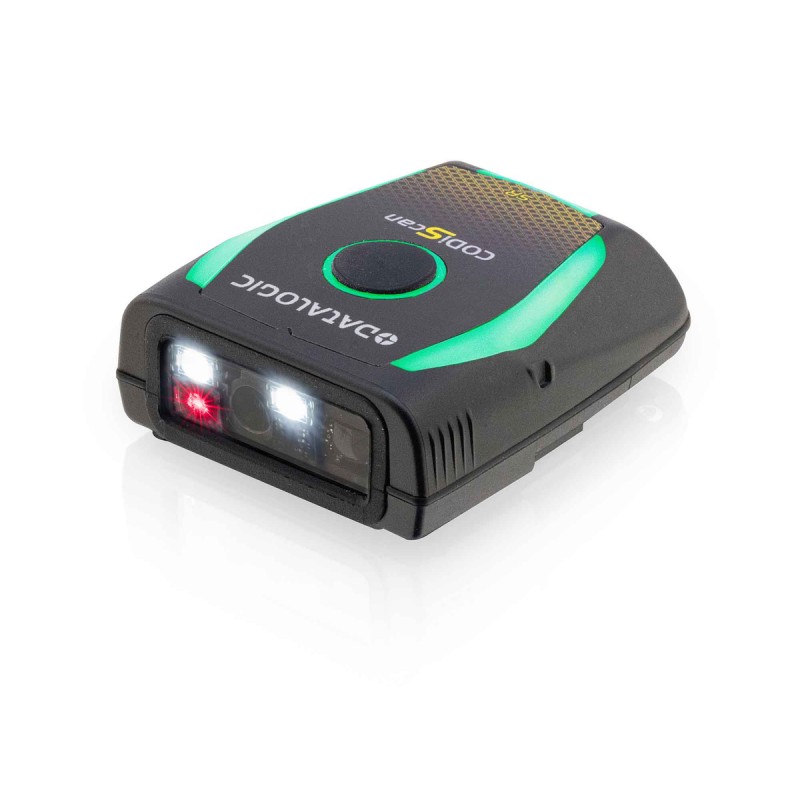

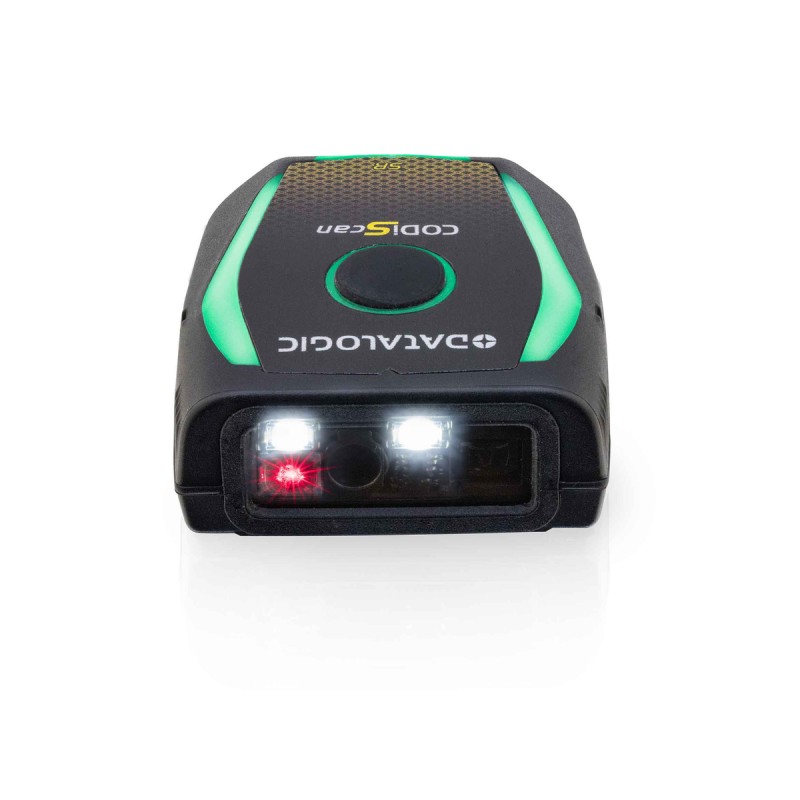

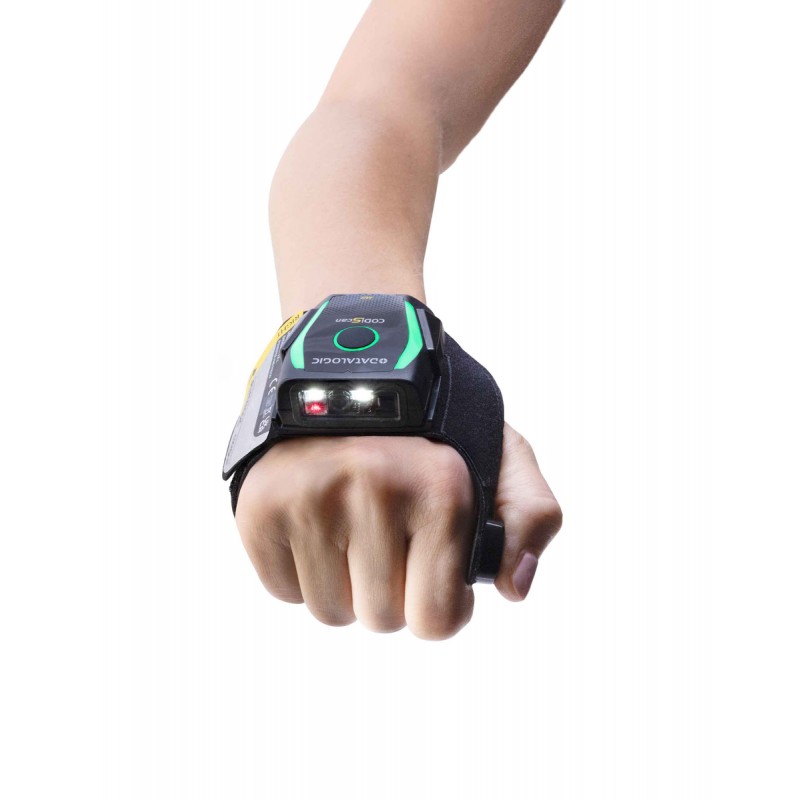

The Datalogic CODiScan barcode reader can scan 1D and 2D barcodes from a distance of up to 0.8 m, has an ergonomic and compact design and has Bluetooth and WiFi connectivity. Optionally, you can order the adjustable glove for fixing the reader (not included in the price).

Scan type: 2D

Scanning technology: Imager

Communication type: BT BLE/CLASSIC 5.2 class 1,2,3 Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0, 5.1, 5.2 Transmission range: 100 m / to the host (with Gateway inn connection depending on the host)

Wi-Fi (via Gateway) IEEE 802.11b/g/n, 1×1, 20 MHz channel bandwidth, 2.4 GHz

Wi-Fi security: WPA2/WPA3 Personal

WPA2 Enterprise PEAP, TLS, TTLS

MQTT client protocol v. 3.1, v. 3.1.1

WebSocket client

Resistance: IP54. Resistant to multiple drops from 1.5 m. Resistance to 1000 rolls from 0.5 m. Impact resistance >IK06

Barcodes: Code 39 - 3 mil: 13 to 22 cm / 5.1 to 8.6 in; Code 128 - 5 mil: 10 to 30 cm / 3.9 to 11.8 in; PDF417 - 5 mil: 12 to 19 cm / 4.7 to 7.5 in; DataMatrix - 10 mil: 10 to 28 cm / 3.9 to 11.0 in; EAN /UPCA - 13 mils: 4.5 to 74 cm / 1.7 to 29.1 in; QR Code - 15 mils: 4 to 37 cm / 1.5 to 14.5 in; Code 39 - 20 mil: 40 to 110 cm / 15.7 to 43.3 in

Operating temperature: -20 to 50 °C

Power supply: Rechargeable battery, lithium-Ion, 640 mAh

Dimensions: 53 x 44 x 19 mm

Weight: 44g

Color: Black/green
