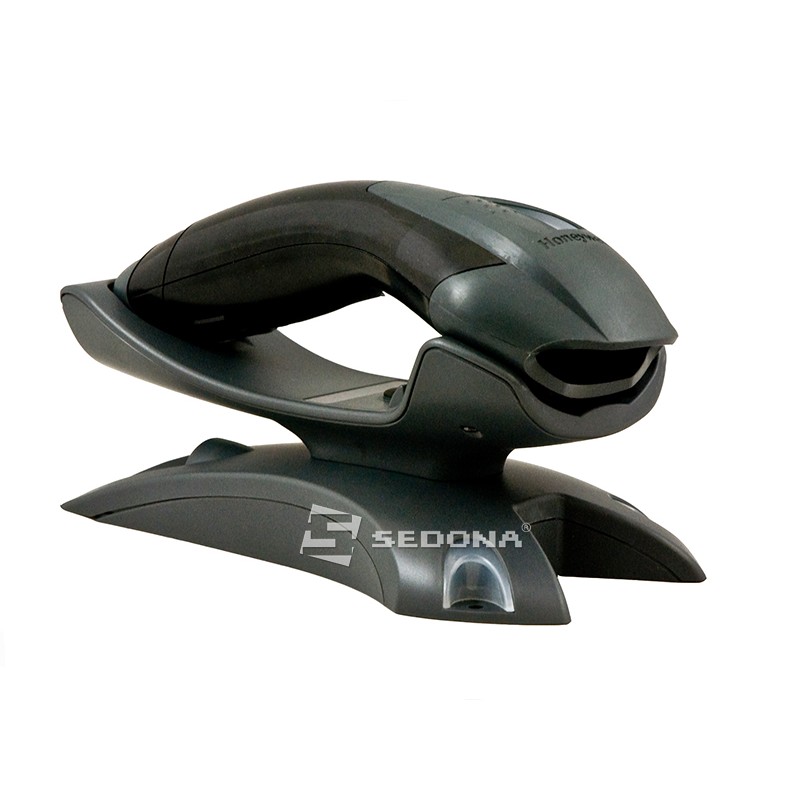

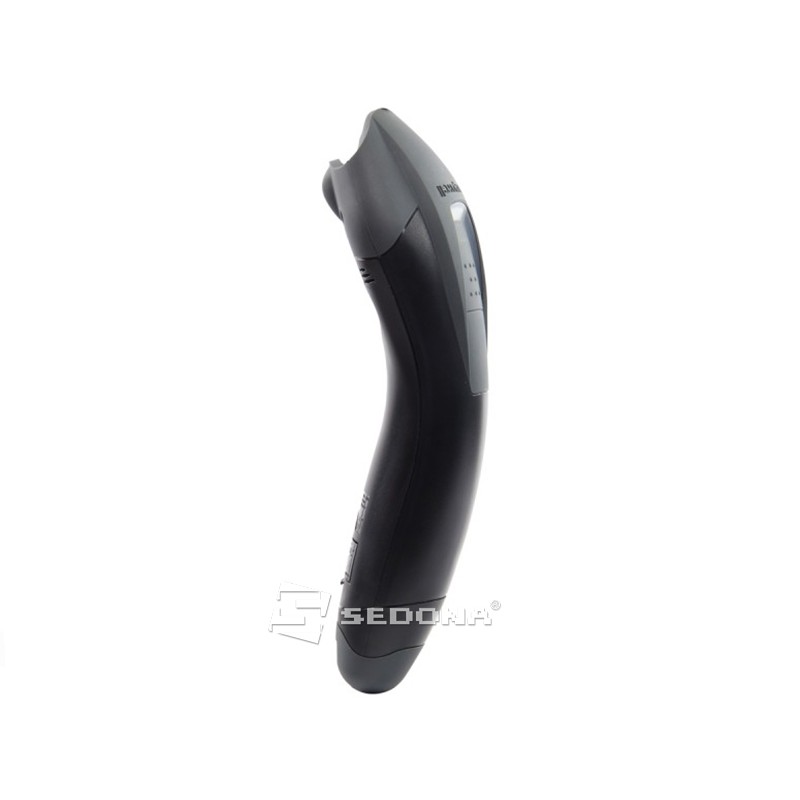

Honeywell’s Voyager™ 1202g hand-held laser barcode scanner incorporates the freedom of Bluetooth® wireless technology and offers a field-replaceable battery that can be quickly and easily exchanged.

Radio/Range: 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2: 10m (33’) line of sight

Data Rate (Transmission Rate): Up to 3 Mbps

Battery: 1800 mAh Lithium ion minimum

Number of Scans: Up to 45,000 scans per charge

Expected Hours of Operation: 12 hours

Expected Charge Time:  4 hours

Scanner: Voyager 1202g Charge and Communication Base: CCB00-010BT

Dimensions (LxWxH): 180 mm x 66 mm x 92 mm (7.1˝ x 2.6˝ x 3.6˝) 200 mm x 67 mm x 97 mm (7.9˝ x 2.6˝ x 3.8˝)

Weight: 180 g (6.3 oz) (includes battery) 185 g (6.5 oz)

Operating Power (Charging): N/A 5 W (1 A @ 5 V with power supply); 2.5W (0.5 A @ 5 V

with USB)

Non-Charging Power: N/A 0.625 W (0.125 A @ 5 V)

Host System Interfaces: N/A USB, Keyboard Wedge, RS232, IBM 46xx (RS485)

Scanner: Voyager 1202g Charge and Communication Base: CCB00-010BT

Operating Temperature: 5°C to 40°C (41°F to 104°F) Charging: 5°C to 40°C (41°F to 104°F);

Non-Charging: 0°C to 50°C (32°F to 122°F)

Storage Temperature with Battery: -5°C to 35°C (23°F to 95°F) -5°C to 35°C (23°F to 95°F)

Humidity 0 to 95% relative humidity, non-condensing 0 to 95% relative humidity, non-condensing

Drop Designed to withstand 30 1.5 m (5´) drops to concrete Designed to withstand 30 1 m (3.3´) drops to concrete

Environmental Sealing: IP42 IP42

Light Levels: 0 to 70,000 lux (6,500 foot-candles) N/A

Scan Performance

Scan Pattern Single scan line

Scan Speed (laser only): 100 scan lines per second

Scan Angle Horizontal: 30°

Print Contrast: 10% minimum reflectance difference

Pitch, Skew: 60°, 60°

Decode Capabilities Reads: standard 1D and GS1 DataBar symbologies. (Note: Decode capabilities dependent on kit configuration)

Warranty: 3 year factory warranty (Note: battery warranty is 1 year)
