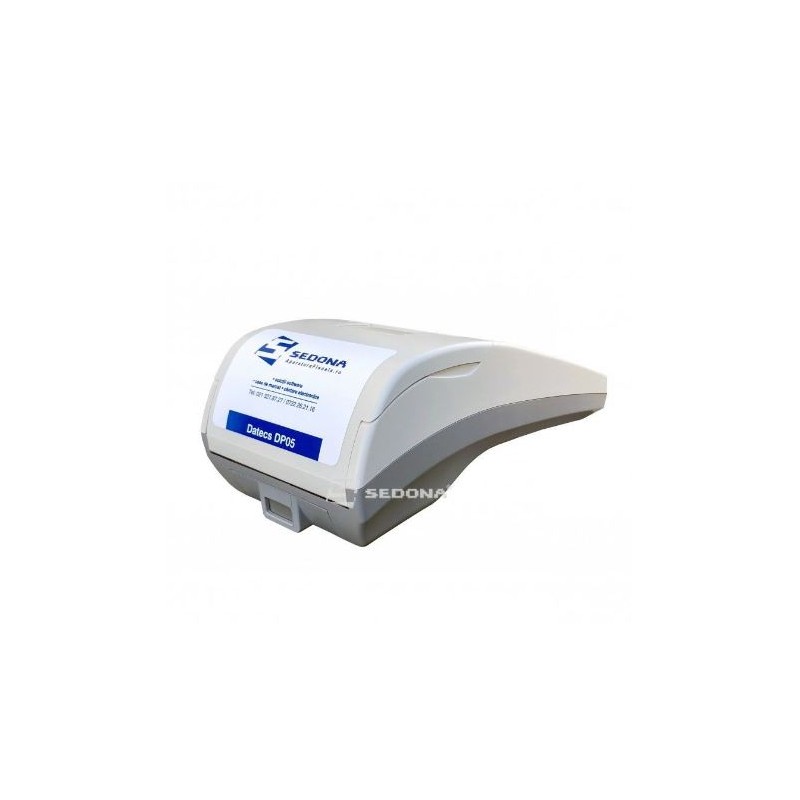

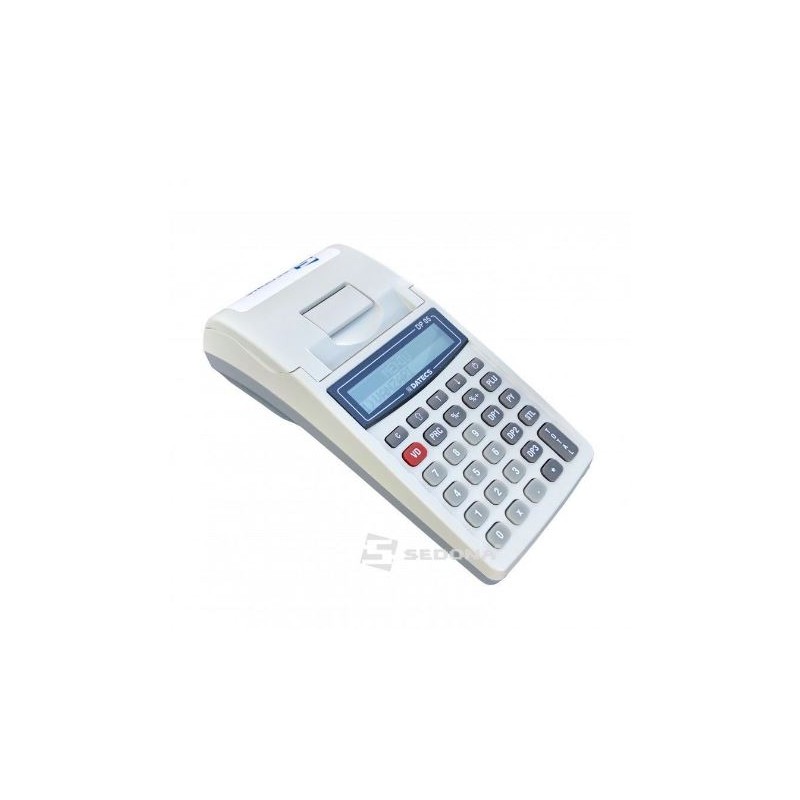

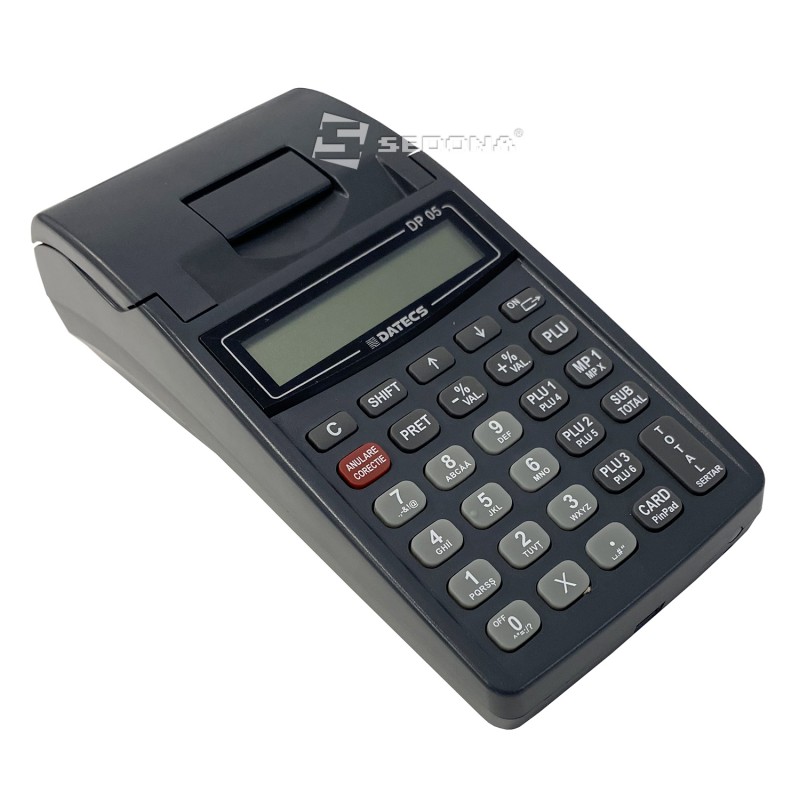

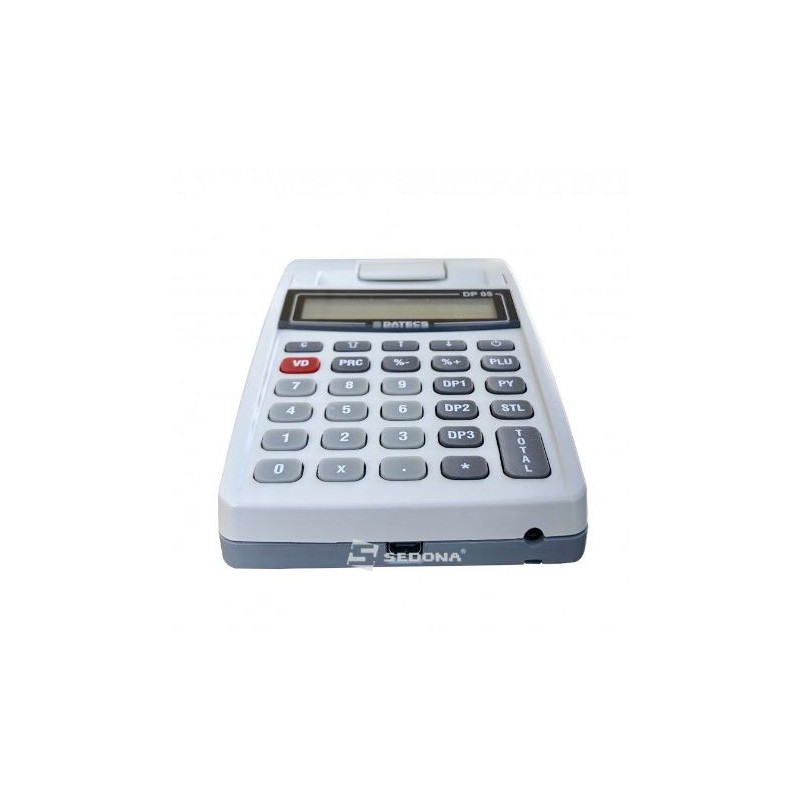

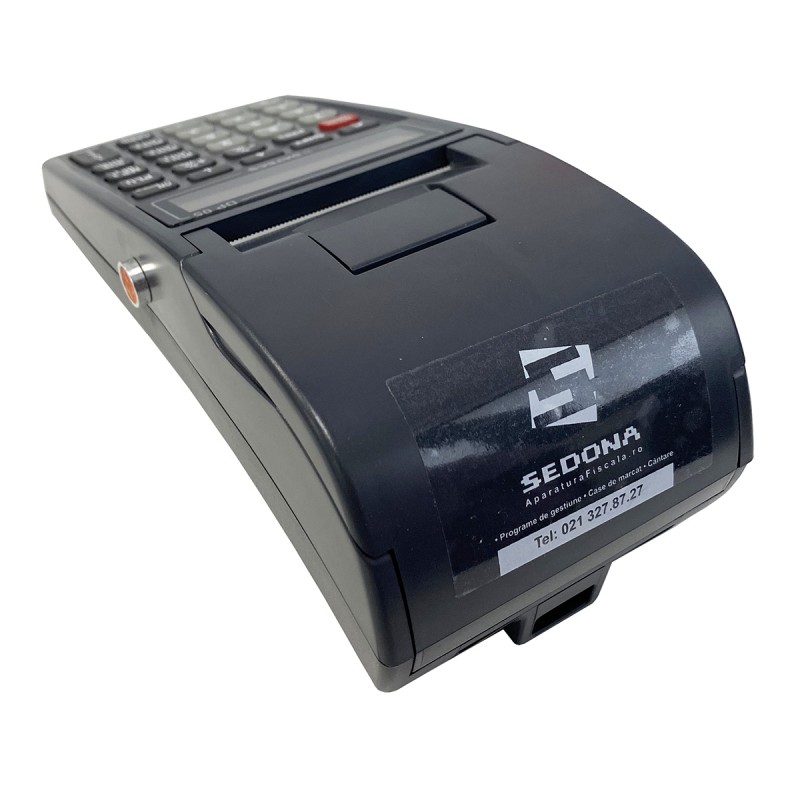

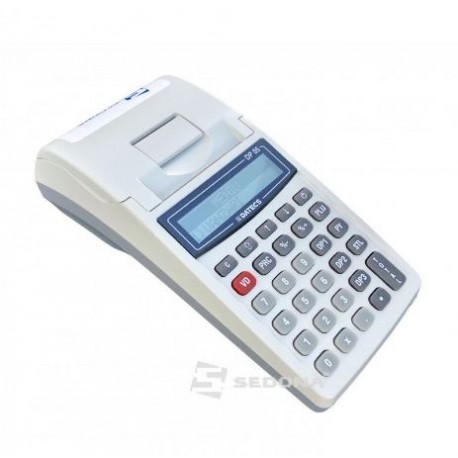

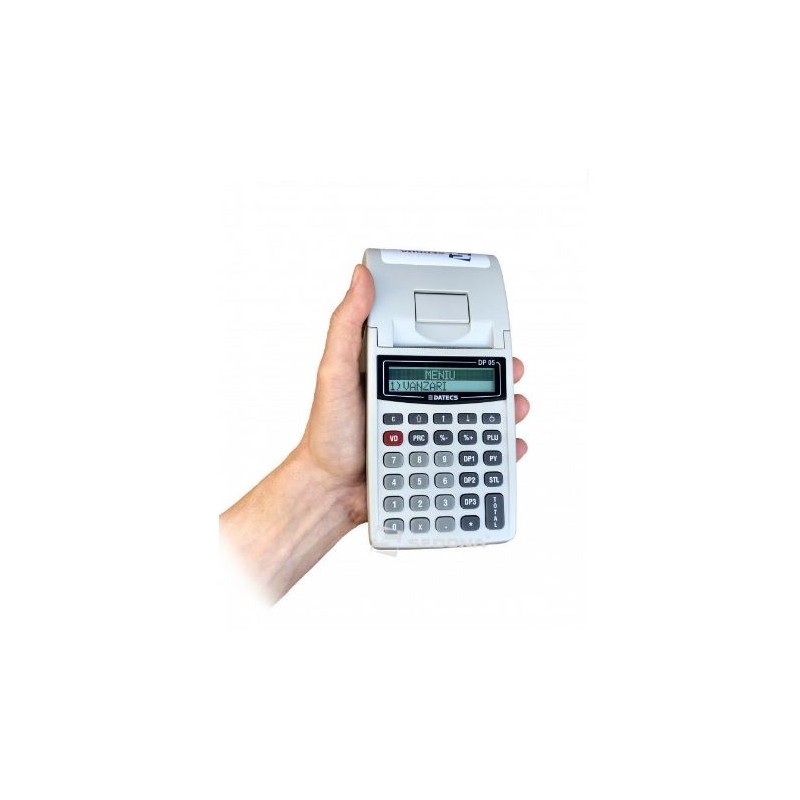

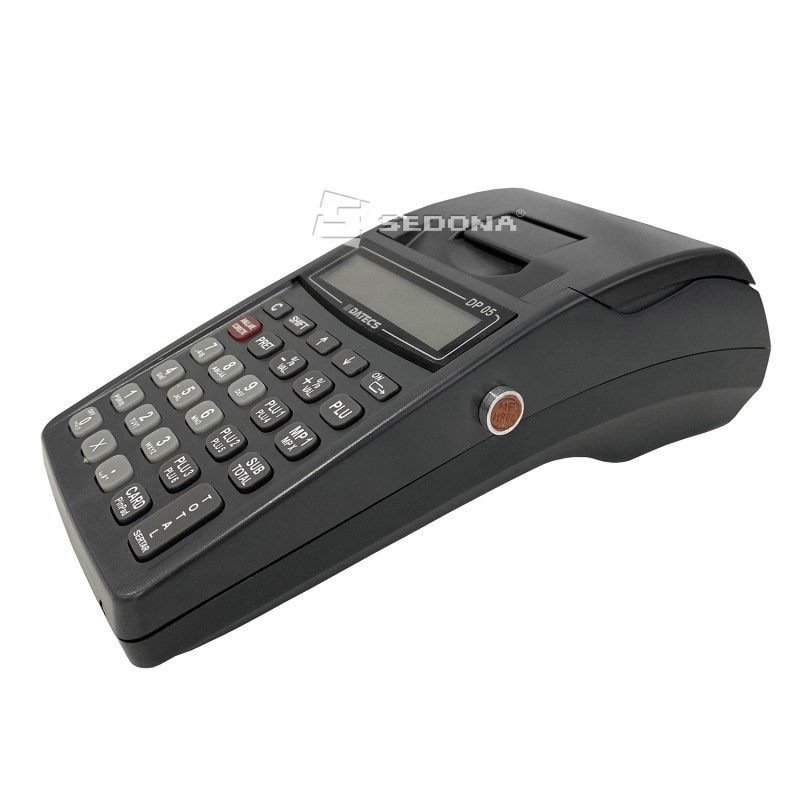

Datecs DP05MX portable cash register, without display for the customer. It can optionally be equipped with a built-in code reader. It is available in two connection options: GSM 2g/4g modem and WiFi. There is no dedicated port for the scanner (order a cash register with a built-in code reader). Battery included. Optional Bluetooth connection.

Available in the following connection options:

ANAF connection:

GSM 2g/4g modem (Recommended) – default delivery option
Wi-Fi

Bluetooth connection:

Without - the default delivery option
With Bluetooth

It uses paper rolls with a width of 58 mm and a length of 40 m (diameter 50 mm).

Power supply:
- Power supply-9Vdc/1A, input: 100-240Vac50-60Hz
- Accumulator - Li-Ion7.4V2000mA/h

Connection interfaces:
1 X mini USB - can be configured to work in PC connection mode, or can be used to download je and mf files.
▪ Incorporable barcode reader - optional
Wifi optional, Bluetooth optional

There is no dedicated port for the scanner (order cash register with built-in code scanner).

Maximum number of items that can be stored in the database - Up to 100,000

Item article length (PLU) - Up to 72 characters

Bar Code Types Attached to Items - EAN-13, EAN-8, UPC, Barcode Label Label

Types of fees - VAT rates: 5 programmable allowances, 1 share x VAT excluded; other taxes

Articles Groups - Up to 99

Departments - Up to 99

Number of operators - Up to 30

Payment Types - Cash (default); Fixed: cash back, bank card, voucher, credit, modern payment methods, gift vouchers, lunch vouchers; Programmable: others

AMEF modes of operation ▪ 1 / Sale (Registration); ▪ 2 / Reports X; ▪ 3 / Fiscal Reports; ▪ 4 / Programming; ▪ 5 / Rap.Info AMEF; ▪ 6 / PC connection; ▪ 7 / Service; ▪ 8 / Tests; ▪ 9 / Electronic Journal

Communication with RS: ▪ for programming, reading and issuing reports in the database of articles;

▪ to configure the AMEF parameters;

▪ for the issue of tax vouchers, closure reports and the issuance of non-tax documents.

Electronic Log - Yes (Storage on microSD card from 8GB to 32GB)

Fiscal memory - Non-volatile, 2500 daily tax reports

Cryptographic Mode - EAL 5+

Electronic Signature - X.509.V3, RSA 2048 bits

Characters printed per line - 42

WiFi - Optional

Thermal Printer - MLT-289 XS

Battery - Li-Ion 7,4V 2000mA / h

Print Speed ​​- 12 lines / second

Graphic Print (Graphic Logo, Barcode) - Supported Size 384 x 96 dots (max 384 x 336 dots); Barcode types: EAN8, EAN13, Code128, interleaved 2of5, QR code

Consumables - thermal paper ▪ Width 57 mm / ▪ Thickness from 60 to 72 μm / ▪ Roller diameter up to 50 mm

Operator Screen ▪ LCD graphic, 2 x 16 lines

Customer Display ▪ LCD graphic, 1 line x 16 characters (optional)

Keyboard - 29 keys

Power supply - Power supply - 9Vcc / 1A, input: 100-240V 50-60Hz

Internal clock battery / calendar (new battery) - Provides operation for 90 days after disconnecting from the power source

Operating Temperature and Humidity - From -10 C to + 45 C / Relative Humidity without Condensing 40-80%

Dimensions (width x length x height) mm - 88/194/66

Weight, kg - 0.525 kg (with paper roll included)

Interface for additional devices ▪ 1 x mini USB - can be configured to work on PC connection, or can be used to download files is mf.

▪ Built-in bar code reader - optional

▪ Built-in GSM / GPRS modem (Quecattel M66, SAR body 1.683W, GSM 900/1800 MHz)

Mandatory "Keep the bill" and "Consumer protection" bills are delivered free of charge if requested.

Made in Bulgaria.
