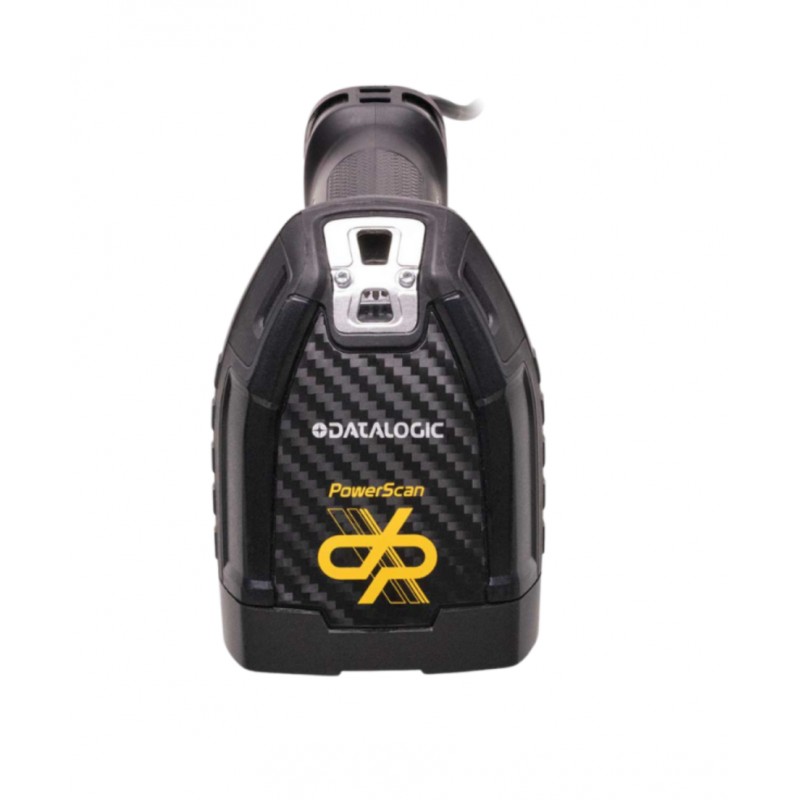

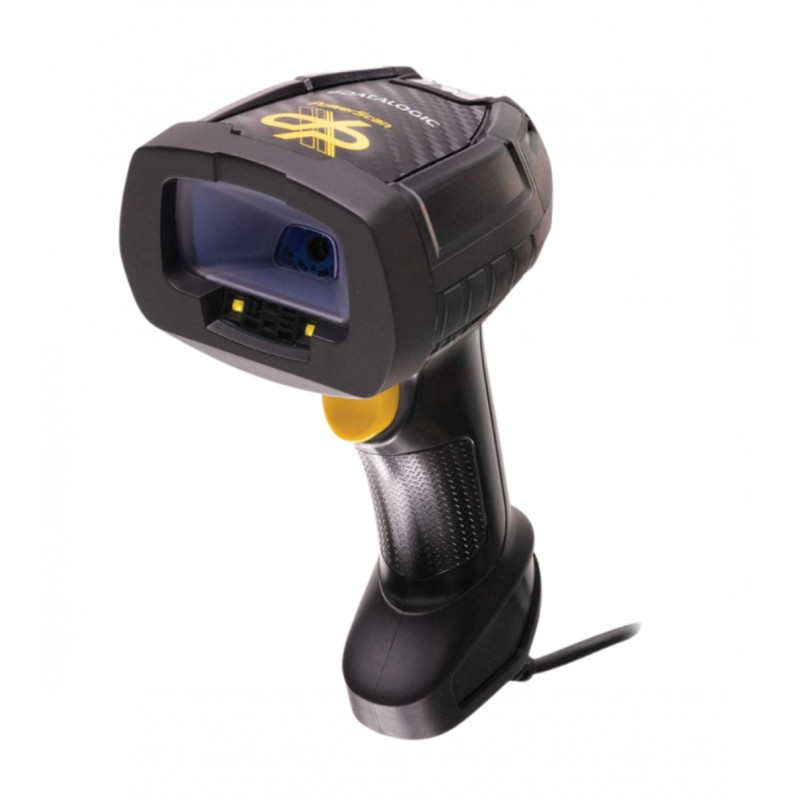

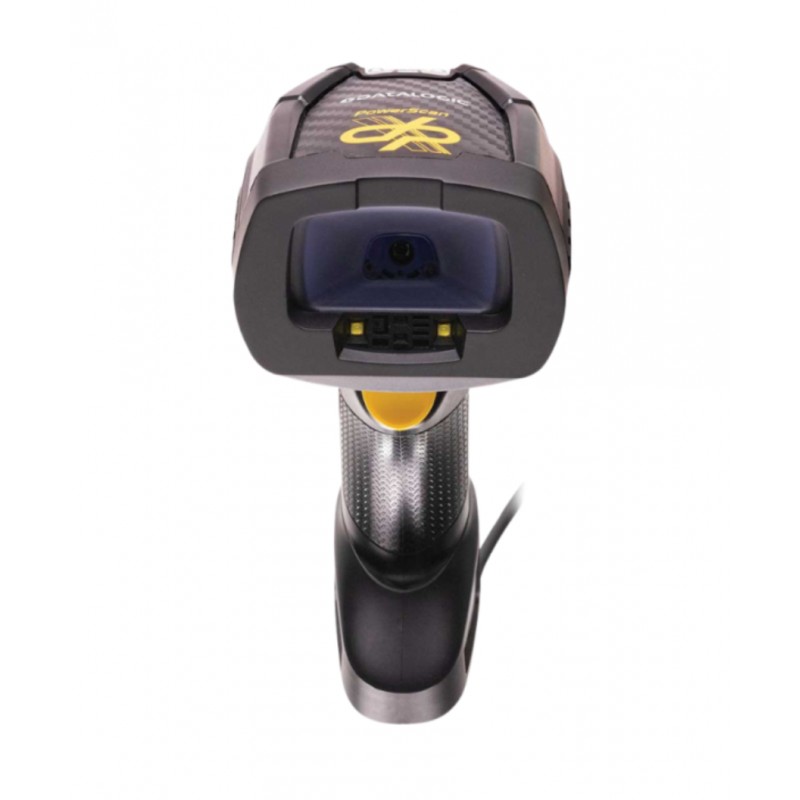

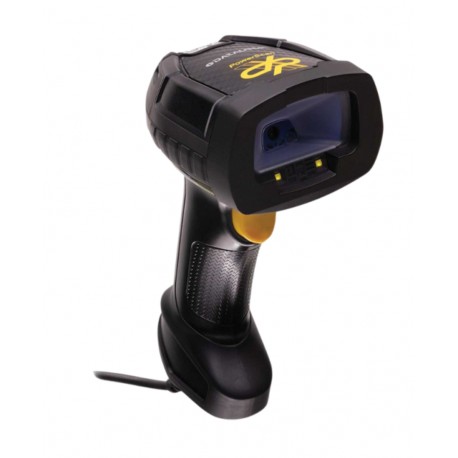

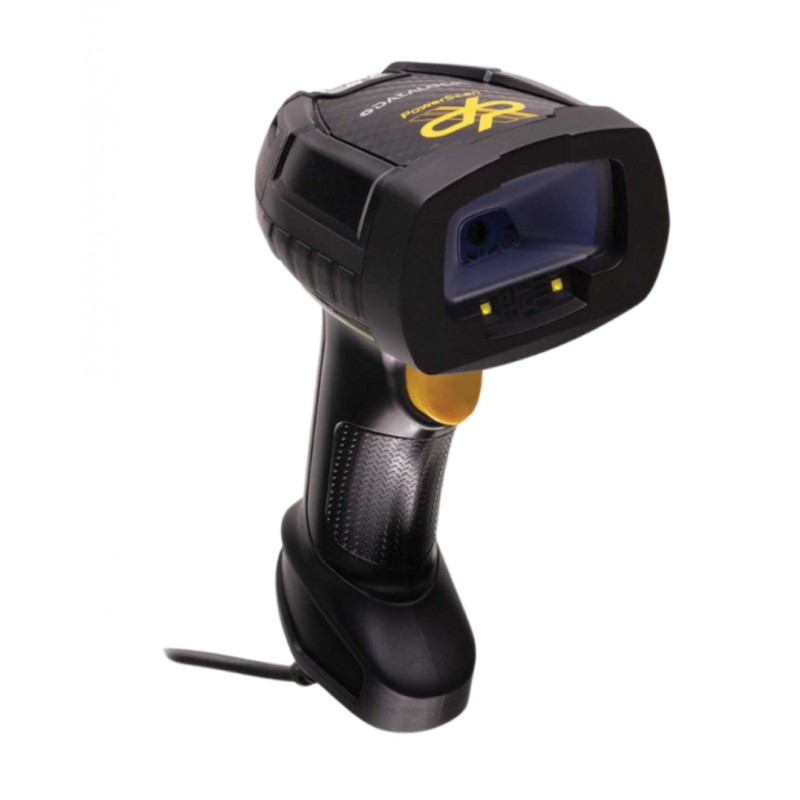

The PD9630 DPX scanner from Datalogic represents a well-balanced ergonomic solution for industrial use. In addition to its ability to read 1D and 2D barcodes omnidirectionally, it is excellent for direct-to-part marking (DPM) applications, where codes are applied directly to objects by various methods, such as laser engraving, jet printing by ink or electrochemical etching. The support is not included in the price, it can be ordered optionally.

Connectivity: Wired

Scanning technology: Omnidirectional

Connection interface: USB

Resistance: Industrial, protection class: IP65 and IP67

Resistance to falls from 2.5m at temperatures of 20 °C

Resistance to falls from 2m at temperatures of -20 °C

Resistance to electrostatic discharge: 20 kV air

Humidity - non-condensing: 0 - 95%

Barcodes: 1D: Automatically reads all standard 1D codes, including linear GS1 DataBar

2D: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codes; Dot Code

Postcodes: Australian Post, China Post; IMB; Japanese Post, KIX Post, Planet Code; Portuguese Post, Postnet; Royal Mail Code (RM4SCC), Swedish Post

Stacked barcodes: Australian Post; China Post; IMB; Japanese Post; KIXPost; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Operating temperature: -20°C – +50°C

Motionix technology

3GL system - sound and light alerts for successful scans

Charging time up to 95% (12 VDC) in 2.5 hours

Charging time up to 100% in 3.2 hours, external power

Reads/load: 80,000

Dimensions: 19.8 x 14.0 x 7.9 cm

Weight: 316.2 g

Color: Black/yellow
