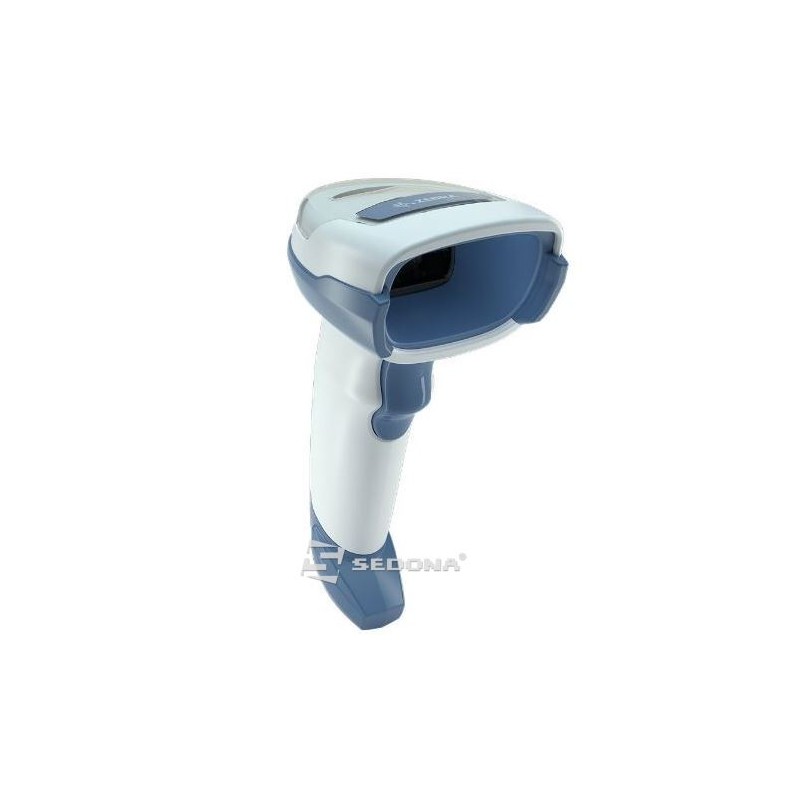

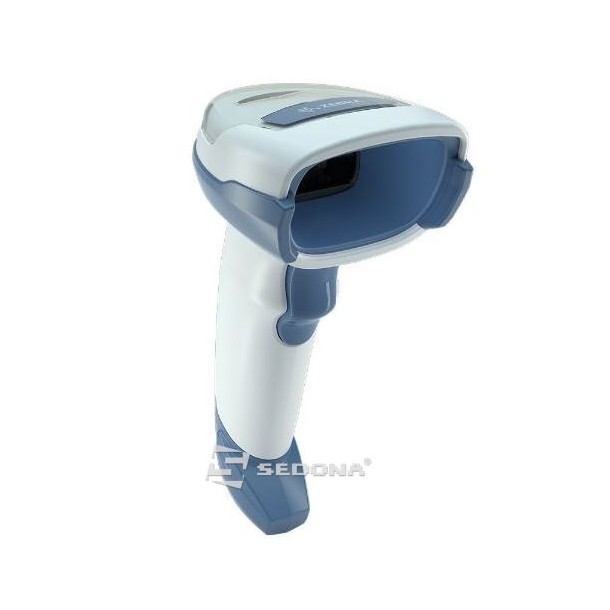

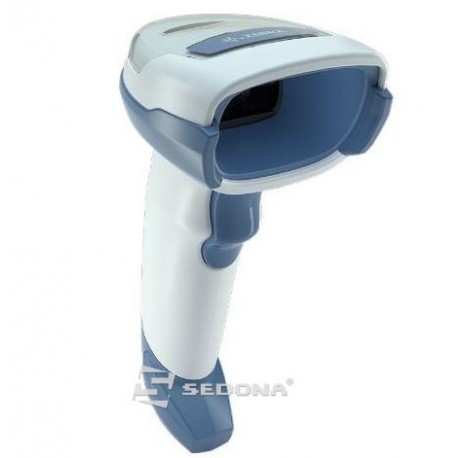

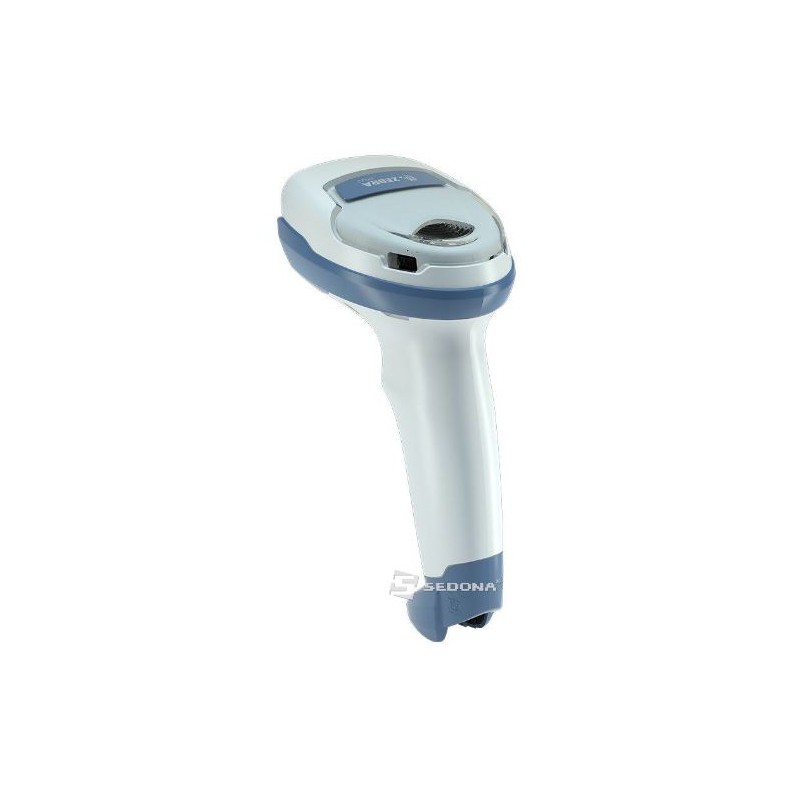

The Zebra DS2208-HC barcode reader is intended for use in the medical field (hospitals, clinics, laboratories, pharmacies) and can decode all types of 2D barcodes that can be found in this field, from digital codes to printed codes. on ampoules and needles.

The interface cables are ordered separately.

Input Voltage Range: 4.5 to 5.5 VDC Host

Powered; 4.5 to 5.5 VDC External Power Supply

Color: white/blue

Supported Host Interfaces: USB

Keyboard Support Supports: over 90 international keyboards

User Indicators: Direct Decode Indicator; good decode LEDs; Rear view, LEDs; beeper (adjustable tone and volume)

Motion Tolerance: (Handheld)Up to 5 in./13 cm. per second for 13 mil UPC

Swipe Speed (Hands-Free) Up to 30.0 in./76.2 cm. per second for 13 mil UPC

Light Source Aiming Pattern: Linear 624nm Amber LED

Illumination: (2) 645nm Super-Red LEDs

Imager Field of View: 32.8° H x 24.8° V Nominal

Image Sensor: 640 x 480 pixels

Contrast: 25% minimum reflective difference

Tolerance: +/- 65°; +/- 65°; 0-360°

Code 39 - 4.0 mil; Code 128 - 4.0 mil;

Data Matrix - 6.0 mil; QR Code - 6.7 mil

Operating Temperature: 32.0° to 122.0° F/0.0° to 50.0° C

StorageTemperature: -40.0° to 158.0° F/-40.0° to 70.0° C

Humidity: 5% to 95% RH, non-condensing

Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete

Environmental Sealing: IP42

Bluetooth: Radio Standard Bluetooth Version 4.0 with BLE: Class 2 33 ft. (10.0m), Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps

Battery Type: 2,400 mAh Li-Ion Battery

Scans Per Battery Charge:

100,000 scans at 60 Scans per Minute or 60,000 scans at

10 Scans per Minute

Operating Time: Per Full Charge 100.0 Hours

Dimensions: 16.5 cm. H x 6.6 cm. W x 9.9 cm. D

Weight: 5.7 oz. / 161.6 g
