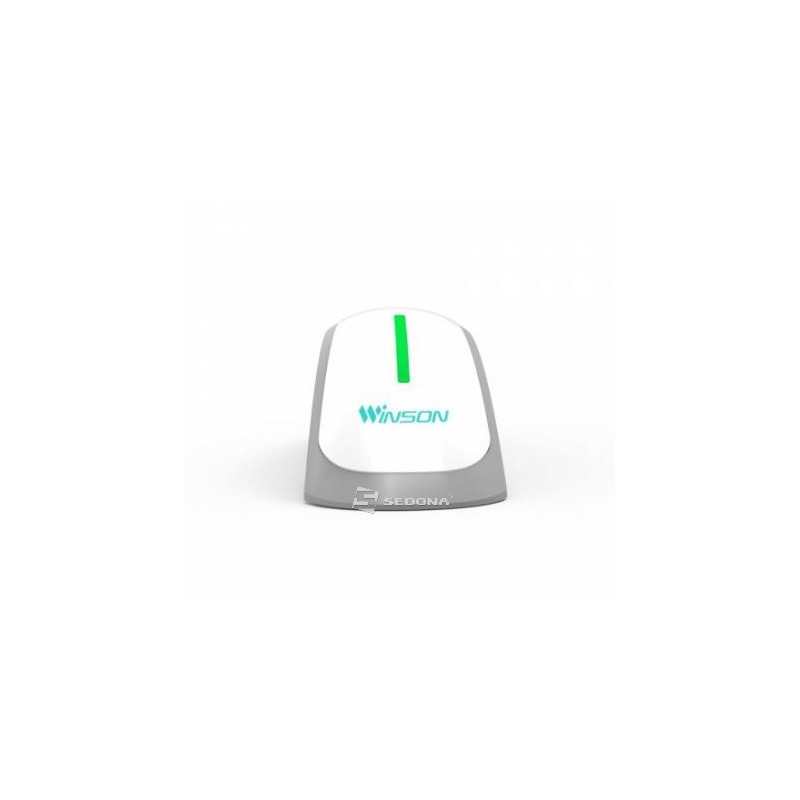

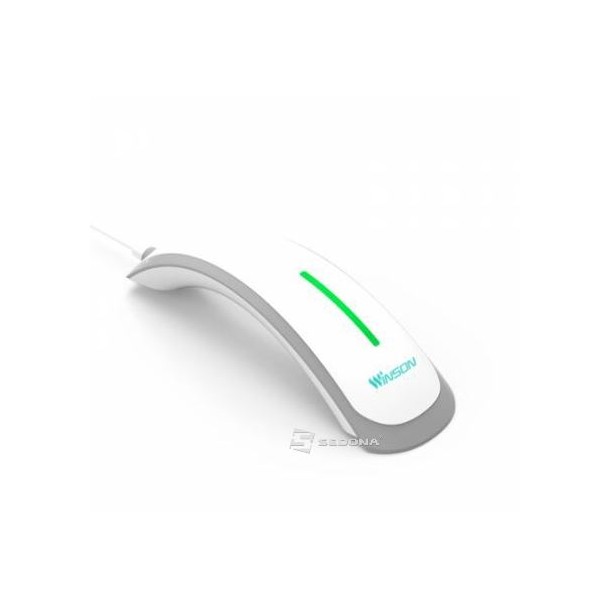

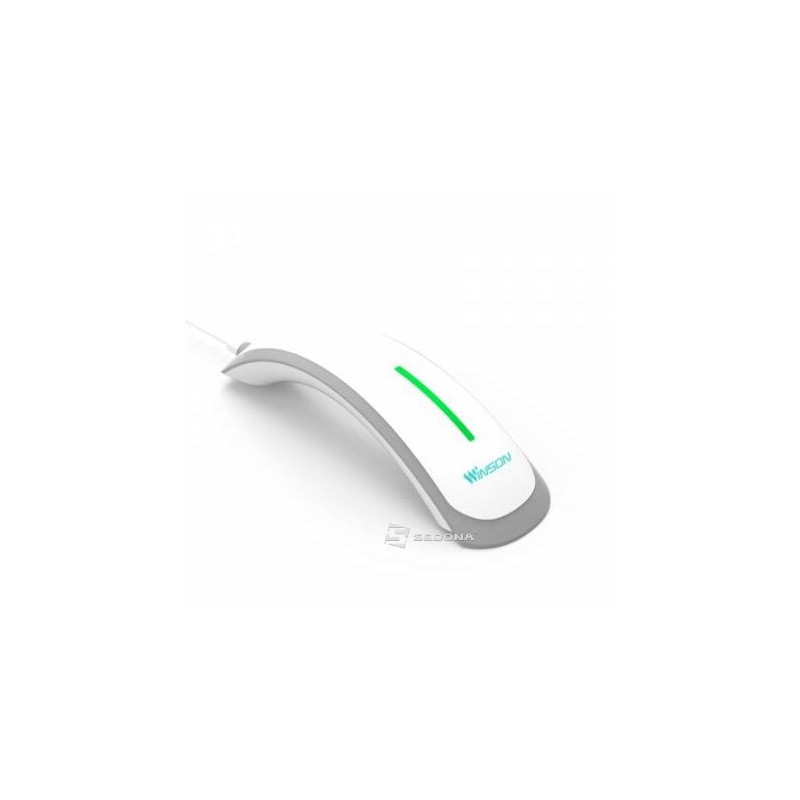

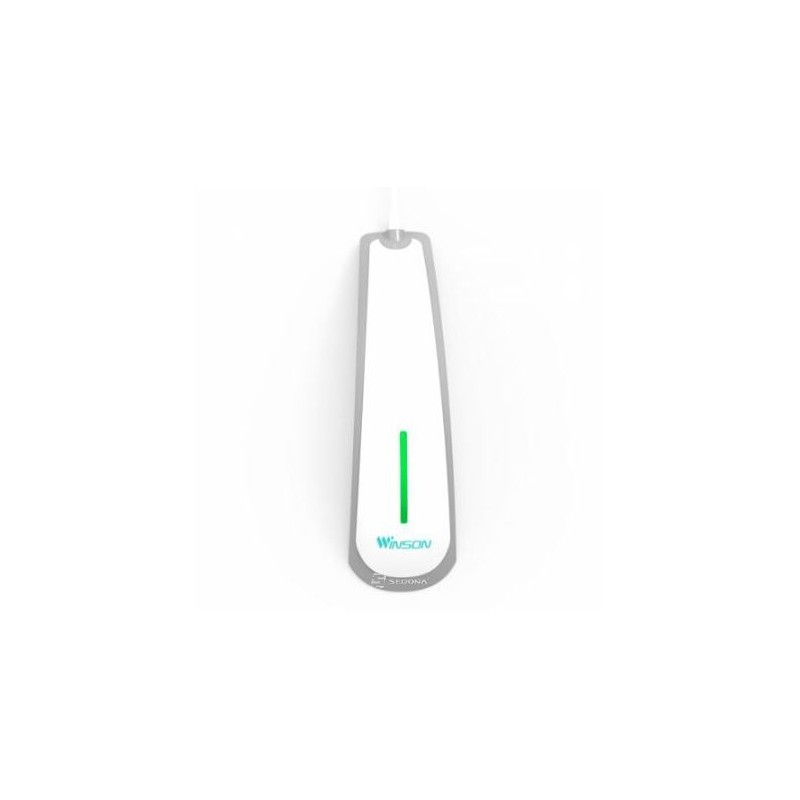

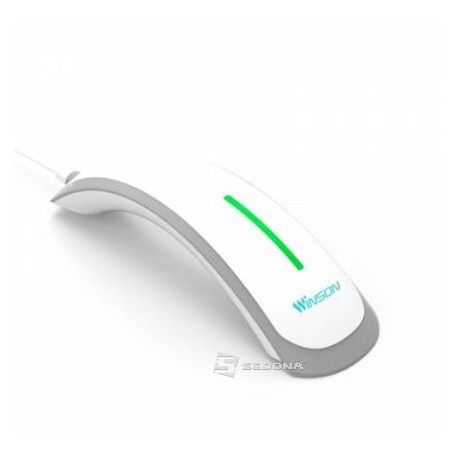

WNI-9220 2D barcode scanner with 20% contrast ratio helps to read 1D and 2D paper code, screen code, color code, damaged code, fold code and reflective code.

Interface: USB

Photo sensor: CMOS linear sensor

Sensor resolution: 1280x800 pixels

Light source: White LED*1

Aim light source: Red Bar LED

1D：UPC-A/UPC-E；EAN-8/EAN-13；Code128；Code39；Code93；Code32；Code11；Codabar；Plessey；MSI；Interleaved 2 of 5；IATA 2 of 5；Matrix 2 of 5；Straight 2 of 5；Pharmacode；RSS-14；RSS-14 Expanded；RSS-14 Limited；Composite Code-A；Composite Code-B；Composite Code-C；

2D： PDF417；Micro PDF417；Data Matrix；QRcode；Micro QR；Aztec；MaxiCode

Temp: -20°- 65°C(operation) ， -30°- 70°C (storage)

Humidity: 5 - 90% (operation),5 - 90% (storage)

Shock drop test: 1.5m drop onto concrete surface

Dimension (L*W*H): 90mm*67mm*168mm(L*W*H)

Weight: 120g
