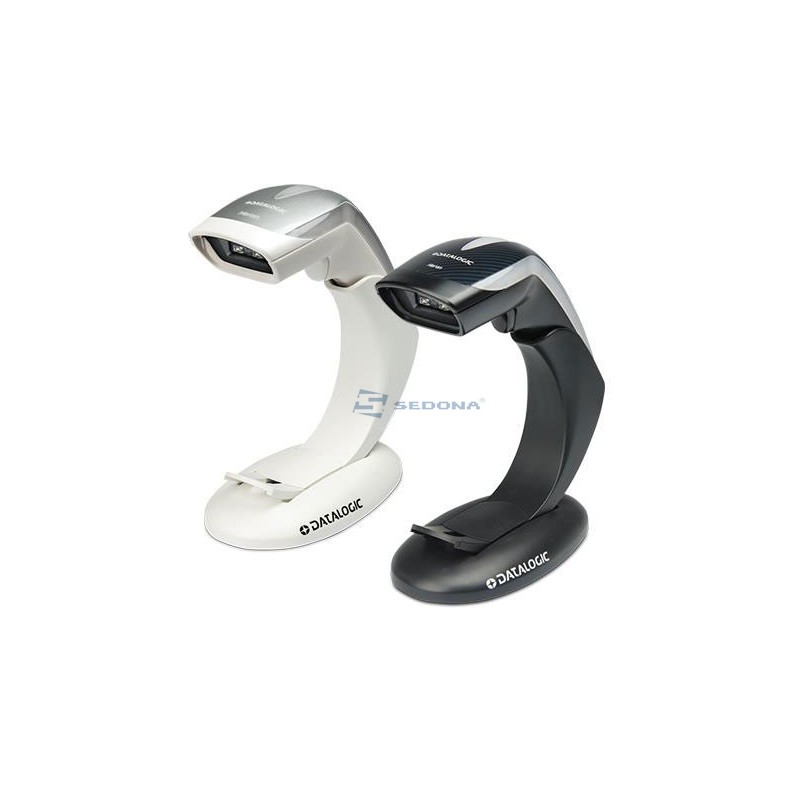

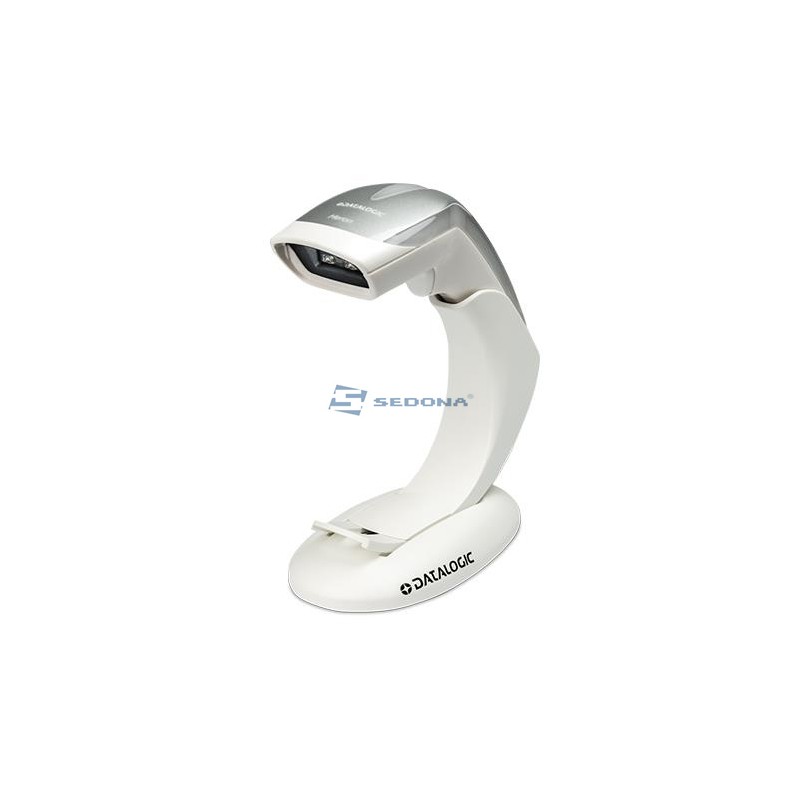

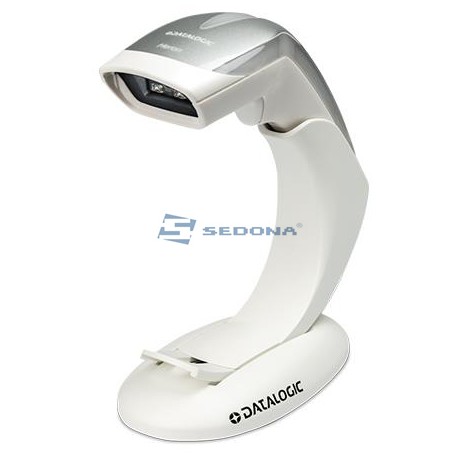

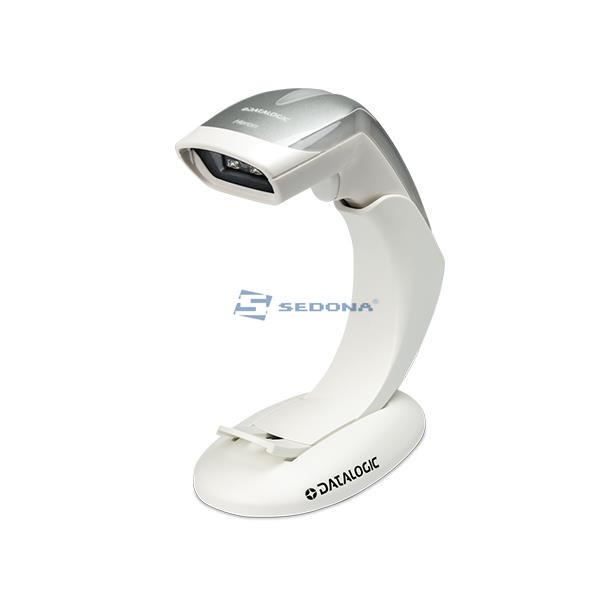

The Heron HD3430 2D area imager completes the Heron family offering by adding 2D reading capability to the existing Heron readers and providing customers with an unmatched choice regarding price and bar code reading needs.

Outstanding reading performance on 1D, 2D, postal codes, stacked, composite codes and Image capture.

Polyphonic speaker for a wide variety of choices regarding audio feedback.

Automatic switching between handheld and hands-free operations.

Included Accessories: Stand

Cables Included: 1 x USB cable - external

Compliant Standards: RoHS, IP40, IEC 62471

Interface Type: USB

Minimum Bar Width: 4 mil

Scan Element Type: 2D imager

Light Source Wave Length: 650 nm

Scan Mode: Single-pass

Max Working Distance: 15.7 in

Skew (Degrees):  60

Pitch (Degrees):  65

Print Contrast Signal (PCS): 15%

Decode Capability: EAN/JAN, Code 93, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, PLANET, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, EAN-UCC Composite

TTL Decoding: Decoded

Connectivity Technology: Wired

OK Notification: Beeper, LED indicator

Features: Triggered

Min Operating Temperature: 32 °F

Max Operating Temperature: 122 °F

Humidity Range Operating: 5 - 90% (non-condensing)

Drop Specification: 5 ft to concrete

Electric Current Required: 500 mA (peak), 300 mA (typical)

Type: Barcode scanner - handheld

Color: White/Black

Interfaces: 1 x USB - Type A

Dimensions (WxDxH) 2.7 in x 6 in x 6 in

Weight:  5.29 oz

Service & Support: 5 years warranty

Service & Support Details: Limited warranty - 5 years
